Page 1: Operation Instructions
Rice Lake Platform/Fitness Scale 140-10-7N Series Software Revision 11300 Operation Instructions To be the best by every measure 112174... -
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department @ 2011 Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Series 140-10-7N, software revision 11300... - Page 4 Platform Fitness Operation Instructions...
-
Page 5: Introduction

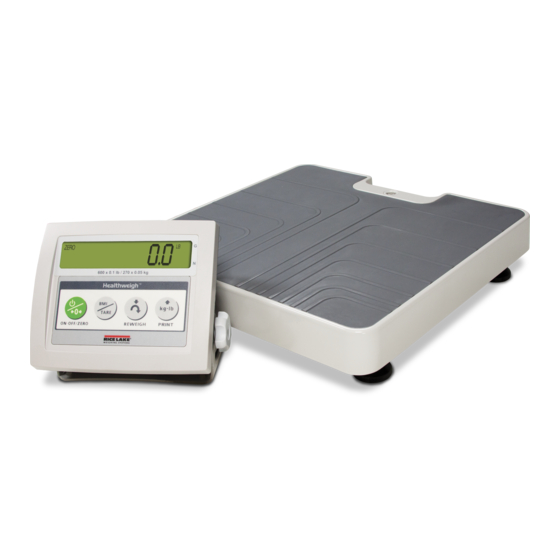

Introduction The Rice Lake Platform Fitness Scale is ideal for use in fitness centers, wrestling and boxing facilities, and weight management facilities. The scale is durable and is designed to provide accurate, reliable and repeatable weight measurements and has features that enable a fast and convenient weighing process. The Platform Fitness Scale is an NTEP-certified legal-for-trade device that provides the highest possible accuracy when weight is a critical factor. -
Page 6: Scale Assembly
AC Power Connections The Rice Lake Platform Fitness Scale has a 120 VAC adaptor or 230 VAC adaptor to use when power is readily available. The AC power adaptor plugs into the back of the indicator as shown in Figure 2-1. - Page 7 The Rice Lake Platform Fitness Scale is capable of running its internal sealed lead-acid rechargeable battery if no additional power source is available. Battery life is approximately 75 hours. If the indicator is showing on LO Bat the display, recharge the battery or connect the scale to an AC power source as soon as possible for accurate weighing.
-
Page 8: Scale Operation
Scale Operation The display has various front panel keys. They are shown below. Figure 3-1. Front Panel Display Keys Name Function ON-OFF/ZERO ON-OFF - Switches the scale on or off ZERO - Clears weight off the scale and returns it back to zero. BMI/TARE BMI - Enables the user to access the BMI (Body Max Index) function - Does not function in legal-for-trade operation. -
Page 9: Using The Tare Function
Using the Tare Function You can use the tare function for deducting extra weight (such as medical equipment) in a weighing operation. Use the following steps to use the tare function. 1. With the scale set to , place the extra load on the scale. The display shows the weight with the Gross (G annunciator) lit. -
Page 10: Rs-232 Communication
The scale comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 2-1 on page 2 shows where the RS-232 connection is. -
Page 11: Maintenance
Maintenance The following section provides instructions for maintaining and cleaning the Platform Fitness scale. Maintenance operations other than those described in this section should be performed by qualified service personnel. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact qualified service personnel. -
Page 12: Rice Lake Platform Fitness Scale Specifications
Rice Lake Platform Fitness Scale Specifications Power 120 VAC-9VDC-60Hz / 230 VAC-9VDC-50Hz Battery Type Sealed lead acid battery Battery Use 75 hours Automatic power-off can be configured Data Communications RS-232 with RJ-45 jack Selectable baud rate, default - 9600 8 bits... -
Page 13: For More Information
US sales and product information at prodinfo@ricelake.com • International (non-US) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Platform Fitness Operation Instructions - Rice Lake Platform Fitness Scale Specifications... -
Page 14: Rice Lake Platform Fitness Scale Limited Warranty
Rice Lake Platform Fitness Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years. - Page 16 PN 112174 09/11...
