- Page 1 TP Series Software Development Kit Operation Manual 164106...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. TP Series...
-
Page 5: Introduction

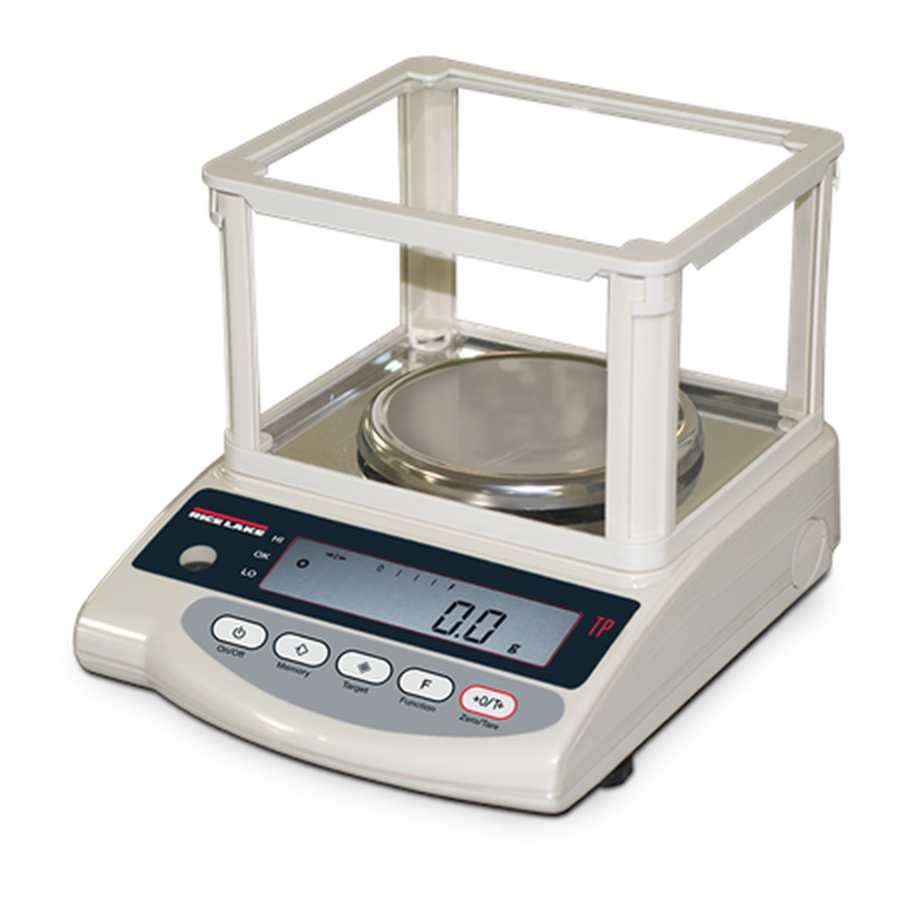

Introduction This is a precision instrument equipped with exacting mechanisms in a compact body. The TP Series provides enhanced functions, including a counting mode for stock control of parts, a percentage mode for comparative measurements given in percentages, and a limit function for measuring constant quantities by consecutive weighings. - Page 6 Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility. WARNING...
-
Page 7: Standard Features
1.2 Standard Features • External weight calibration • Large 16.5 mm high liquid crystal backlit display • Selectable modes: weight, unit, count and percentage • 12 units of measurement • Mono-Metal Tuning Fork Sensor (MMTS) provides quick response and stability •... -
Page 8: Installation
Installation The following section contains information regarding the installation of the TP Series balance. 2.1 Setup and Checking of Functions Invoking the Function: press and hold down the Key until the Function indicator displays “ ,” then release the key. The function setup mode is ... -
Page 9: Description Of Functions
Terminating the function selection: press the key. The balance Target terminates the function setup and returns to measurement mode. Figure 2-5. Terminating the Function Selection 2.2 Description of Functions Setup of (t1_Hong Kong)* measurement units ►Upper right ... -
Page 10: Interface Section
None (7-digit numeric format) is specified. Parity Even * Denotes a factory-setting ** The data interval in continuous output mode is 0.1 to 1 second (the interval varies depending on weighing conditions and other factors). TP Series... -
Page 11: Input/Output Functions
2.3 Input/Output Functions The following addresses input and output functions of the TP Series Balance. 2.3.1 Terminal Numbers and Functions Terminal Number Signal Input/Output Function & Remarks EXT.TARE Input External tare subtraction** Output HIGH (when balance is powered up) Input... -
Page 12: Connection Between Balances And Personal Computers
Figure 2-8. Sample connection with PC9801 2.3.3 Interface Specifications Transmission System - Serial transmission with start-stop synchronization Transmission rates - 1200/2400/4800/9600 bps. Transmission codes - ASCII codes (8-bit) Signal levels - Compliant with EIA RS-232C HIGH level (data logic 0) +5 to +15V TP Series... -
Page 13: Output Data
LOW level (data logic 1) -5 to -15V 10. One-Character bit configuration: Start bit: 1 bit Data bit: 8 bits Parity bit: 0/1 bits Stop bit: 2 bits 11. Parity bit - none/odd/even Logic “1” Logic “0” Data bit Stop bit Start bit Parity bit (may be omitted) - Page 14 Pound Troy Ounce Pennyweight ► Grain (lower right) tael (Hong Kong) ► tael (Singapore, Malaysia) (upper right) ► tael (Taiwan) (lower right) Momme Tola (SP) Percentage Pieces Figure 2-10. Units 10 TP Series...
-
Page 15: Input Commands
Result of Judgement Result of judgement when operating the balance with the limit function (S1: one character). Code Description LO (Low) OK (Good) HI (High) (SP) No status specified Table 2-4. Result of Judgement Status (S2: One Character) Code Description Data stable Data unstable Data error (data other than S2 is invalid) - Page 16 ** Once any command from [O0] to [O9] is exectued, the balance runs that function until another command is entered. However, if the balance is switched off and on again, the output control is reset to the initial function (function set value). 12 TP Series...
-
Page 17: Tp Series Limited Warranty
MADE IN WRITING AND SIGNED BY A CORPORATE OFFICER OF AND THE UYER © Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved. RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 • USA Installation 13... - Page 18 Notes 14 TP Series...
