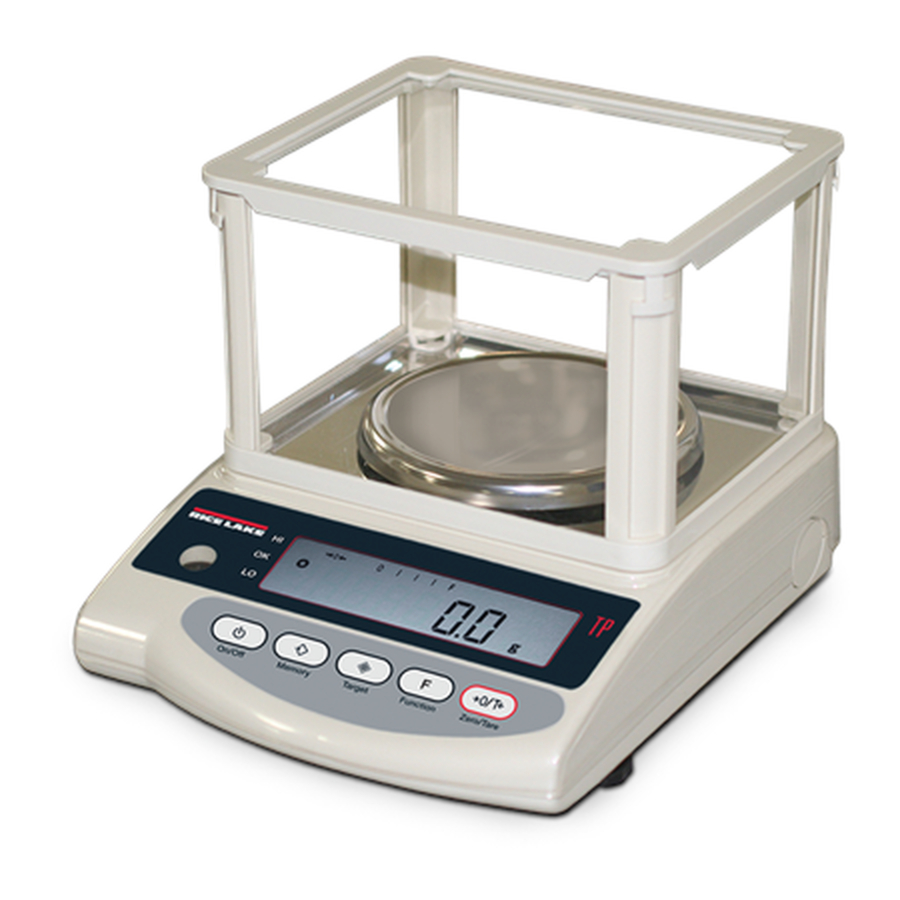

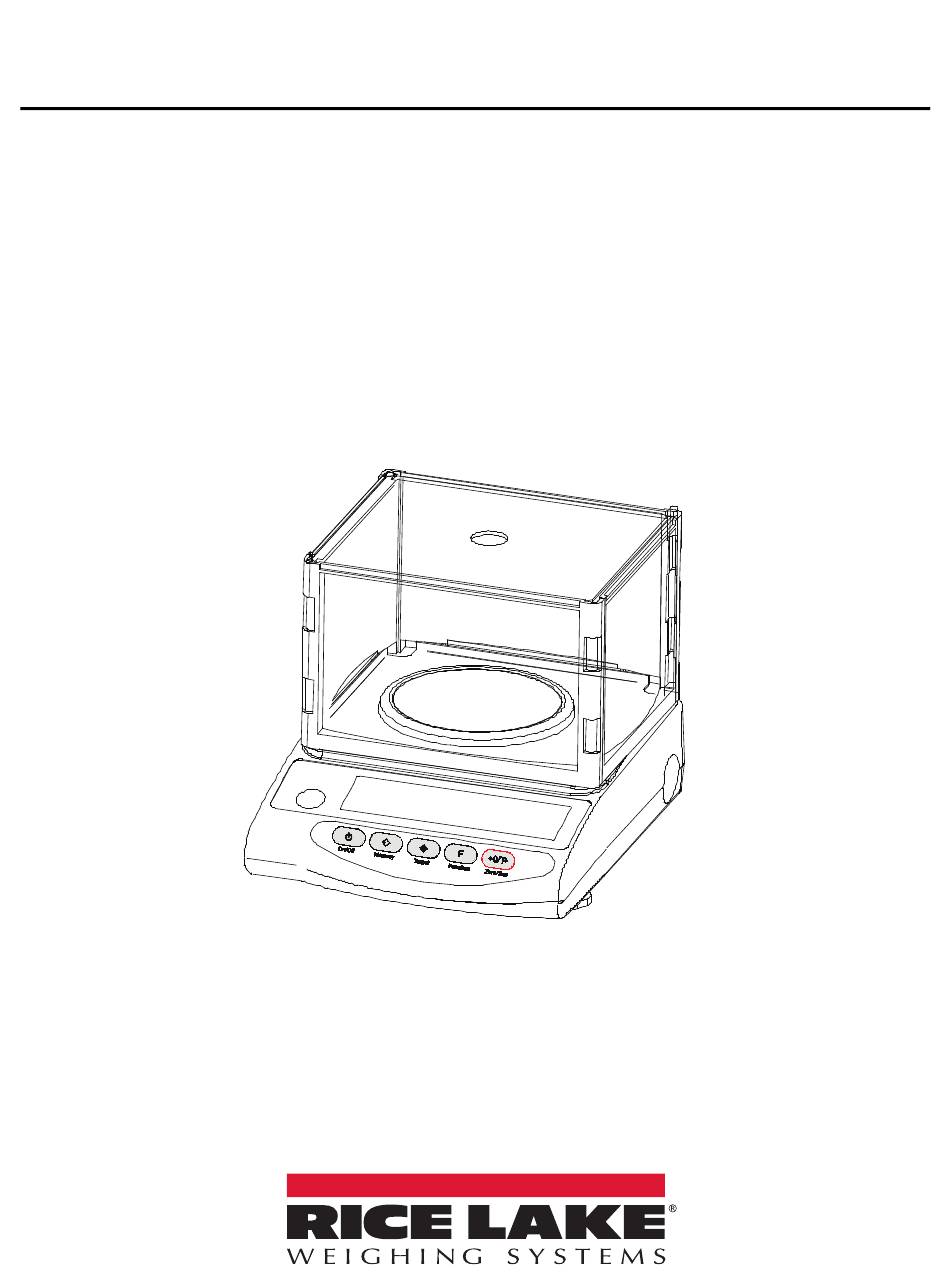

- Page 1 TP Series Balance Tuning Fork Precision Electronic Balance Technical Manual PN 107251 Rev D February 5, 2021...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Terminal Numbers and Functions ............... 26 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 Common Specifications ..............35 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
Adapt to any type of standard with the ability to weigh in 12 different measurement units. The compact and manageable size of the TP Series balance is suitable for even the most limited of space. A footprint smaller than a sheet of paper makes it perfect for crowded work environments. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Tuning Fork Precision Electronic Balance
TP-820, TP-1200: 170 mm x 140 mm TP-2200, TP-12K: 180 mm x 160 mm TP-2200, TP-4200: 180 mm x 160 mm Adjusters (2) Square Pan – One on each corner Square Pan Type Figure 1-1. Component Locations © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Indicator Lcd Display
TP Series Balance Indicator LCD Display Figure 1-2. LCD Display with Symbols Display Description Grams Zero point Tare being subtracted Indication of stable balance (if the light is off, the balance is unstable) Balance powered up (lights up when the power is turned off) or data transmitted... -
Page 9: Operating Keys
Brief press – Selects a value with the value input method when using the limit function Brief press – Selects a function when operating the balance in the function mode Table 1-2. Operating Key Description © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Assembly
TP Series Balance Assembly Use the following steps to assemble a TP Series Balance. 1. Mount the pan base on the main unit of the balance and place the measurement pan on top of it. Be sure to mount the pan base in the correct direction as illustrated. - Page 11 Use caution when turning the feet on the square-pan model to prevent them from lifting up. CAUTION 7. Connect the AC adapter to the balance. Figure 2-4. Connect AC Adapter If the balance is battery operated, refer to Section 3 .4 on page Note © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 12: Basic Operation
TP Series Balance Basic Operation Operation Check Once the AC adapter is connected to the balance, displays. Press . The display section lights up and the balance is ready for operation. 2. Check the indicator display for missing or unlit icons. A few seconds after startup, display enters measurement mode. -
Page 13: Operation Key Points
• The active measurement mode on startup is the mode that was active when the balance was last switched off. For example, if the balance was switched off while in counting mode, the balance starts in counting mode the next time it is switched on. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Tare Procedure
TP Series Balance Tare Procedure 1. Place a container on the balance. The balance indicates the weight of the item. Figure 3-6. Taring a Container 2. Press to tare the weight of the item. The weight (tare) is subtracted and the balance indicates zero. -
Page 15: Battery Operation
Do not reverse the balance connection or short-circuit the positive and negative polarities of the balance. Use only the supplied AC adapter. Do not incinerate used batteries. Dispose as hazardous material only. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Functions
TP Series Balance Functions Function Setup 1. Press and hold until Func displays, then release the key. The function setup mode is activated and the first parameter, (Bar graph) displays. See Section 4.2 for details on the Function menu. - Page 17 (momme) (to) * * * Unit not set Table 4-1. Function Menu Descriptions (Continued) *Default factory settings; default settings for ~ are*-* © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 18: Interface Settings
TP Series Balance 4.2.1 Interface Settings Displayed when is set to or . Parameter Settings Description Stop output. Output continuous at all times. Output continuous if stable (stops output if unstable). Outputs once by pressing (irrespective of whether stable). -
Page 19: Switching Functions
• cannot be set to • If the same unit of measurement is set multiple times, the second time (and all subsequent times) the unit occurs, it is ignored when the display switches © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Counting Pieces
TP Series Balance Counting Pieces To implement piece counting, the specified samples are loaded on the balance and their average unit weight (here after, referred as unit weight) is entered and saved. The procedure for saving unit weights is called sampling. -
Page 21: Sampling Procedure Key Points
6. Repeat Steps 3 and 4. The total number of samples to be saved should be approximately 1/5 to 1/2 of the number of samples to be measured. 7. Press . The balance saves the unit weight and returns to measurement mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Measuring Percentages
TP Series Balance Measuring Percentages The percentage measurement function operates by weighing a reference sample and saving its weight as a reference value indexed as 100%. When a measurement sample loaded on the balance is lighter or heavier than the reference, its weight is indicated as a percentage (%) value relative to the reference weight. -
Page 23: Limit Function
Press to Advance Parameter Press to Change Setting Figure 7-1. Enabling the Limit Function 3. Press to set the value on the right side of the display to (this enables the Limit function). © Rice Lake Weighing Systems ● All Rights Reserved... - Page 24 TP Series Balance 4. Press , displays (Judgment Condition). Press to Advance Parameter Press to Change Setting (optional) Figure 7-2. Setting the Judgment Condition 5. Press to set the value on the right side of the display to desired condition: •...
-
Page 25: Limit Value Setup By Actual Quantity Loads
5. Load the sample of the upper-limit value on the measurement pan. 6. Press . After saving the upper-limit value, the balance displays it briefly and returns to measurement mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Limit Value Setup By Inputting Values
TP Series Balance Limit Value Setup by Inputting Values 1. Press and hold until displays, then release the key. The currently set lower-limit value flashes. Press and Hold Release Target Key Function Key Figure 7-7. Enter Lower-Limit Setting 2. Press . -
Page 27: Limit Function Key Points
Check the values, since mistakes can occur with entries, as in cases when the upper-limit value is specified with a negative sign. • When M is flashing on the value input screen, the sign on the left end can be changed. Press to switch between the positive and negative signs. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 28: Calibration
TP Series Balance Calibration Since electronic balances are affected by gravitational acceleration, they produce different values in various locations. Therefore, before use, balances must be calibrated at the location where they are installed. Calibration is also required after long periods without use, or if a balance begins to produce inaccurate values. -
Page 29: Calibration Key Points
If error messages are displayed, calibration cannot take place. Check the weight and re-calibrate. If the same error Note continues after repeated calibrations using the correct weight, please contact Rice Lake Weighing Systems. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 30: Input/Output Functions
TP Series Balance Input/Output Functions Terminal Numbers and Functions Terminal Number Signal Input/Output Function & Remarks EXT.TARE Input External tare subtraction Output High (when balance is powered-up) Input Receiving data Output Transmitting data — Signal ground Table 9-1. Terminal Numbers and Functions Compatible plug: TCP 0556-01-0201 (Hosiden - supplied with balance) Figure 9-1. -
Page 31: Sample Connection With Pc9801
Stop bit: 2 bits Parity Bit None/odd/even Logic “1” ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Logic “0” Data bit Stop bit Start bit Parity bit (may be omitted) © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 32: Output Data
TP Series Balance Output Data 9.4.1 Data Format By changing the function settings on the main unit of the balance, users can select either a six-digit numeric format or a seven-digit numeric format. • Six-digit numeric format is composed of 14 character pairings, including the terminators CR=0DH, LF=0AH. -
Page 33: Units (U1, U2: Two Characters)
(such as the setup of a function or a span adjustment), it will transmit a response when the procedure finishes. 3. When transmitting more than one command to the balance from a remote device, wait until a confirmation on the first transmission is received before transmitting the next. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 34: Command Format
TP Series Balance 9.5.2 Command Format 1. Composed of four characters (ASCII), including the terminators CR=0DH, LF=0AH. 2. Instruction for tare subtraction (zero adjustment) Code Description Value Response A00: Normal end Instruction for tare subtraction (zero (SP) None E01: Tare subtraction cannot be executed due to an... -
Page 35: Troubleshooting
During battery installation the indication necessary turns off and flashes Recharge the battery or operate the The battery capacity is low balance with the AC adapter Table 10-1. Troubleshooting © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 36: Appendix
TP Series Balance 11.0 Appendix 11.1 Minimum Display by Unit of Measurement Upper cell represents capacity, lower cell represents readability. Note Unit of Measurement TP-220 TP-320 TP-420 TP-620 TP-820 TP-1200 1200 0.001 0.001 0.001 0.001 0.01 0.01 1100 1600 2100... - Page 37 0.005 1100 1600 2100 3200 (momme) 0.005 0.005 0.01 0.01 0.05 0.05 1000 (to) 0.001 0.001 0.001 0.01 0.01 0.01 Table 11-2. Minimum Display by Unit of Measurement Group B © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 38: 11.2 Conversion Table Of Units
TP Series Balance 11.2 Conversion Table of Units Unit Gram Carat Ounce Pound Troy Ounce Penny Weight 0.03527 0.00220 0.03215 0.64301 1 ct 0.00705 0.00044 0.00643 0.12860 1 oz 28.34952 141.74762 0.06250 0.91146 18.22917 1 lb 453.59237 2267.96185 14.58333 291.66667 1 ozt 31.10348... -
Page 39: Specifications
Compatible printer CSP-160 Operating temperature and humidity C to 35 C, 80% RH or less ranges AC Adapter Dedicated AC adapter: 100-240 VAC / 12 VDC Table 12-3. Common Specifications © Rice Lake Weighing Systems ● All Rights Reserved... - Page 40 TP Series Balance www.RiceLake.com Visit our website...
