Mount the EXPLORER 727 Terminal
NOTE: This section does not apply to the 19" rack version of the terminal. The 19" rack
version of the terminal is described in the next section.

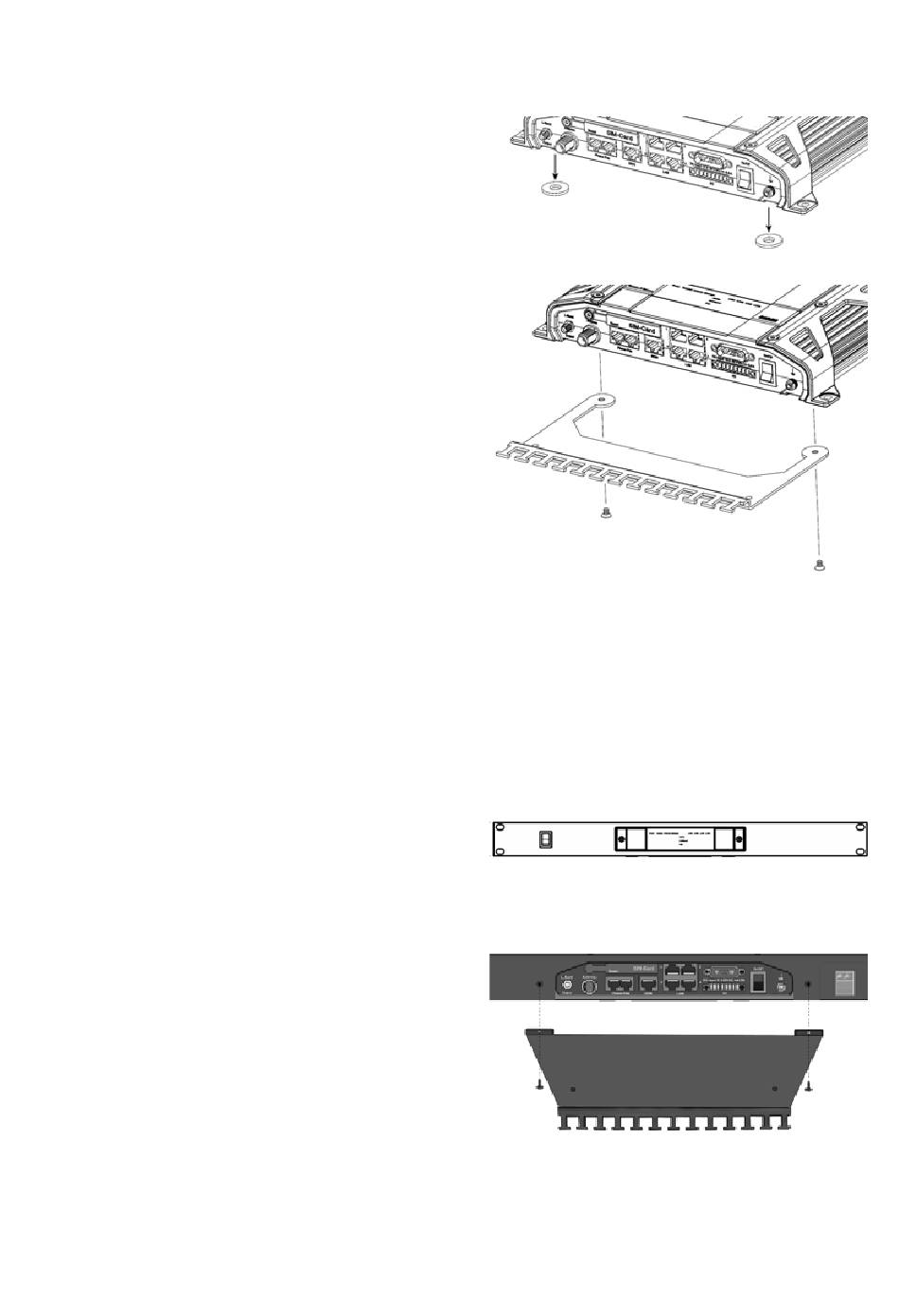

If you need support for your cables, mount
the Basic cable support on the terminal
before installing the terminal in the vehicle.
The Basic cable support is included in the
Accessories kit F/ Terminal, S-673738A.
Do as follows:
1. Remove the two rubber feet under the
terminal at the connector end.
2. Mount the cable support using the
screws from the Basic cable support kit.
(two M4 x 6 mm countersunk screws)
3. Mount the terminal with or without
cable support in your vehicle, using 4
screws through the mounting holes in
the corners of the terminal.
For further information, see the Installa-
tion manual for the EXPLORER 727.
Mount the EXPLORER 727 19" Rack Terminal
If you have the 19" Rack version of the EXPLORER 727, mount the terminal as follows:
1. Slide the terminal into a 1U space in a
19" rack.
2. Mount two screws in each side through
the holes in the front and fasten the
screws to the rack.
If you need support for your cables, mount
the Strain Relief Bracket on the terminal. The
Strain Relief Bracket is included in the
Accessories box Kit F/ FBB 19" rack,
S-673738A-00510.
To mount the strain relief bracket:
1. Remove the two screws in the connector
panel and fasten the strain relief bracket
to the terminal with the same two
screws.
For further information, see the Installation manual for the EXPLORER 727.
