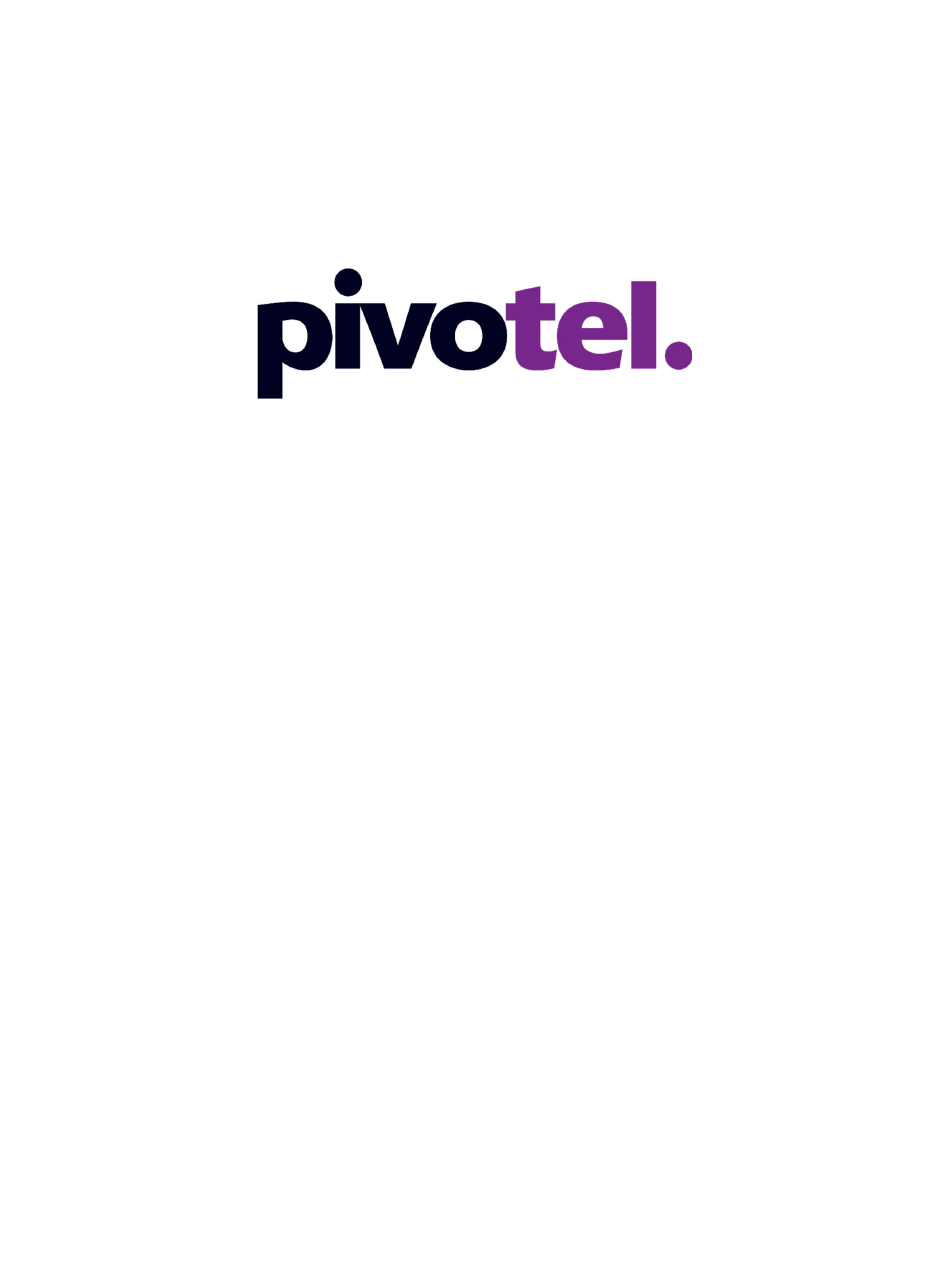

- Page 1 BETTER CONNECTIONS. EVERYWHERE. ALWAYS. Iridium Certus Sailor 4300 Terminal Pivotel Quick Start Guide...
-
Page 2: Firmware Version
Firmware Version Your Cobham Sailor 4300 has the latest firmware version 1.08. The terminal supports up to 176/704 Kbps upload/download speed and up to three simultaneous IP voice calls. This quick start guide is based on firmware version 1.08. Admin Login To access SERVICE and edit SETTINGS, you need to login as an administrator. -
Page 3: Using Data
6. You can change the admin password after login using the default password Using Data The data connection of the Sailor 4300 can be set to one of two modes. Manual activation: requires the user to manually enable and disable a data session each time a data session is required. - Page 4 user manual for instruction to use Mobile web interface. This quick start guide provides the example of using the Service LAN port. You need to login as administrator to edit any setting, please see Admin Login on page 1. After admin login, go to DASHBOARD, click ‘Start’ on Post-paid data session to start connecting the primary data session.
- Page 5 Dashboard before admin login where settings are not available or displayed. To start using the satellite data after enabling the data session, you must connect to one of three LAN ports as shown below, not Service Port. Connect your computer or smart phone to the terminal via Ethernet cable to one of three LAN ports or WiFi (external WLAN device is required).
- Page 6 enable automatic data session. You need to login as administrator to edit any setting, please see Admin Login on page 1. After admin login, go to SETTINGS – Data – Select ‘Automatic’ from the dropdown menu for Post-paid data flow. Click ‘Apply’ to save the settings. Automatic data for primary data session is setup.
-
Page 7: Voice Call
Dy default, one voice line is activated, and you have Pivotel local mobile number and Iridium native number. You can make and receive calls using Cobham IP handset (PoE adaptor required and can be supplied by Pivotel) • VoIP handset (PoE adaptor required) •... - Page 8 Connect your Cobham IP handset to the PoE port of the PoE adapter, and an Ethernet cable from the LAN port of Sailor 4300 to the LAN port of the PoE adapter. The IP handset will be automatically powered on when the terminal and PoE adapter are powered on.
- Page 9 To make an outgoing call, dial <country code> <phone number> and press or #. For example, to call an Australia mobile number 04xx xxx xxx, press 614xx xxx xxx, then To call a fixed line number 09 XXX XXXX in Auckland, dial +649XXXXXXX, then To make incoming call to your Iridium Certus service, the caller just needs to dial the 04 number assigned to your service.
- Page 10 0505 882 448 PIVOTEL.CO.NZ...
