Getting started
Congratulations on the purchase of your
EXPLORER 727.
Before you start, please check that the
following items are present:
• EXPLORER 727 terminal or EXPLORER 727
19" Rack Terminal
• EXPLORER 727 antenna
• IP Handset & Cradle, wired
• Antenna cables for connecting the
terminal with the antenna
• Cable Support
• LAN cable
• DC Power cable
• Getting started guide (this guide)
• CD with manuals

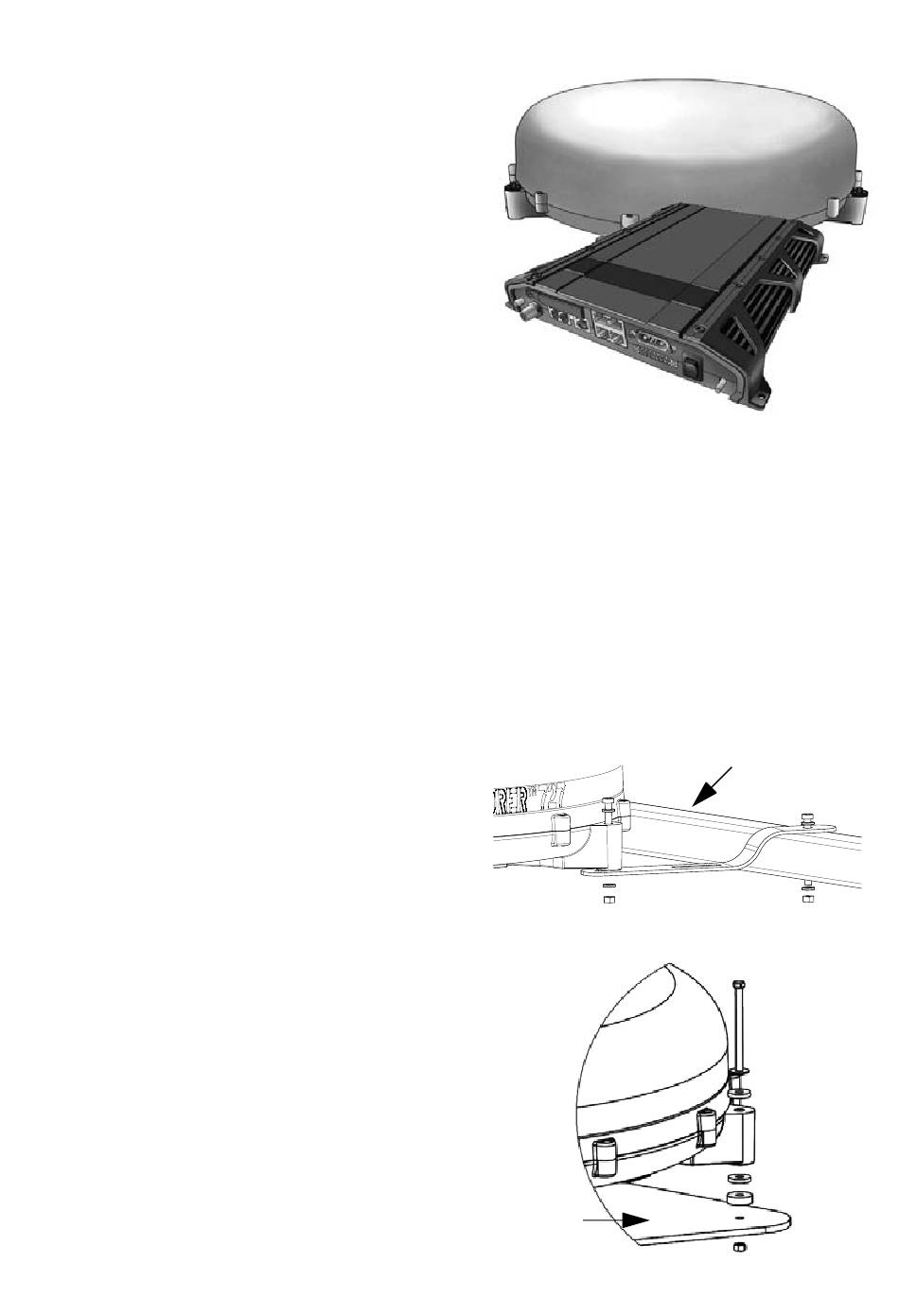

Mount the antenna
The antenna is designed to be mounted on the roof of a vehicle. There are three methods for
mounting the antenna:
With roof rails:
Use the Roof Rail Mount Kit from Cobham
SATCOM.
1. Mount the roof rail brackets on the 3
"legs" of the antenna.
2. Drill holes in the roof rails that will fit the
roof rail brackets.
3. Fasten the brackets to the roof rails.
See the installation manual for details.
Directly on the roof:
1. Drill three 5 mm holes in the roof of the
vehicle.
2. Mount the antenna using M5 bolts and
spacers of min. 10 mm height.
See the installation manual for details.
Roof of
the vehicle
Roof rail
