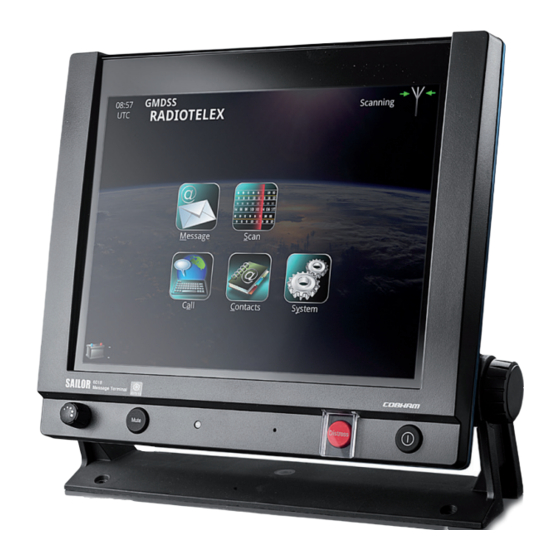

SAILOR 6018 Message Terminal
Installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAILOR 6018 and is the answer not in the manual?

Questions and answers

Related Manuals for COBHAM SAILOR 6018

Summary of Contents for COBHAM SAILOR 6018

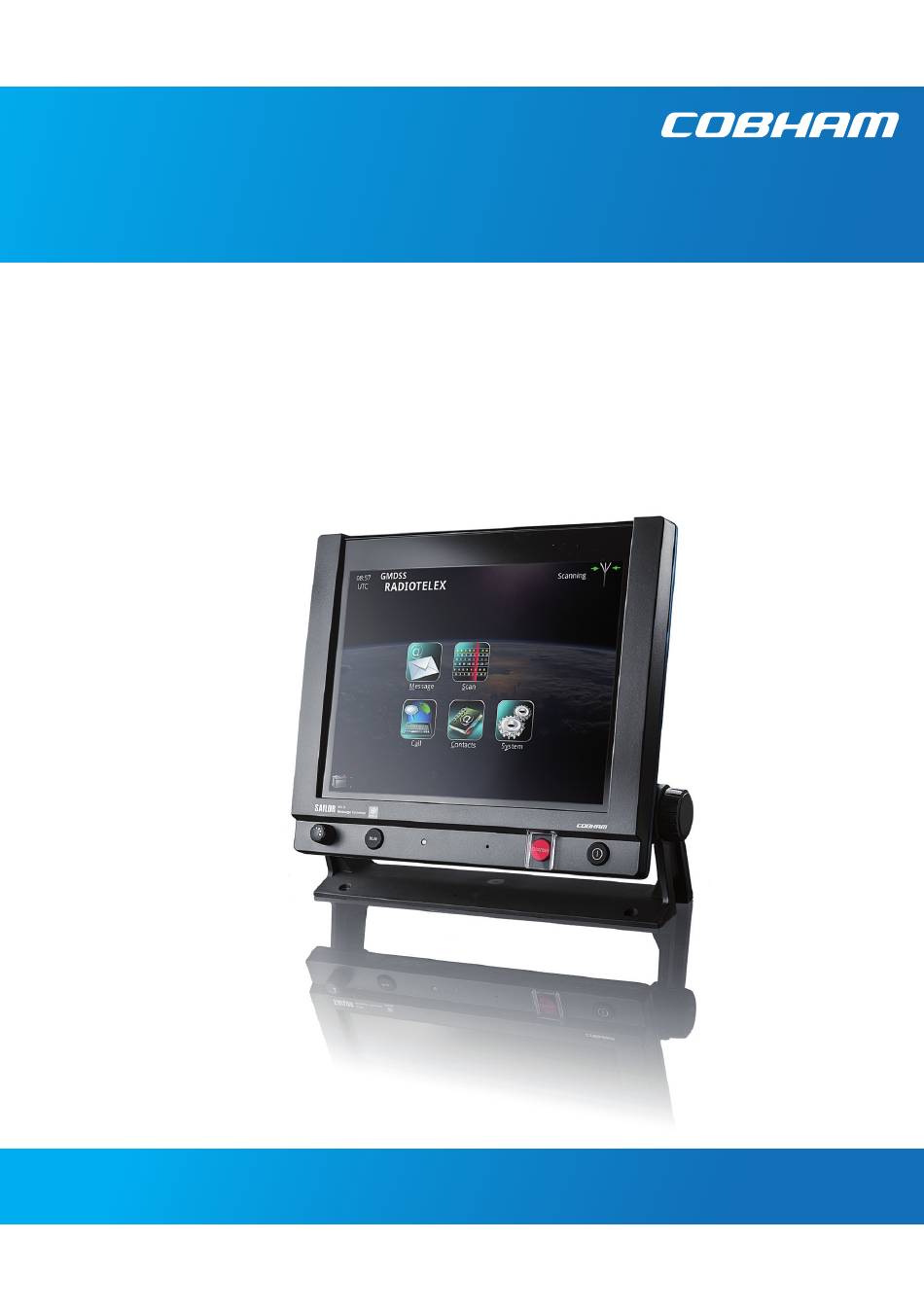

  • Page 1 SAILOR 6018 Message Terminal Installation manual...
  • Page 3 SAILOR 6018 Message Terminal Installation manual Document number: 98-150478-A02 Release date: October 11, 2017...
  • Page 4 In the event of any discrepancies, the English version shall be the governing text. Thrane & Thrane A/S is trading as Cobham SATCOM. Copyright © 2017 Thrane & Thrane A/S. All rights reserved.
  • Page 5 Cobham SATCOM assumes no liability for the customer's failure to comply with these requirements. DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE Do not operate the equipment in the presence of flammable gases or fumes.
  • Page 6 About the manual Intended readers This manual is an installation manual for the SAILOR 6018 Message Terminal. The manual is intended primarily for installers of the system and service personnel. Personnel installing or servicing the system must be properly trained and authorized by Cobham SATCOM.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Introduction 1.1 The SAILOR 6018 Message Terminal ........1 1.1.1 General description ................1 1.1.2 System configuration examples ........... 2 Chapter 2 Installation 2.1 Unpacking ....................5 2.1.1 Initial inspection ................... 5 2.1.2 Storage ...................... 5 2.2 Installing the Message Terminal ........6...
  • Page 8 Table of Contents Chapter 4 Setup and verification 4.1 Setup ......................21 Chapter 5 Service & repair 5.1 General service information .............25 5.2 Maintenance & troubleshooting ...........26 5.2.1 Cleaning the display .................26 5.3 Repacking for shipment ..............26 App. A Specifications A.1 Technical specifications .............29 A.2 NMEA ...................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 The SAILOR 6018 Message Terminal 1.1.1 General description The SAILOR 6018 Message Terminal is a maritime terminal for use in GMDSS installations, providing several types of interfaces for connection to external equipment, such as a Mini-C...

  • Page 10: System Configuration Examples

    Control Unit Accessory Connection Box Connection Box Telex option GPS option 2182 select option TT- 6103A TT- 6018A H1252B Alarm Panel Message Terminal Printer GPS on LAN option TT-6197A TT-6001A Ethernet Switch Keyboard Optional connection The SAILOR 6018 Message Terminal...
  • Page 11 Chapter 1: Introduction 1.1.2.2 mini-C GMDSS SAILOR TT-3027A mini-C GMDSS TT-608xA Power Supply NMEA 0183 talker option TT- 6103A/TT-6101A TT- 6018A H1252B Alarm Panel Message Terminal Printer TT-6197A Ethernet Switch TT-6001A Keyboard 29 V DC The SAILOR 6018 Message Terminal...
  • Page 12 Chapter 1: Introduction The SAILOR 6018 Message Terminal...

  • Page 13: Chapter 2 Installation

    Chapter 2 Installation This chapter provides a description of how to unpack, store and install the Message Terminal. It contains the following sections: • Unpacking • Installing the Message Terminal For information on cable connections see chapter 3 Connectors & controls. 2.1 Unpacking 2.1.1 Initial inspection Inspect the shipping carton immediately upon receipt for evidence of...

  • Page 14: Installing The Message Terminal

    Chapter 2: Installation 2.2 Installing the Message Terminal When installing, make sure the Compass Safe Distance of 0.6 m is maintained. The Message Terminal can be mounted in two ways, if needed with the cable relief: • Desktop mounting • Flush mount — typically in a console 2.2.1 Desktop mounting The Message Terminal can be mounted on a desktop using the mounting bracket.
  • Page 15 Chapter 2: Installation To mount the Message Terminal using the mounting bracket, do as follows: 1. Find a suitable location to mount the Message Terminal. Make sure there is at least 80 mm of free space for cable access behind the Message Terminal.

  • Page 16: Flush Mount

    Chapter 2: Installation 6. Adjust the angle of the Message Terminal to the wanted position. The bracket can be adjusted ± 20°. 7. Tighten the two knobs on the sides of the bracket when the Message Terminal is in the desired position. 2.2.2 Flush mount The Message Terminal can be mounted in a flat surface, e.g.

  • Page 17: Mounting The Cable Relief Bracket

    Chapter 2: Installation 3. Ensure that the flush mount gasket is placed correctly on the Message Terminal. 4. Fit the Message Terminal into the cut-out in the console. 5. Secure the Message Terminal with the four Torx screws . 6. Connect the cables as described in chapter 3. 2.2.3 Mounting the cable relief bracket To secure the cables you must use the cable relief plate.
  • Page 18 Chapter 2: Installation Installing the Message Terminal...

  • Page 19: Chapter 3 Connectors & Controls

    Chapter 3 Connectors & controls This chapter provides a description of all connectors on the Message Terminal controls, guidelines to cabling and a description of controls. 3.1 Connectors The figure below shows the connectors and the ground stud on the rear panel of the Message Terminal.

  • Page 20: Option Connector (Opt)

    NMEA Tx interface pins provide GPS related information when SAILOR 6018 is used in a mini-C configuration. The rest of the pins are reserved for future use. Use connection cable with plug, part number 406209-941 or a SAILOR 6209 Connection Box.

  • Page 21: System Connector (Sys)

    Chapter 3: Connectors & controls 3.1.2 System connector (SYS) The SYS connector is a bidirectional interface used to connect the SAILOR 6018 to a system e.g. an MF/HF or a mini-C antenna. . Pin Description Wire color Connector outline Not connected None...

  • Page 22: Accessories Connector (Acc)

    Message Terminal is used. See A.2 NMEA for details on approved sentences. The NMEA Tx interface pins provide GPS related information when SAILOR 6018 is used in a mini-C configuration. Use a connection cable with plug, part number 406209-941 or a SAILOR 6209 Connection Box.

  • Page 23: Usb Connector

    The DC Power input connects to a DC supply with 12 - 24 V DC nominal. The Power connector is a custom connector; a matching cable with connector is included in the box. A power cable is available from Cobham SATCOM, Note spare part S-37-130130.
  • Page 24 Chapter 3: Connectors & controls 3.1.6.1 Connecting DC power Connect DC+ (red wire) to DC out + from your DC supply. Connect DC- (black wire) to DC out - from your DC supply. Do not connect the white wire nor the blue wire in the power cable, unless you want to use the Remote on function or the on/off control function described in the chapter below.

  • Page 25: Lan Connector

    Message Terminal, used for communication with connected equipment that is designed to be operated by the Message Terminal. Note A LAN cable with connector is available from Cobham SATCOM, spare part S-37-206122-150. For GMDSS installations: Only connect units that are part Important of the system.

  • Page 26: Cabling

    Chapter 3: Connectors & controls 3.2 Cabling Before using the Message Terminal for the first time, check that all cables are correctly wired and fastened. All cables attached to the Message Terminal must be shielded. • The shield of the Ethernet cable must be connected to ship ground directly or via a grounded Ethernet switch.

  • Page 27: Connecting Cables

    Chapter 3: Connectors & controls 3.2.3 Connecting cables To connect the Message Terminal, do as follows: 1. Connect an Ethernet cable to the LAN connector on the Message Terminal. For one cable, use the lower LAN connector (Primary LAN). Both connectors work in DHCP and zeroconf environments. 2.

  • Page 28: Controls

    5 seconds will test light in buttons and sound. 3.3.4 Distress button. The Distress button on the SAILOR 6018 Message Terminal is used in safety systems to send a distress message through a connected transceiver. Refer to the manual for your system for information on the function.

  • Page 29: Chapter 4 Setup And Verification

    Chapter 4 Setup and verification 4.1 Setup The first time the SAILOR 6018 Message Terminal is switched on, select the application the Message Terminal is to be used for. The Message Terminal can be used for Radiotelex or for Inmarsat C.
  • Page 30 Chapter 4: Setup and verification 4. Select Select GMDSS System 5. Type in the password if prompted. the password is 1234. 6. Select whether the current system connected to this Message Terminal should be the primary or duplicated system and then select Store. 7.
  • Page 31 Chapter 4: Setup and verification 9. If you have an Alarm Panel in the system, the primary and duplicated systems will appear in the Alarm Panel as Inm-C 1 and Inm-C 2 respectively or MF/HF 1 and MF/HF 2 respectively. Setup...
  • Page 32 Chapter 4: Setup and verification Setup...

  • Page 33: Chapter 5 Service & Repair

    For further information on warranty and service, you may also use the Cobham SATCOM home page at http://www.cobham.com/satcom. When contacting your authorized dealer or Cobham customer service, have the following information present: • Serial number of the Message Terminal (label on the rear of the Message Terminal) •...

  • Page 34: Maintenance & Troubleshooting

    Chapter 5: Service & repair 5.2 Maintenance & troubleshooting No maintenance is required for the Message Terminal. 5.2.1 Cleaning the display Do not use benzene, thinner, ammonia or any other volatile substances to Clean your monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.
  • Page 35 Chapter 5: Service & repair 4. Seal the shipping container securely. 5. Mark the shipping container FRAGILE to ensure careful handling. Failure to do so may invalidate the warranty. Repacking for shipment...
  • Page 36 Chapter 5: Service & repair Repacking for shipment...

  • Page 37: Specifications

    Appendix A Specifications A.1 Technical specifications This appendix holds the specifications for the SAILOR 6018 Message Terminal. Item Specifications Mounting method Flush mount or bracket Voltage 12 to 24 V DC (absolute min/max rating: 10.8 to 31.2 V DC) Power consumption...
  • Page 38 Appendix A: Specifications Item Specifications Dimensions W x H x D 269 mm x 234 mm x 70 mm (without mounting bracket) Weight 2.5 kg (without mounting bracket) Display Color TFT screen with touch Resolution: 800 x 480 pixels Pixel size: 0.1905mm a.

  • Page 39: Nmea

    Chapter A: Specifications A.2 NMEA The SAILOR 6018 Message Terminal has two NMEA inputs/outputs. These are used to communicate with other systems or equipment. These inputs/outputs are connected to the Option and ACC connectors at the rear side of the terminal. See description in chapter 3.1.1 Option connector (OPT) and 3.1.4 Accessories connector (ACC).

  • Page 40: Nmea Sentences Used

    Chapter A: Specifications NMEA Receiver Zy ED < & & & & & & dy ED RS485 & & A.2.1 NMEA sentences used The sentences used for positional information are defined according to NMEA 0183 version 4.10 and IEC 61162-1 2010 Edition 4. •...
  • Page 41 Chapter A: Specifications A.2.1.1 GLL - Geographic position - Latitude/longitude (output) $GPGLL, llll.ll, a, yyyyy.yy, a, hhmmss.ss, A, a *hh<CR><LF> Data Field Description Comment format Sentence ID Used llll.ll Latitude, N/S Used Latitude, N/S Used yyyyy.yy Longitude, E/W Used Longitude, E/W Used hhmmss.ss UTC of position...
  • Page 42 Chapter A: Specifications A.2.1.2 GNS - GNSS fix data (output) $GPGNS,hhmmss.ss,llll.ll,a,yyyyy.yy,a,c-c,xx,x.x,x.x,x.x,x.x,x.x,a*hh<CR><LF> Data Field Description Comment format Sentence Id Used hhmmss.ss UTC of position Used llll.ll Latitude Used Latitude N/S Used yyyyy.yy Longitude Used Longitude E/W Used Mode indicator Used Total number of satellites in use, 00-99 Not used HDOP Not used Antenna altitude, m...
  • Page 43 Chapter A: Specifications A.2.1.3 RMC - Recommended minimum specific GNSS data (output) $GPRMC, hhmmss.ss,a,llll.ll,A,yyyyy.yy,a ,x.x,x.x, xxxxxx, x.x,a,a,a*hh<CR><LF> Data Field Description Comment format Sentence Id Used hhmmss.ss UTC of position fix Used Status (A or V) Used llll.ll Latitude Used Latitude N/S Used yyyyy.yy Longitude...
  • Page 44 Chapter A: Specifications A.2.1.4 ZDA - Time and Date (output) $GPZDA, hhmmss.ss,xx,xx,xxxx,xx,xx*hh<CR><LF> Data Field Description Comment format Sentence Id Used hhmmss.ss Used Day, 01 to 31 (UTC) Used Month, 01 to 12 (UTC) Used xxxx Year (UTC) Used Local zone hours (00 to +/-13h) Used Local zone minutes (00 to +59) Used...

  • Page 45: Glossary

    Glossary Glossary American Wire Gauge. A means of specifying wire diameters. Direct Current DHCP Dynamic Host Configuration Protocol. A protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network.
  • Page 46 Glossary Ingress Protection. An international classification system for the sealing effectiveness of enclosures of electrical equipment against the intrusion into the equipment of foreign bodies (i.e. tools, dust, fingers) and moisture. Local Area Network. A computer network covering a small physical area, like a home, office, school or airport.
  • Page 47 Glossary Universal Serial Bus. A specification to establish communication between devices and a host controller (usually personal computers). USB is intended to replace many varieties of serial and parallel ports. Universal Time, Coordinated. The International Atomic Time (TAI) with leap seconds added at irregular intervals to compensate for the Earth’s slowing rotation.
  • Page 48 Glossary...

  • Page 49: Index

    Index Index ACC connector, 14 Ethernet alarm output, 13 cable, 18 Auxiliary connector, 13 connector, 17 brightness, 20 flush mount, 8 attach brackets, 9 cutout measures, 8 fuse, 29 cable Ethernet, 18 power, 18 cable relief bracket, 9 grounding, 18 compass safe distance, 29 connectors ACC, 14...
  • Page 50 Index power off, 20 on, 20 power cable, 18 power input connector, 15 remote on, 16 repacking for shipment, 26 repair, 25 returning units, 26 safety summary, iii serial number, 25 service, 25 software version, 25 specifications, 29 storage, 5 ThraneLINK, 1 touch screen lock, 26...
  • Page 52 98-150478-A02 www.cobham.com/satcom...
