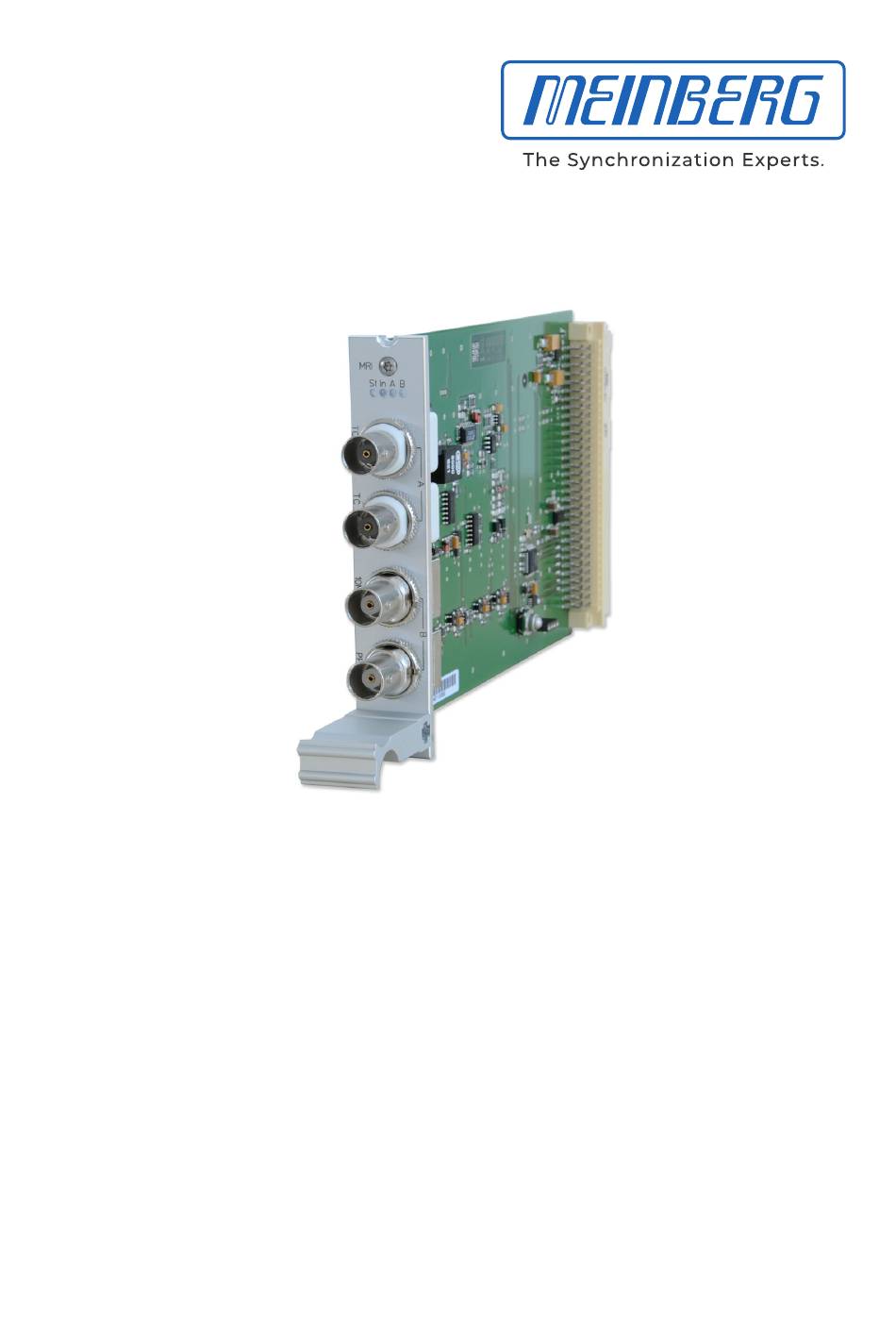

- Page 1 SETUP GUIDE IMS-MRI Hot-Plug Module 3rd May 2021 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
IMS-MRI - Status LEDs ........ -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Introduction
Download LTOS7 Firmware manual: http://www.mbg.link/doce-fw-ltos Compatibility The IMS-MRI is an IMS module that is compatible with the following systems of the IMS family and can be used in the slots shown in the table down below. Compatibility - IMS REL1000... -
Page 6: Important Safety Hints
Before any maintenance work on the system: • Backup of stored configurations is recommended (e.g. via USB stick or Web UI) • Please note the chapter "Prevention of ESD damage". • Please note the chapter "Supply voltage". IMS-MRI Date: 3rd May 2021... -
Page 7: Additional Safety Hints
Keep all documents provided with the device for later reference. This manual is exclusively for qualified electricians or by a qualified electrician trained personnel who are familiar with the applicable national standards and specifications, in particular for the construction of high voltage devices. Date: 3rd May 2021 IMS-MRI... -
Page 8: Prevention Of Esd Damage
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. IMS-MRI Date: 3rd May 2021... -
Page 9: Supply Voltage
Never open a power supply unit cause dangerous voltages can even exist after it has been disconnected from the electrical supply. If a power supply is not working anymore, e.g. due to a defect, please send it back to Meinberg for necessary repairs. Non-observance of these safety instructions can cause serious personal injury and material damage. Installation, initial start-up and operation of the IMS System may only be performed by qualified technical experts. -
Page 10: Front Connectors Ims-Mri
4 Front Connectors IMS-MRI 4 Front Connectors IMS-MRI IMS-MRI Date: 3rd May 2021... -
Page 11: Ims-Mri - Status Leds
4.1 IMS-MRI - Status LEDs Status display LED St: Status of the MRI LED In: Synchronization status LED A: Status of the input signals (TC-AM/DCLS) LED B: Status of the input signals (10 MHz/PPS) St In A B The status messages of the LED’s are as follows:... -
Page 12: Time Code Am (Modulated) Input
4 Front Connectors IMS-MRI 4.2 Time Code AM (modulated) Input Signal output: Unbalanced sine wave-signal Signal level: 600 mV / 8 V (MARK/SPACE) std. 600 Ohm (50 Ohm / 5 kOhm) Isolation Voltage: 3000 V DC Connection type: BNC female, isolated... -
Page 13: Pulse Per Second Input
4.5 Pulse Per Second Input Input signal PPS (pulse per second) Signal level: Pulse lenght: 5 s, active high Connection type: BNC, female PPS In Cable: shielded coax line Date: 3rd May 2021 IMS-MRI... -
Page 14: Before You Start
5.1 Scope of Delivery Unpack the IMS-MRI carefully and check the scope of delivery against the enclosed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our sales department: sales@meinberg.de Check the system for shipping damage. -
Page 15: System Installation
RSC/SPT is disconnected. ———————————————————————————————————————————– CPU: "hot plugable" The NTP service and access to the web interface are interrupted while the CPU is disconnected. Also the management and monitoring functions are no longer available. Date: 3rd May 2021 IMS-MRI... -
Page 16: Installation Of Hot-Pluggable Ims Modules
Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system IMS-MRI Date: 3rd May 2021... -
Page 17: Configuration And Status Monitoring Of The Input Signals
7 Configuration and Status Monitoring of the Input Signals This chapter explains how to put an IMS-MRI into operation via the web interface. 7.1 Configuration of Input Signals Four fixed input signals (time code AM, time code DCLS, 10 MHz and PPS) can be supplied via the MRI module to synchronize the system. -
Page 18: Status Monitoring Of The Input Signals
Menü: Configuration of IRIG-Timecodes 7.2 Status Monitoring of the Input Signals This chapter describes the status monitoring of the IMS-MRI via the web interface. Important parameters of the previously configured reference signals are displayed in the MRI Status tab of the "Status &... -
Page 19: Rohs And Weee
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. Date: 3rd May 2021...
