- Page 1 SETUP GUIDE IMS-VSG181 Hot-Plug Module November 4, 2021 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
Installation of Hot-Pluggable IMS Modules....... . 7 Configuration of the IMS-VSG181 Configuration via the Web Interface . -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com Email: info@meinberg.de... -
Page 5: Introduction
Meinberg product. Download LTOS7 Firmware manual: http://www.mbg.link/doce-fw-ltos Compatibility The IMS-VSG181 is an IMS module which is compatible with all systems of the IMS family. It can also be used on any slot (MRI, ESI, I/O). Date: November 4, 2021 IMS-VSG181... -
Page 6: Important Safety Information
This manual is only intended to be used by qualified electricians, or by persons who have been appropriately instructed by qualified electricians and who are familiar with applicable national standards and safety rules & regulations, especially in relation to the installation of low-voltage (< 1000 V) installations. IMS-VSG181 Date: November 4, 2021... -
Page 7: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. Date: November 4, 2021 IMS-VSG181... -
Page 8: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. The IMS system must only be installed, set up and operated by qualified personnel. -
Page 9: Front Connectors Ims-Vsg181
4 Front Connectors IMS-VSG181 Date: November 4, 2021 IMS-VSG181... -
Page 10: Status Leds

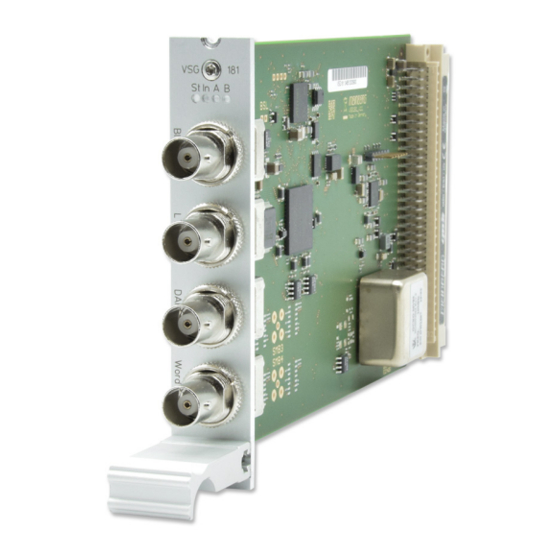

4 Front Connectors IMS-VSG181 4.1 Status LEDs St In A B Status Indicators "St" LED: Status of IMS-VSG181 Operating System "In" LED: Status of synchronization against reference signal "A" LED: Status of "Black Out" output "B" LED: Status of "LTC" outputs The status LEDs "A"... - Page 11 The status of the DARS and word clock outputs are not indicated by the status LEDs. Please refer to the LANTIME Web Interface for more information on the status of these signal outputs. Please refer to the chapter "Configuration of the IMS-VSG181" for more information. Date: November 4, 2021...
-
Page 12: Black Burst Output
4 Front Connectors IMS-VSG181 4.2 Black Burst Output Output Signal: PAL, NTSC Black Burst with VITC Support or Tri-Level-Sync Signal level: 300 mV into 75 ohms (unbalanced) Formats: Black Burst: PAL (SMPTE259M/ITU-R BT.470-6) NTSC (SMPTE170M/ITU-R BT.470-7) VITC (SMPTE12M-1/SMPTE ST309M) Tri-Level-Sync:... -
Page 13: Word Clock Output
Frequency range: 24 Hz - 12,288 MHz Base frequencies: 44.1 kHz and 48 kHz Scaling factor: 0.125, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256 Connection type: BNC female connector. Cable: coaxial, shielded Date: November 4, 2021 IMS-VSG181... -
Page 14: Before You Start
5.1 Contents of Delivery Unpack the IMS-VSG181 carefully and check the contents of the delivery against the enclosed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our sales department: sales@meinberg.de... -
Page 15: System Installation
Operating System, the configuration of some IMS modules may be reset to factory defaults! The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. Date: November 4, 2021 IMS-VSG181... -
Page 16: Installation Of Hot-Pluggable Ims Modules
Ensure that the module is securely seated in the connector block inside the chassis before you fasten the two screws. The installed module is now ready for use. Attachment points of an 1U IMS system IMS-VSG181 Date: November 4, 2021... -
Page 17: Configuration Of The Ims-Vsg181
This chapter explains how to put a IMS-VSG181 into operation via the web interface. 7.1 Configuration via the Web Interface To configure the IMS-VSG181, select the I/O Config –> Configuration of Outputs menu in the web interface. Black Burst —————————————————————————————————————————-... - Page 18 7 Configuration of the IMS-VSG181 Vertical offset: Coarse configuration of the phase offset in lines Horizontal offset: Fine configuration of the phase offset in 10 ns steps Timecode: The following timecodes can be selected: VITC VITC w. daily jam (only NTSC) VITC w.
- Page 19 field empty. —————————————————————————————————————————- DARS: —————————————————————————————————————————- Output: Digital Audio Out Signal type: DARS 48 kHz DARS 44.1 kHz Label: You have the possibility to enter an individual label for the output or leave the field empty. —————————————————————————————————————————- Date: November 4, 2021 IMS-VSG181...
- Page 20 7 Configuration of the IMS-VSG181 Word Clock: —————————————————————————————————————————- Output: Studio Clock Out Status: Locked Enabled Base frequency: 44.1 kHz 48 kHz Multiplier: Select a multiplier by which the base frequency is to be multiplied. The result is the frequency of the output signal.
-
Page 21: Rohs And Weee
WEEE-compliant fashion, it must be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. Date: November 4, 2021...
