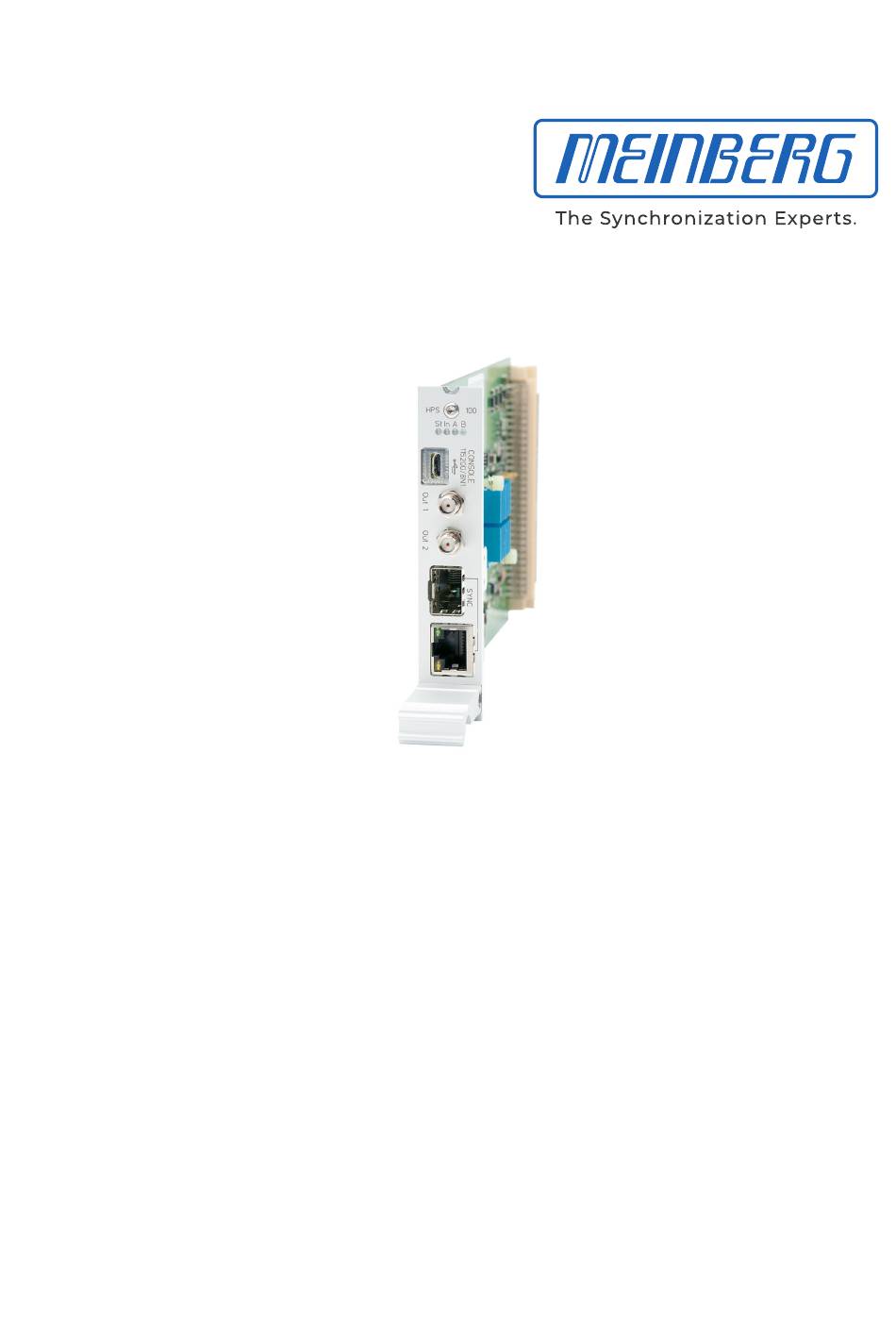

- Page 1 MANUAL IMS-HPS-100 Setup Guide Hot-Plug Module 14th November 2019 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
........Date: 14th November 2019 IMS-HPS-100 Setup Guide... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Safety Instructions For Hot Pluggable Modules
• Place the module out of the box or after removal from the system with the component side to the top on a grounded and static-free surface. • Storage of an IMS module must be done in a dry place. • Installation or removal from hot-swap components only by authorized personnel! Date: 14th November 2019 IMS-HPS-100 Setup Guide... -
Page 6: Additional Safety Hints
To ensure safe operation supply mains connected to this decice must be equipped with a fuse and a fault- current circuit breaker according to the applicable national standards for safe operation. The device must be connected to a protective earth with low grounding resistance according to the applicable national rules. IMS-HPS-100 Setup Guide Date: 14th November 2019... -
Page 7: Cabling
Wiring or any other work done the connectors particularly when connectors are opened may never be carried out when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts. ALWAYS ENSURE A PROPER INSTALLATION! Date: 14th November 2019 IMS-HPS-100 Setup Guide... -
Page 8: Replacement Or Installation Of A Hot-Pluggable Ims Module
Make sure that the module is securely locked into the connector block before you fasten the two screws. Now you can put the installed module into operation. Attachment points of an 1U IMS system IMS-HPS-100 Setup Guide Date: 14th November 2019... -

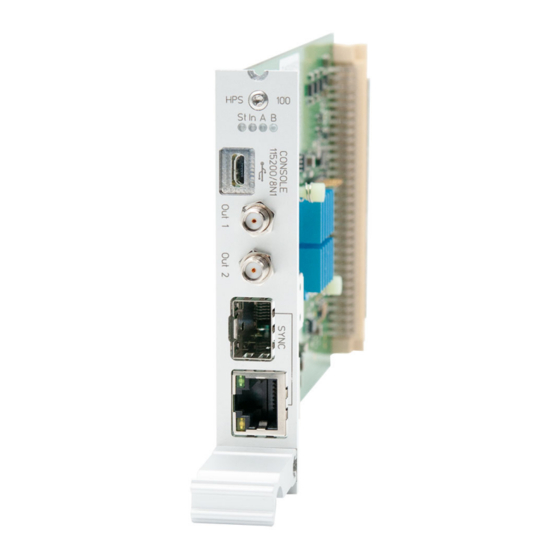

Page 9: Hps-100: Ptp / Synce / Hardware Ntp Interface
USB 1.1 / USB 2.0 full-speed, Micro USB female connector Signal Outputs: 2x SMA, TTL (50 Ohm) connectors configurable signals: 1PPS, 10MHz, 2048kHz CPU: 825 MHz Cortex A9 Dual Core on SOC Time Stamp Accuracy: 8 ns Date: 14th November 2019 IMS-HPS-100 Setup Guide... - Page 10 102400 PL-D 1024 131072 204800 PL-E 2048 262144 409600 A detailed configuration guide you will find in the corresponding firmware manual of the system. See chapter "The Web Interface -> Configuration: PTP V2". IMS-HPS-100 Setup Guide Date: 14th November 2019...
-
Page 11: Hps100 - Global Configuration
PTP standard allows it. Depending on the selected profile, there might be profile specific parameters available which can be found in the “Profile Specific Parameters“ section below the standard PTP parameters sections. Date: 14th November 2019 IMS-HPS-100 Setup Guide... -
Page 12: Option: Output Configuration
• 2.048 MHz (taken from active internal clock module) • 10 MHz (taken from active internal clock module) • PPS (taken from active internal clock module) Per default no output signal is active on both outputs. IMS-HPS-100 Setup Guide Date: 14th November 2019... -
Page 13: Firmware Update Via Web Interface
The update file can be uploaded to the HPS100 by first choosing the file on your local computer with the "Browse" button and then press "Start Update". Afterwards you are prompted to confirm the start of the update process. Date: 14th November 2019 IMS-HPS-100 Setup Guide...
