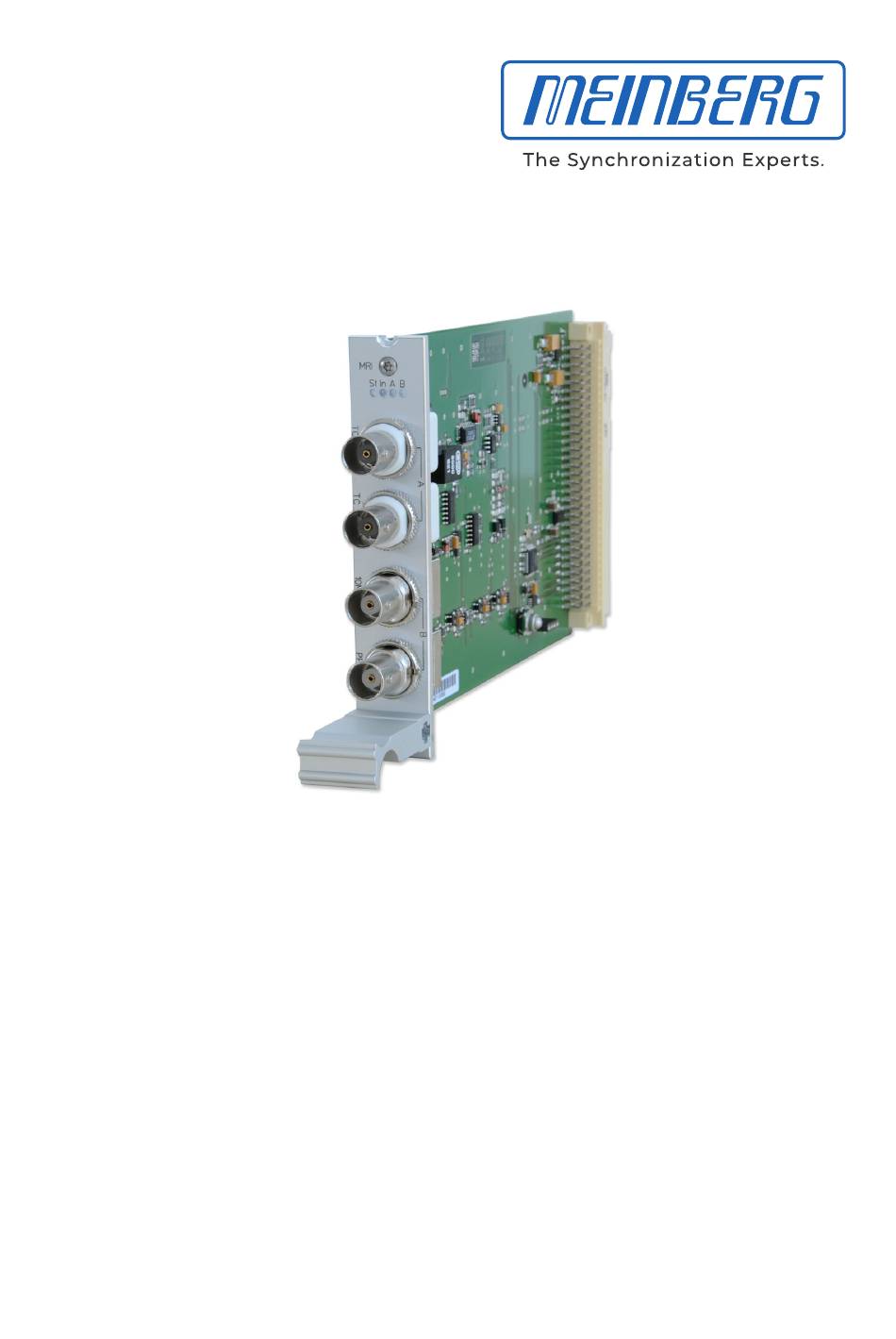

- Page 1 SETUP GUIDE IMS-MRI Hot-Plug Module March 21, 2022 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
IMS-MRI - Status LEDs ........ -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont, Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Website: https://www.meinbergglobal.com... -
Page 5: Change Log
2 Change Log Version Date Revision Notes 02/14/2020 Initial version 03/17/2022 Chap. 2, 5, 10, 11, 13 added Date: March 21, 2022 IMS-MRI... -
Page 6: Introduction
Download LTOS7 Firmware manual: http://www.mbg.link/doce-fw-ltos Compatibility The IMS-MRI is an IMS module that is compatible with the following systems of the IMS family and can be used in the slots shown in the table down below. System Compatibility - IMS MRI... -
Page 7: Important Safety Information
Detailed product documentation is provided on a USB flash drive delivered with the Meinbeg system. The manuals can also be downloaded from the Meinberg website at https://www.meinbergglobal.com, where you can enter your system name into the search box at the top of the page to find the relevant manual. Alternatively, contact Meinberg Support for further assistance. -
Page 8: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide effective protection against electrostatic discharges. ESD-proof bags must have a sufficient electrical resistance and must not be made of conductive metals if the device has a lithium battery fitted on it. IMS-MRI Date: March 21, 2022... -
Page 9: Power Supply
In the event that a power supply unit is no longer working (e.g. defective), please return it to Meinberg for repair. Failure to observe these safety instructions may result in serious injury and/or property damage. The IMS system must only be installed, set up, and operated by qualified personnel. -
Page 10: Mri Variants
MRS signals over fiber-optic cable also making it much less susceptible to interference. Before the amplitude-modulated IRIG AM signal can be fed into the FO input, it must first be generated using a Meinberg "CON/TCM/FO" converter. MRI-FO MRI-FO-T Technical Specifications of the MRI Module... -
Page 11: Front Connectors Ims-Mri
6 Front Connectors IMS-MRI The numbering in the drawing above relates to the relevant subsection in this chapter. Date: March 21, 2022 IMS-MRI... -
Page 12: Ims-Mri - Status Leds
6 Front Connectors IMS-MRI 6.1 IMS-MRI - Status LEDs Status display LED St: Status of MRI in IMS-System LED In: Synchronization status St In A B LED A: Status of the input signals (TC-AM/DCLS) LED B: Status of the input signals (10 MHz/PPS) The status messages of the LED’s are as follows:... -
Page 13: Am Time Code (Modulated) Input
B002/003, B006/007 IEEE1344 C37.118 AFNOR NFS 87-500 Insulation Voltage: 3750 V TC DCLS In Typ. Input voltage: 5 V DC Max. Input Current: 60 mA Internal Resistor: Connector Type: BNC Female, Insulated Cable: Coaxial Cable, Shielded Date: March 21, 2022 IMS-MRI... -
Page 14: 10 Mhz Frequency Input
6 Front Connectors IMS-MRI 6.4 10 MHz Frequency Input Input Signal: 10MHz Frequency Signal Level: Sine Wave (1.5 V - 5 V ) or TTL Connector Type: BNC Female Cable: Coaxial Cable, Shielded Freq. In 6.5 Pulse per Second Input... -
Page 15: Front Connectors Ims Mri-Fo
7 Front Connectors IMS MRI-FO Date: March 21, 2022 IMS-MRI... -
Page 16: Ims-Mri - Status Leds
7 Front Connectors IMS MRI-FO 7.1 IMS-MRI - Status LEDs Status display LED St: Status of MRI in IMS-System LED In: Synchronization status St In A B LED A: Status of the input signals (TC-AM/DCLS) LED B: Status of the input signals (10 MHz/PPS) The status messages of the LED’s are as follows:... -
Page 17: Am Time Code (Modulated) Input
Wave length: 850 nm Min. input power: To ensure reliable signal detection, the input signal should not fall below the specified value. Connection type: ST connector. Fiber type: GI 50/125 m or 62.5/125 m gradient fiber Date: March 21, 2022 IMS-MRI... -
Page 18: 10 Mhz Fiber Optic Input
Wave Lenght: 850 nm Min. Input Power: To ensure reliable signal detection, the input signal should not fall below the specified value. Connection Type: ST Connector Fiber Type: GI 50/125 m oder 62,5/125 m gradient fiber IMS-MRI Date: March 21, 2022... -
Page 19: Before You Start
8.1 Contents of Delivery Unpack the IMS-MRI carefully and check the contents of the delivery against the enclosed packing list to ensure that no parts are missing. If any of the listed items are missing, please contact our sales department: sales@meinberg.de... -
Page 20: System Installation
Operating System, the configuration of some IMS modules may be reset to factory defaults! The NTP service and access to the web interface will be unavailable while the CPU is not installed. Management and monitoring functions will also be disabled. IMS-MRI Date: March 21, 2022... -
Page 21: Installation Of Hot-Pluggable Ims Modules
Ensure that the module is securely seated in the connector block inside the chassis before you fasten the two screws. The installed module is now ready for use. Locations of fixture screws in a 1RU IMS system Date: March 21, 2022 IMS-MRI... -
Page 22: Configuration And Status Monitoring
10 Configuration and Status Monitoring 10 Configuration and Status Monitoring This chapter explains how to put an IMS-MRI into operation via the web interface. 10.1 Configuration of Input Signals Four fixed input signals (time code AM, time code DCLS, 10 MHz and PPS) can be supplied via the MRI module to synchronize the system. -
Page 23: Status Monitoring Of The Input Signals
Menü: Configuration of IRIG-Timecodes 10.2 Status Monitoring of the Input Signals This chapter describes the status monitoring of the IMS-MRI via the web interface. Important parameters of the previously configured reference signals are displayed in the MRI Status tab of the "Status &... -
Page 24: Troubleshooting
Our Technical Support team will be pleased to help you with any problems that you may be having with your Meinberg IMS-MRI. However, before you contact our Technical Support team, it is advisable to read this chap- ter through first to see if your problem might be more quickly resolved with one of the solutions below. -
Page 25: Your Opinion Matters To Us
12 Your Opinion Matters to Us This user manual is intended to assist you in the preparation, use, and care of your Meinberg product, and provides important information for configuration and status monitoring. Be a part of the ongoing improvement of the information contained in this manual. Please contact our Technical Support team if you have any suggestions for improvements or technical questions that are relevant to the manual. -
Page 26: Rohs And Weee
WEEE-compliant fashion, it must be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. IMS-MRI... -
Page 27: List Of Abbreviations
Bayonet Neill–Concelman connector Straight tip BFOC Bayonet fiber optic connector Fiber Optic IRIG Inter Range Instrumentation Group Electrostatic Discharge ESDS Electrostatic Discharge Sensitivity/Sensitive Ground LTOS LANTIME Operating System Pulse per Second Transistor–Transitor Logic Web-UI Web User Interface Date: March 21, 2022 IMS-MRI...
