tim.
Instructions for use.
tim. The angle adjustable upright trainer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tim and is the answer not in the manual?

Questions and answers

Related Manuals for Schuchmann tim

Summary of Contents for Schuchmann tim

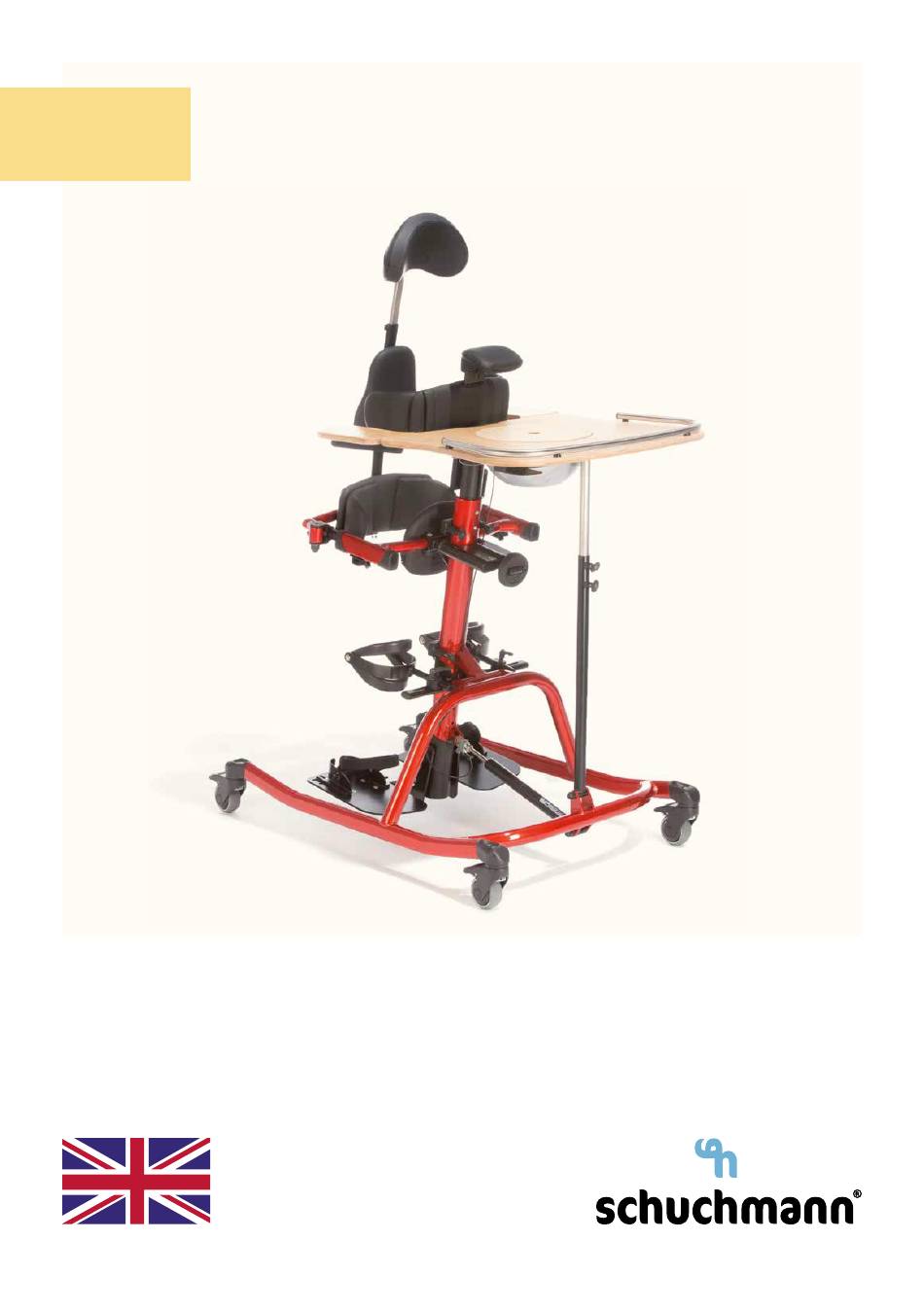

  • Page 1 Instructions for use. tim. The angle adjustable upright trainer.
  • Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling and transport ..................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06...
  • Page 4 Contents. 4. Cleaning and servicing..............23 4.1 Cleaning and disinfecting ..................23 4.1.1 Cleaning ......................23 4.1.2 Disinfection ......................23 4.2 Servicing ........................23 4.3 Maintenance ......................23 4.3.1 Maintenance specifications ..............24 4.3.2 Maintenance plan ..................24 4.4 Spare parts ......................... 25 4.5 Duration of use and re-use ................

  • Page 5: Preparation

    1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these In- structions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de .

  • Page 6: Product Description

    (fold up pelvic frame, set lowest height etc.). 2.3 Application areas, use according to the intended purpose The tim. upright trainer is a medical product of risk class 1 for indoors and is used for upright training with severely impaired or non-existent ability to stand.

  • Page 7: Contraindications

    2. Product description. 2.3.2 Contraindications In general, the indications for standing should be approved by a doctor or orthopedist. It should therefore be clarified prior to procurement whether contraindications exist for the patient. In general, any type of pain represents a contraindication. No upright trainer care should be conducted without establishing prior to use whether the patient has an abnormal foot position which requires medical attention.

  • Page 8: Use Not In Accordance With The Intended Purpose / Warning Gui

    • Therapy table with edge • 4 braked castors (75 mm) with total locking device 2.5.1 Equipment acc. HMV (Medical Aids Register) The tim. upright trainer requires additional fitting of heel edges and footstraps according to HMV (German Ordinance on Therapy).

  • Page 9: List Of Accessories

    2. Product description. 2.6 List of accessories • Back pelotte pad • Chest pelotte pad with lateral • Backstrap guide (optional angular • Headrest adjustment) • Chin support • Buttocks pelotte pad • Therapy table (with / without • Ventral pelvic pelotte pad therapy table / with / without •...

  • Page 10: General Settings

    2. Product description. 2.8 General settings tim. is delivered completely mounted and in the smallest possible adjustment. Before the user is placed into the upright trainer, the necessary presettings must be carried out. User dimensions Presettings Taking the user's dimensions Carrying out adjustments to the upright trainer...

  • Page 11: Getting In And Out

    2. Product description. 2.9 Getting in and out Once all presettings have been carried out, please first lock all four castors for getting in and out (A). Now bring central column into vertical position (see Point 3.1) and open the swi- vel arm of the pelvic frame (B).

  • Page 12: Settings

    3. Settings Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury.

  • Page 13: Angular Adjustment Of The Central Column

    3. Settings 3.1 Angular adjustment of the central column The central column can be adjusted using a gas pressure spring, whereby the therapy table remains at a preset angle. Please secure the upright trai- ner against inadvertent rolling away by applying the locking devices on the castors.

  • Page 14: Foot Plate

    3. Settings 3.3 Foot plate The foot plate is adjustable in height and can be altered via the inner profile using the height adjustment on the central column (see Point 3.2). To adjust the depth, loosen the star screw (A+B), which is located under the foot plate.

  • Page 15: Heel Edges

    3. Settings 3.5 Heel edges The heel edges are mounted onto the foot plate or the divided foot pla- te. They can be adjusted in width or angle. The height / depth is adjusted via the foot plate or divided footplate, see Point 3.3 or 3.4.

  • Page 16: Pelvic Frame

    3. Settings 16 16 3.8 Pelvic frame The pelvic frame can be adjusted in height and in depth. In order to adjust the pelvic frame in height, loosen the wing screws (A) and bring the pelvic frame into the required position. The patient can be straightened up using the hand crank (B).

  • Page 17: Combined Spine And Pelvic Pelotte Pad

    3. Settings 3.9 Combined spine and pelvic pelotte pad The combined spine and pelvic pelotte pad is width, height and depth adjus- table. The height and the depth of the combined spine and pelotte pad can on the one hand be adjusted as a who- le via the pelvic frame (see Point 3.8).

  • Page 18: Buttocks Pelotte Pad

    3. Settings 18 18 3.10 Buttocks pelotte pad The height and the depth of the buttocks pelotte pad can be adjus- ted as a whole via the pelvic frame (see Point 3.8). In addition, the but- tocks pelotte pad can be assembled in three height positions on the pelvic frame.

  • Page 19: Chest Pelotte Pad With Lateral Guide

    3. Settings 3.12 Chest pelotte pad with lateral guide The chest pelotte pad with late- ral guide is adjustable in width and height, also with optional angular adjustment. In addition, the height can also be adjusted via the height adjustment on the central column (see Point 3.2).

  • Page 20: Back Pelotte Pad

    3. Settings 3.14 Back pelotte pad The height and the depth of the back pelotte pad can be adjusted as a who- le via the pelvic frame (see Point 3.8). The back pelotte pad (A) itself can also be adjusted in height, is mounted on the swivel arm of the pelvic frame and can be swivelled over this fra- me to the side.

  • Page 21: Therapy Tables

    3. Settings 3.16 Therapy tables Four therapy tables are available in total: One version without a depression and arm supports, one version with a depression, one version with arm sup- ports and one version with a depression and arm supports. The therapy table can be adjusted in depth, height and angle.

  • Page 22: Adjustable Arm Supports

    3. Settings 3.16.2 Adjustable arm supports Two therapy table versions are availa- ble with adjustable arm supports. The adjustable arm supports for the therapy table are adjustable in width. In order to adjust the width, loosen the six screws (A) on the underside of the therapy table and bring the adjus- table arm supports into the required position.

  • Page 23: Cleaning And Servicing

    100% Polyester Please also pay attention to our general clea- ning and hygiene advice. This can be found at www.schuchmann.de/mediathek 4.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth.

  • Page 24: Maintenance Specifications

    4. Cleaning and servicing. 4.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •...

  • Page 25: Spare Parts

    4. Cleaning and maintaining. 4.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 7.5) stating the serial number of the product.

  • Page 26: Technical Data

    5. Technical data. Dimensions Size 1 Size 2 Size 3 Body size 75 -110 cm 100 - 140 cm 120 - 160 cm Table height from foot plate 48.5 - 80.5 cm 71 - 95 cm 80 - 112 cm Pelvic depth 12 - 22 cm 16 - 28 cm...

  • Page 27: Identification

    EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1...

  • Page 28: Serial Number / Date Of Manufacture

    • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 7.3 Product version The tim. upright trainer is available in three sizes and can be supplemen- ted through a diverse range of accessories (see Point 2.6). 7.4 Issue of the document Instructions for use tim.
