freddy.
Instructions for use.

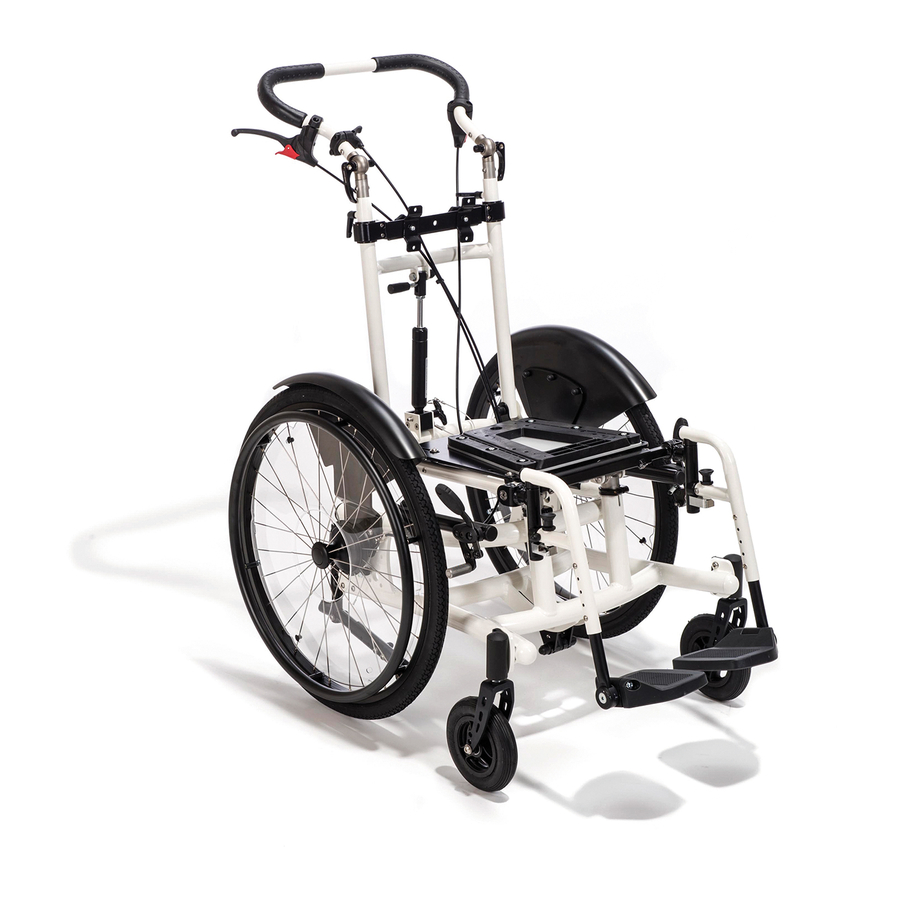

freddy. The compact seat pan subframe.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the freddy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schuchmann freddy

Summary of Contents for Schuchmann freddy

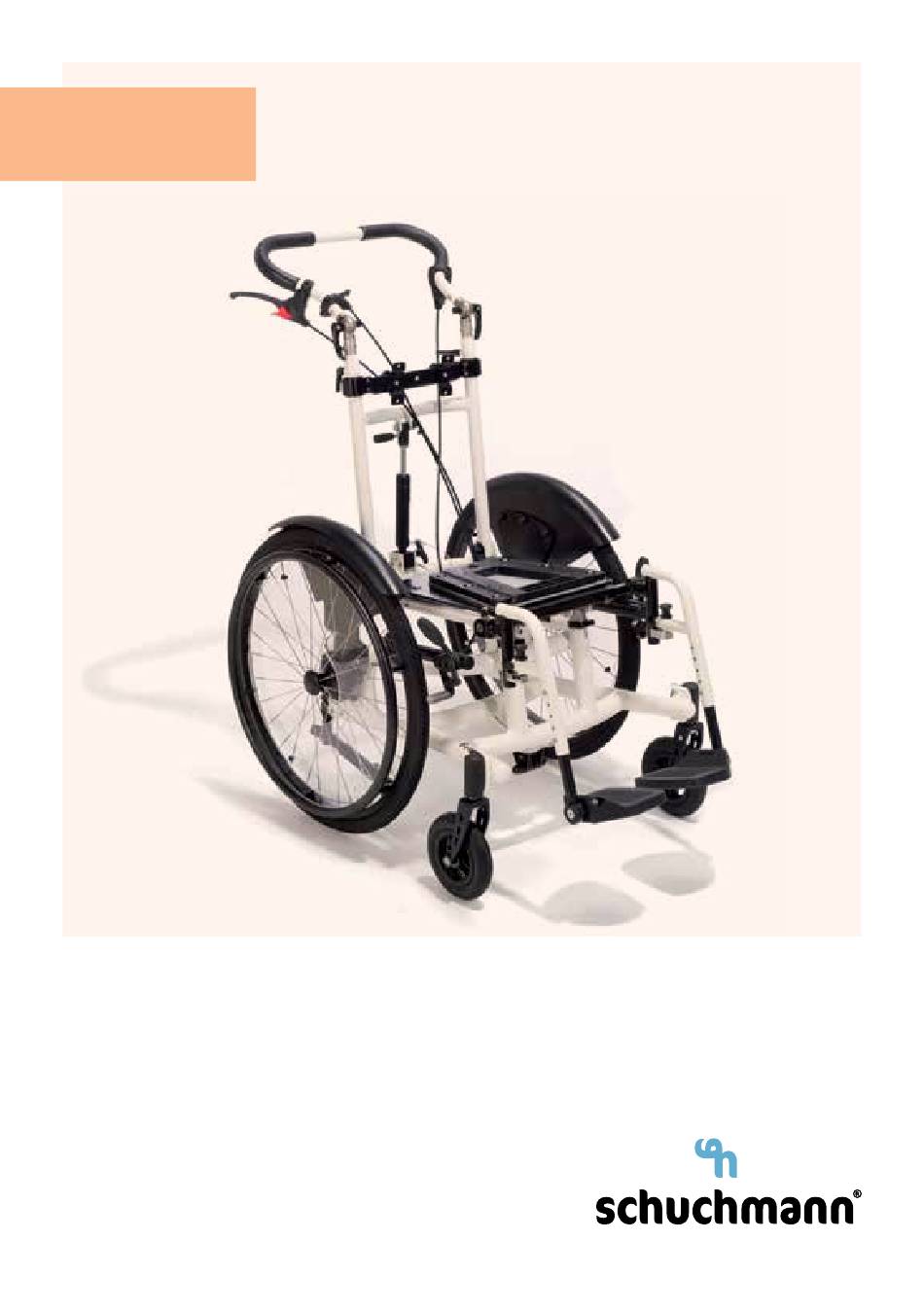

  • Page 1 Instructions for use. freddy. The compact seat pan subframe.
  • Page 2 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation..................05 1.1 Transport........................05 1.2 Safety measures prior to use ................05 1.3 Sicheres Entsorgen ....................05 1.3.1 Packaging ....................05 1.3.2 Product ....................05 1.4 Where to store the Instructions for use ............. 05 2. Product description................06 2.1 Material information ....................
  • Page 4 Contents. 7. Repairs and cleaning..............20 7.1 Cleaning ........................20 7.2 Repairs ........................20 7.3 Spare parts .......................20 7.4 Duration of use and re-use ................20 7.5 Mounting / repairing the tyres ................21 7.6 Wheel sizes / recommended air pressure ..........21 8. Technical data................22 9.

  • Page 5: Preparation

    1. Preparation. 1.1 Transport On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please cause an inventory (determination of the faults) to be made in the presence of the forwarder.

  • Page 6: Product Description

    To transport the upright trainer, reduce all adjustments to their most compact size (fold up foot bench, remove rear wheels etc.) 2.3 Application areas, use according to the intended purpose freddy. seat pan subframe is designed as a sub-structure to mount freddy. seat pan systems and seat pans.

  • Page 7: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    2.4 Use not in accordance with the intended purpose / warning guidelines • Correct usage of the seat pan sub-frame requires precise and careful training of the accompanying person. freddy. • Practice using the on an even surface. You must also find out about the impacts of changing the centre of gravity and how the freddy.

  • Page 8: Ausstattung Grundmodell

    2. Product description. 2.5 Ausstattung Grundmodell • Tilt adjustment of the seat pan via gas pressure spring 300N • Depth adjustable back unit • Back and push bars, angle and height adjustable • including adapter head for seat pans, adjustable in height and seat depth • Incl. plug-in foot bench • Incl. rear wheels with plug-in and drum brake 2.6 Auflistung Zubehör • Push handle • Anti tip bar • armrests • Tilting device • Headrest bracket • Power hub system • Clothing guard • Bracket for Viamobil / Scalamobil • Spoke guard as an assembly set • Wheel base extension • Foot bench/divided footrests • Knee lever brake with bracket...

  • Page 9: General Settings

    They also press the chassis into the steps parallel to the floor. Never carry the freddy. seat pan subframe whilst the user is sitting in it – risk of accidents! When lowering, the bottom helper brakes by pressing the chassis in stages.

  • Page 10: Settings

    Please ensure that none of the user‘s extremities are in the respective area when making adjustments to avoid the risk of injury. 3.1 Seat tilt freddy. seat can be inclined for- wards in the basic position using the gas pressure spring up to 30°...

  • Page 11: Back Angle Adjustment With Central Quick Adjustment

    3. Settings. 3.3 Back angle adjustment with central quick adjustment The back can be adjusted via the central fast adjustment at an angle of 90° to 120° to the seat frame. For versions with a gas pressure spring, the adjustment is made by pressing the lever on the gas pressure spring (A) and by releasing the clamp lever (B) for the mechanical version.

  • Page 12: Seat Height Adjustment

    3. Settings. 3.4 Seat height adjustment The height of the seat adapter can be adjusted by loosening the clamps (A) on the horizontal tubes. A scale is ap- plied to the inner tube. The scale shows steps of 2 cm. Max.

  • Page 13: Adjustment Of The Back Unit

    3.7 Push handles The height of push grips can be individually adjusted on your Freddy. This takes place after loosening the two clamp levers (B) on the rear tubes. Tigh- ten the clamp lever again after adjust- ment.

  • Page 14: Handling Wheels

    4. Handling wheels. The following are general rules: Higher air pressure: Low rolling resistance / less suspension comfort Lower air pressure: Higher rolling resistance / more suspension comfort See point 7.5 for sizes and air pressure for the guide and rear wheels. 4.1 Rear wheels with drum brake The drum brake allows safe braking, which is independent of the tyre pres- sure.

  • Page 15: Quick Release Axle

    4.2 Quick release axle The quick release axles on the rear wheels 16“, 20“ and 22“ make it considerably easier to freddy. transport your . You only need to press the button (A) in the centre of the wheel hub, and the wheel can be easily removed or rein- serted.

  • Page 16: Clothing Guard - Removable

    4. Handling wheels. 16 16 4.5 Clothing guard – removable Alongside the fixed clothing guard, the clothing gu- ard can also be supplied as a removable guard to achieve a more compact transport size. This is done by loosening the two knurled screws (A). Pay attention to a tight fit when mounting the clothing guard! 5.

  • Page 17: Knee Lever Brake

    (A). Firmly tighten the screws again. 5.4 Footrests There are different footrest variants for the freddy. , which are fixed to the seat frame at the base plate for external adapters. After in- serting the knee angle in the footboard ad-...

  • Page 18: Adapter Systems

    6. Adapter systems. freddy. is prepared to take a seat unit or seat pan. The seat adapter represents the connection point. 6.1 Seat pan adapter, standard 1. Insert the adapter into the rear tube of the seat pan support. 2. Fold the adapter down to the front tube.

  • Page 19: Seat Plate Assembly

    6. Adapter systems. 6.3 Seat plate assembly Transfer the hole pattern of the trape- zoidal adapter onto the seal pan body and mount the seat plate with four M6 countersunk screws (strength class 8.8) onto the trapezoidal adapter. Please use M6 self-locking nuts (min. strength class 8) to fasten.

  • Page 20: Repairs And Cleaning

    Please clean with a mild house- hold detergent for severer dirt. It is important to thoroughly dry the seat pan sub-frame after cleaning. Please also pay attention to our general cleaning www.schuchmann.de/freddy and hygiene advice. You can find them at 7.2 Repairs Please carry out a daily visual inspection and check the seat pan sub-frame regularly for cracks, breaks, missing parts and malfunctions.

  • Page 21: Mounting / Repairing The Tyres

    7. Instandhalten und Reinigen. 7.5 Mounting / repairing the tyres Mounting or repairing the tyres is done in the same way as for normal bicy- cle tyres. Before inserting the new inner tube, make sure that the rims and inner wall of the tyres are free of foreign particles. Check the tyre pressure after mounting or repair.

  • Page 22: Technical Data

    8. Technical data. Dimensions - basic model Size 0 Size 1 Size 2 Size 3 Min. seat height* 43 cm 43 cm 43 cm 43 cm Short seat depth 23 - 33 cm 27 - 37 cm Standard seat depth 28 - 38 cm 32 - 42 cm 40 - 50 cm...

  • Page 23: Guarantee

    9. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time pe- riod, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.

  • Page 24: Identification

    10. Identification. 10.1 EC declaration of conformity Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 freddy.

  • Page 25: Seriennummer / Herstellungsdatum

    - Change status H; Issue 09.2018 10.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de...
  • Page 26 schuchmann.de...
