- Page 1 & malte outdoor. Instructions for use. malte. & malte outdoor. The compact and versatile posterior walking aids.
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................... 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description............... 06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.4 Use not in accordance with the intended purpose / warning gui-... - Page 4 Contents. 6. Guarantee..................21 7. Identification................22 7.1 EC declaration of conformity ................22 7.2 Serial number / date of manufacture ............23 7.3 Product version ......................23 7.4 Issue of the document ................... 23 7.5 Name and address of the manufacturer, specialist dealer supplying the product ........................
-
Page 5: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arran- ge for an inventory (determination of the faults) to be made in the presen- ce of the forwarder. -
Page 6: Product Description
To transport the posterior walker, fold the frame (see point 3.1). The frame of the malte. size 0 mini cannot be folded! In this case, set ever- ything at its most compact (fold up bench, set handles to lowest setting etc.) Lift the compact unit by stepping between the frame from the rear... -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Gui
• The product may not be used without supervision. • malte. may only be used indoors on solid, even ground. Please use the malte outdoor. for outdoor areas. • The max. height adjustment is specified by a marking - no settings may be made beyond this range. -
Page 8: Product Overview

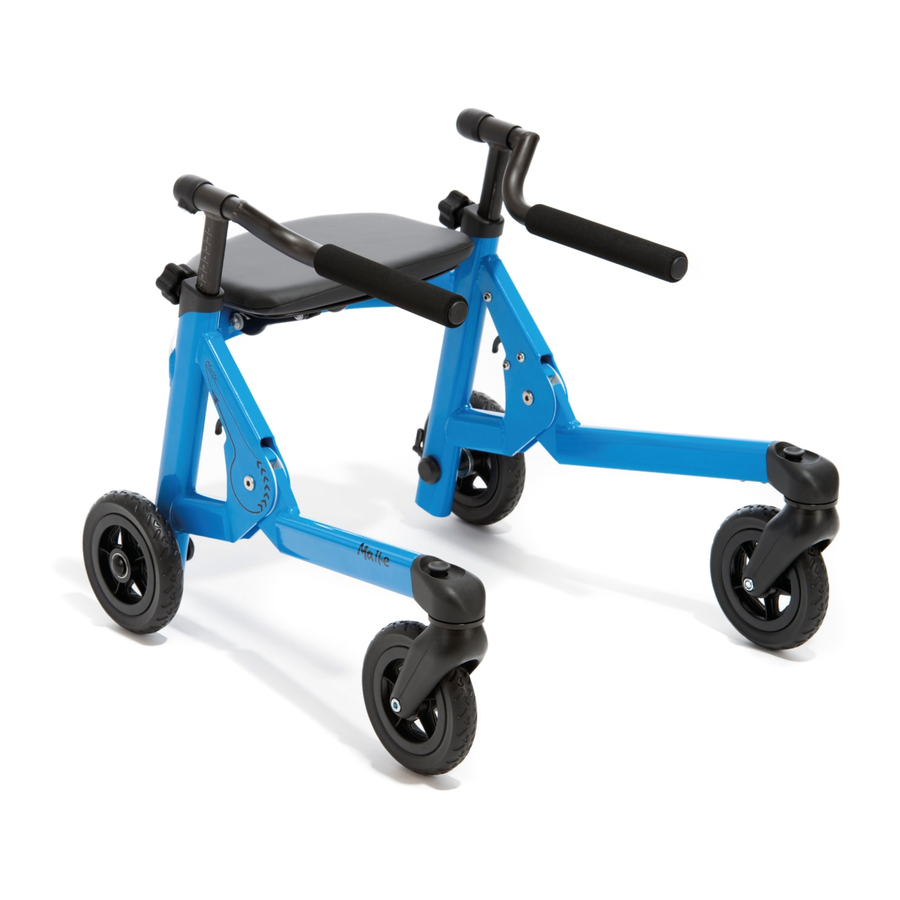

2. Product description. 2.7 Product overview The figures below are intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. Lower armrests with handles Combined pelvis and buttocks pelotte pads Bench Lightweight, folding... -
Page 9: Settings
Klick! audible click. Klick! The frame of the malte. size 0 mini cannot be folded down! It is essential that hinges lock back in when unfolding! For malte. size 4 another safety pin... -
Page 10: Handles
3. Settings. 3.2 Handles The handles can be individually adjus- ted in height and width for adjustment to individual body size. 3.2.1 Handle height adjustment To adjust the height, please loosen the star handles (A), bring the hand- les into the required position and then re-tighten the star handles. -
Page 11: Direction Locks
3.4 Combined pelvis and buttocks pelotte pads (optional for malte. and malte outdoor.) The combined pelvis and buttocks pelotte pad is padded with PU and helps the user straighten up when walking. It can be adjusted in height, depth, width and angle and can also be swung away to the back. -
Page 12: Storage Basket
3.5 Storage basket (optional for malte. and malte.outdoor.) The storage basket can be used to transport small objects and improves the look of the posterior walker. The storage basket has a fixed shape and cannot be adjusted. -
Page 13: Tip Protector
Simply lift the bench gently and fold it back- wards. Simply fold it back down to the use the bench again. You cannot affix a bench to the malte. mini size 0! Please note the maximum load (see point 5)! -
Page 14: Lower Armrests
3. Settings. 14 14 3.8 Lower armrests (optional for malte.) The lower armrests can be equipped with a handle or grip ball. They can be adjusted in depth, height, angle and inclination. Depth adjustment Loosen the cylinder head screw with inner hexagon (A) beneath the lower armrest. -
Page 15: Handle / Grip Ball For Lower Armrests
After each adjustment, please re-tighten the lock nut! 3.11 Parking brake (optional for malte.) For malte outdoor. the parking handbrake is included in the basic model. Against uninten- tionally rolling away and for a secure footing the posterior walker can be equipped with a parking handbrake. -
Page 16: Bar
Swinging the bar away Pull the locking bolts (F) out and swing the bar away to the side. A bar cannot be used for malte sizes 0 + 4 and in combination with lower armrests (see point 3.8)! After each adjustment, please re-tighten all screw connections! -
Page 17: Deflector
The deflector is used to protect the product and the environment. The de- flector prevents damage in the case of the user walking into furniture, ob- jects etc. when using the malte. The deflector is premounted and cannot be adjusted. 3.14 Backwards stop (optional for malte outdoor.) -
Page 18: Repairs And Cleaning
All frame elements and surfaces can be cleaned with a sponge or moist cloth using normal antibacterial household detergents. Please also pay attention to our general cleaning and hygiene advice. You can find them at www.schuchmann.de/malte. Do not use aggressive cleaning agents such as solvents, hard brushes etc. 4.2 Repairs Please carry out a daily visual inspection and check the respective pos- terior walker regularly for cracks, breaks, missing parts and malfunctions. -
Page 19: Technical Data
5. Technical data. Dimensions - malte. basic model Size 0* Size 1 Size 2 Size 3 Size 4 29 - 53 Handle height 34 - 58 cm 51 - 75 cm 68 - 94 cm 87 - 113 cm Height of lower arm-... - Page 20 5. Technical data. Dimensions - malte outdoor. basic model Size 1 Size 2 Size 3 Handle height 34 - 58 cm 51 - 75 cm 68 - 94 cm Height of lower arm- 46 - 70 cm 63 - 87 cm...
-
Page 21: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated da- mage and, if applicable, either repair or deliver a new product at our di- scretion. -
Page 22: Identification
75 01 000 (Size 1) 75 02 000 (Size 2 75 03 000 (Size 3) 75 04 000 (Size 4) malte outdoor. The compact and versatile posterior walker for outdoor use Art. No.: 75 01 100 (Size 1) 75 02 100 (Size 2) -
Page 23: Serial Number / Date Of Manufacture
Max. load Date of manufacture 7.3 Product version The malte. posterior walker is available in five sizes; the malte outdoor. in three sizes. Both can be supplemented through a diverse range of acces- sories (see point 2.6). 7.4 Issue of the document Instructions for use malte. - Page 24 schuchmann.de...
