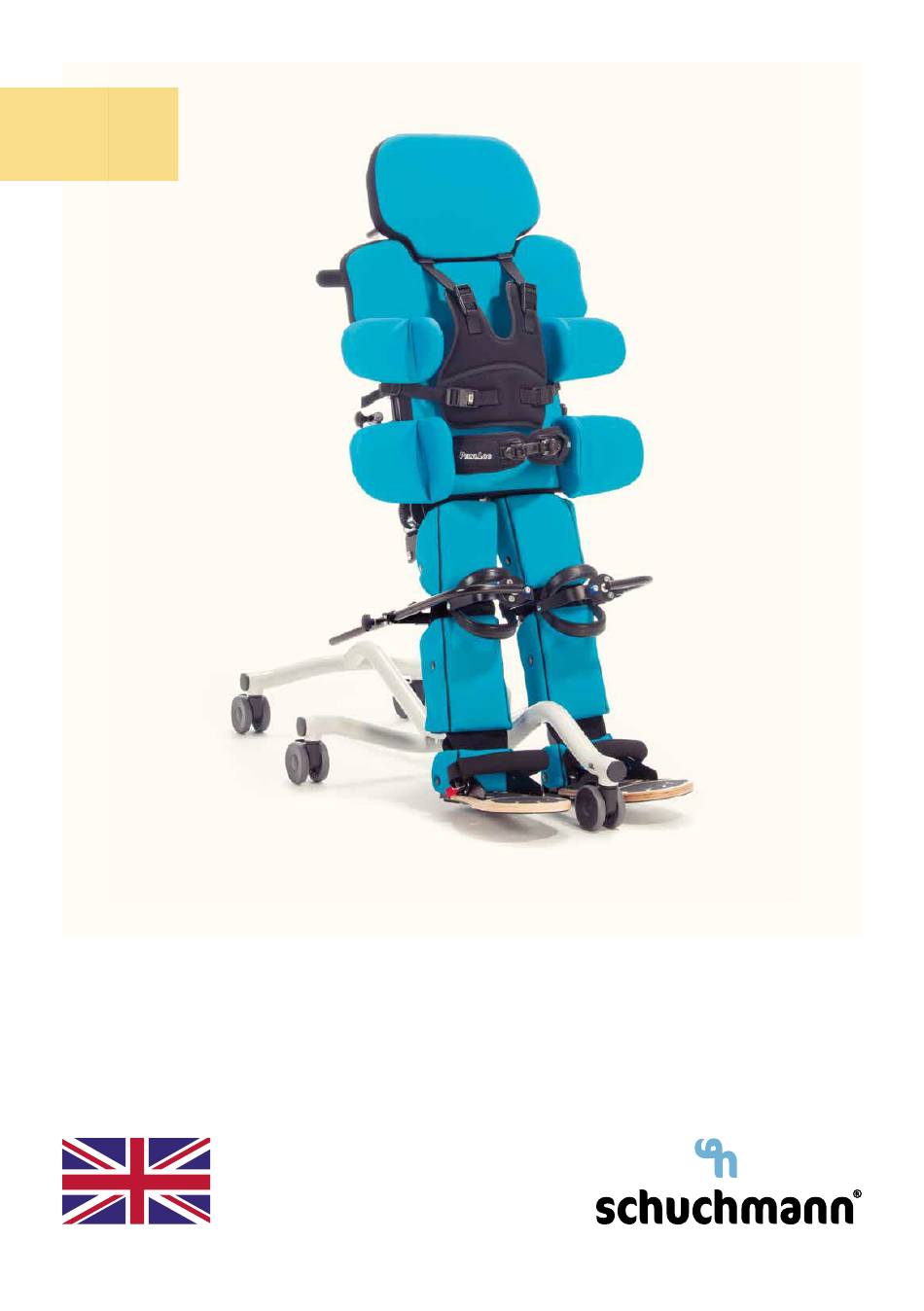

- Page 1 Instructions for use. till. The adjustable supine standing frame.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling and transport ..................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 4.8 Footrests ........................27 4.8.1 Footrests (standard) ..................27 4.8.2 Footrests (flex) ....................27 4.8.3 Foot guide incl. foot straps ..............28 4.8.4 Simple foot strap ................... 28 4.9 Wooden therapy table ..................29 4.9.1 Table support pad ..................30 4.10 Push handles / push bars ..................30 4.11 Safety bolt ........................30 4.12 Harness .........................
-
Page 5: Preparation
1.2 Safety measures prior to use The correct use of the till. supine standing frame requires a precise and careful instruction of the accompanying person. We ask you to read th- rough the Instructions for use carefully prior to initial commissioning of the supine standing frame, and to observe the descriptions. -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The till. supine standing frame is a medical product of risk class 1 for indoor areas and is used for standing training in the event of significantly impaired or non-existing ability to walk or stand. -
Page 7: Contraindications
2. Product description. The till. supine standing frame is used to assume a standing position to achieve positive effects of an upright body position and/or to prepare for gait training. The vertical position has a positive effect on the cardiovascular regulation, the bone metabolism, the peristalsis and urinary diversion. -
Page 8: Use Not In Accordance With The Intended Purpose / Warning Gui
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the supine standing frame if all components have been correctly mounted and adjusted. -
Page 9: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest (standard / • Leg supports (flex) side guidance / shell shape) • Footrests (flex) • Universal adapter for • Foot guidance customised headrests • Simple foot strap • Thorax pelotte pads / pelvis •... -
Page 10: General Settings
2. Product description. 2.8 General settings The till. supine standing frame is delivered completely mounted and in the smallest possible adjustment, unless any pre-adjustments have be requested. Before the user is placed in the supine standing frame, a pre-adjustment must be carried out. -
Page 11: Getting In And Out
2. Product description. 2.9 Getting in and out After all pre-adjustments have been made, first lock all five castors for entering/exiting. To do this, press down the locking device (A) on each castor using the tip of your foot (B). To release the castors, press the locking de- vice up again using the tip of your foot (C). -
Page 12: Transfer
2. Product description. 2.10 Transfer till. can also be pushed carefully and slowly during use (e.g. to other rooms). Here we highly recommend transferring the user in the supine and lowest position. The following measures must be taken beforehand: • all fine adjustments to the individual components must have been carried out (see Point 3). -
Page 13: Settings
Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. As standard, till. is equipped with a tool (A) for adjustment work, with the help of which all provided hexagon socket screws can be adjusted. -
Page 14: Height Adjustment (Via Motor)
45° Fig. 1 reached the desired height. Sizes 3+4 of till. are equipped with an addi- tional safety system for maximum stability in 90° any situation. This safety system ensures that the reclining surface can only be raised to a predefined height, if the reclining surface is in the adjustment range of 45°-90°... -
Page 15: Angle Adjustment (Via Gas Pressure Spring)
3. Settings. 3.3 Angle adjustment (via gas pressure spring) In order to change the angle of the reclining surface for sizes 1+2 (see Point 3.4 for the sizes 3+4) please operate the lever (A), which can be found by default on the body (B) or which is optionally mounted to the right of the push bar (C) and keep it pulled. -
Page 16: Angle Adjustment (Via Motor)
90° respective button as soon as you have reached the desired angle. Keep in mind that sizes 3+4 of till. are equipped with an additional safety system for maximum stability in any situation. This safety system ensures that the reclining surface can only be adjusted from 45°... -
Page 17: Upper Body Support
3. Settings. 3.5 Upper body support till. is available in size 1+2 with a standard upper body support. In addition to this version, there is also a contourable upper body support (see Point 4.4) for size 3+4. Both variants can be adjusted in length. -
Page 18: Pad Elements (For Easy Upper Body Support)
3. Settings. 3.5.1 Pad elements (for easy upper body support) The reclining surface growth is compensated by adding/removing pad elements (A = end piece + B = intermediate piece), which are fixed by means of hook and loop closure. Remove the pad elements (A+B) prior to every adjustment to the upper body support (see Point 3.5) and reattach the required combination of pads. -
Page 19: Pad Elements (For Contourable Upper Body Support)
3. Settings. 3.5.1 Pad elements (for contourable upper body support) The reclining surface growth is compensated by adding/removing pad elements (A = end piece + B = intermediate piece), which are fixed by means of hook and loop and press studs (C). -
Page 20: Adapters For Leg Supports
For till. there are two different adapters for the leg supports (standard + abductable). Using the hexagon socket screws (A) on the rear side of till., the level can be adjusted from 0-5 cm for both variants. For the abductable variant the angle can also be adjusted (see Point 4.5). -
Page 21: Harness
3. Settings. 3.8. Harness To position the user in the till., the basic model already has a chest strap (A) and a pelvic strap (B). Optionally there are also a positioning vest (see Point 4.12.1), a wide chest strap (see Point 4.12.2) and a Pelvi.Loc pelvic strap (see Point 4.12.3). -
Page 22: Accessories
4. Accessories. 4.1 Headrest The headrests is available in three different versions (standard, side guide, shell shape). All can be adjusted in height, depth and angle. Height adjustment To adjust the height, loosen the twist grip (A) and bring the headrest into the desired position. -
Page 23: Thorax And Pelvis Pelotte Pads For Upper Body Support
4. Accessories. 4.3 Thorax and pelvis pelotte pads for upper body support Thorax pelotte pads (A) have an upper arm support and pelvis pelotte pads (B) have a forearm support. They are available each in two different versions. Thorax and pelvis pelotte pads for upper body support (standard) The thorax (A) and the pelvis pelotte pads (B) for the upper body support (standard) are adjustable individually in height,... -
Page 24: Contourable Upper Body Support
After each adjustment tighten the hexagon socket screws again! 4.4 Contourable upper body support The contourable upper body support for till. in sizes 3+4 is equipped with a spring mechanism. It is divided into three areas (shoulder, thorax and hip). For each area... -
Page 25: Adapter For Leg Supports (Abductable)
4. Accessories. 4.5 Adapter for leg supports (abductable) Using the hexagon socket screws (A) on the rear side of till., the level can be adjusted from 0-5 cm. Additionally, using the the hexagon socket screw (B) the angle on each leg can be individually steplessly adjusted between 0°... -
Page 26: Knee Pelotte Pads
4. Accessories. 4.7 Knee pelotte pads The knee pelotte pads are available in two different versions (A = with patella recess / B = with adjustable padded support bra- ckets) which can each be adjusted in width, in depth and angle. Moreover, the height of the knee pelotte pads can be adjusted via the leg length adjustment (see Point 3.7). -
Page 27: Pads For Knee Pelotte Pads
4. Accessories. 4.7.1 Pads for knee pelotte pads This pad (A) which can be fixed around the respective leg of till. is used for additional support of the knee and to prevent excessive hyperextension of the knee (genu recurva- tum). -
Page 28: Foot Guide Incl. Foot Straps
4. Accessories. 4.8.3 Foot guide incl. foot straps The foot guides (A) are mounted on the foot plate. They can be adjusted in width and angle. To adjust the width or the angle, loosen the four hexagon socket screws (B) below the foot plate and bring the foot guides (A) into the desired position. -
Page 29: Wooden Therapy Table
To mount the table, the table rods (B) must be inserted in the table adapters (C) on the frame of till. and fixed with the twist grips (D). To adjust the depth, loosen the twist grips (D) on both sides and bring the wooden therapy table (A) into the desired position. -
Page 30: Push Handles / Push Bars
(E - see Point 3.3) and, if needed, another lever for to adjust the height (F - see Point 3.1). Using the push bar, till. can be pushed in all directions and the height and angle adjustment can be supported. -
Page 31: Harness
4. Accessories. 4.12 Harness To position the user in till., there is also an optional wide chest strap, a positioning vest and the "Pelvi.Loc" pelvic strap in addition to the chest and pelvis straps in the basic version (see Point 3.8). In general, the attached harness adapters (A), which are attached to the body profile, can be positioned individually. -
Page 32: Sub-Frame With Motor Support
1+2. It is installed by default for sizes 3+4, as is the motor for the tilt. In the standard version the motors are operated via a mains cable. Optionally till. is also available with an additional battery pack. The motorised height adjustment for sizes... - Page 33 4. Accessories. • The systems must not be exposed directly to the jet of a high-pressure cleaner. • Connection cables must remain plugged in during cleaning to prevent any water ingress. • Cleaning with a steam cleaner is not permitted. •...
-
Page 34: During Operation
4. Accessories. 4.13.2 During operation • Pay attention to unusual noises and uneven functioning. Stop the actuator/the lifting column immediately should you detect anything unusual. • Should the control unit cause unusual noises or odours during operation, interrupt the power supply as well as the external battery pack (if available). -
Page 35: Manual Operation
If the footrests are in contact with the ground, the downward movement is stopped. The height adjustment rises again automatically by 10 mm to ensure the stability of till. . Despite the safety switch-off, permanent presence of an accompanying person is required when adjusting the motors ! 4.13.7 Battery pack for motor support... - Page 36 4. Accessories. • For safety reasons please pay attention to the stated charging and operating temperature (see Point 6.2). • If the battery pack is too hot, disconnect it and leave the room. Wait 2 hours before taking further steps. •...
-
Page 37: Cleaning And Maintaining
B) on the respective element. 100% Polyester Please also pay attention to our general cleaning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are sprayed on and evenly applied with a soft cloth. -
Page 38: Maintenance Specifications
5. Cleaning and maintaining. 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions - The systems must not be exposed directly to the jet of a high-pressure cleaner. Connection cables must remain plugged in during cleaning to prevent any water ingress. - Pay special attention to the tube-in-tube connections. -
Page 39: Maintenance Plan
Any defects or damage found must be repaired by the specialist dealer or the manufacturer before reuse. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. -
Page 40: Duration Of Use And Re-Use
5. Cleaning and maintaining. 5.5 Duration of use and re-use The expected duration of use of our product, dependent on the usage intensity and amount of re-use, totals up to "8" years, if the usage takes place in accordance with the information in these instructions for use. It may be possible to use the product over and above this time period if it is in a safe condition. -
Page 41: Technical Data
6. Technical data. 6.1 Dimensions Size 1 Size 2 Size 3 Size 4 Body size 75 - 115 cm 100 - 135 cm 120 - 160 cm 145 - 185 cm Upper Pelvis/thorax width 14 - 27 cm 17 - 31 cm 20 - 37 cm 27 - 46 cm body... -
Page 42: Drive System
6. Technical data. 6.2 Drive system System Protection class IPX4 Operating voltage 100 - 240 V AC / 24 V DC Size 1+2 120 W Max. current Size 3+4 200 W Motor nominal voltage 24 V DC Battery pack Type Lithium ion battery Nominal voltage 25.9 V... -
Page 43: Guarantee
7. Guarantee The two-year statutory guarantee period shall apply for all products. It starts with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 44: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... - Page 45 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 DIN EN 60601-1-2:2016 Medizinische elektrische Geräte - Teil 1:...
-
Page 46: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The till. supine standing frame is available in four sizes can can be complemented with various accessories (see Point 4). 8.4 Issue of the document till. - Page 47 Notes.
- Page 48 schuchmann.de...
