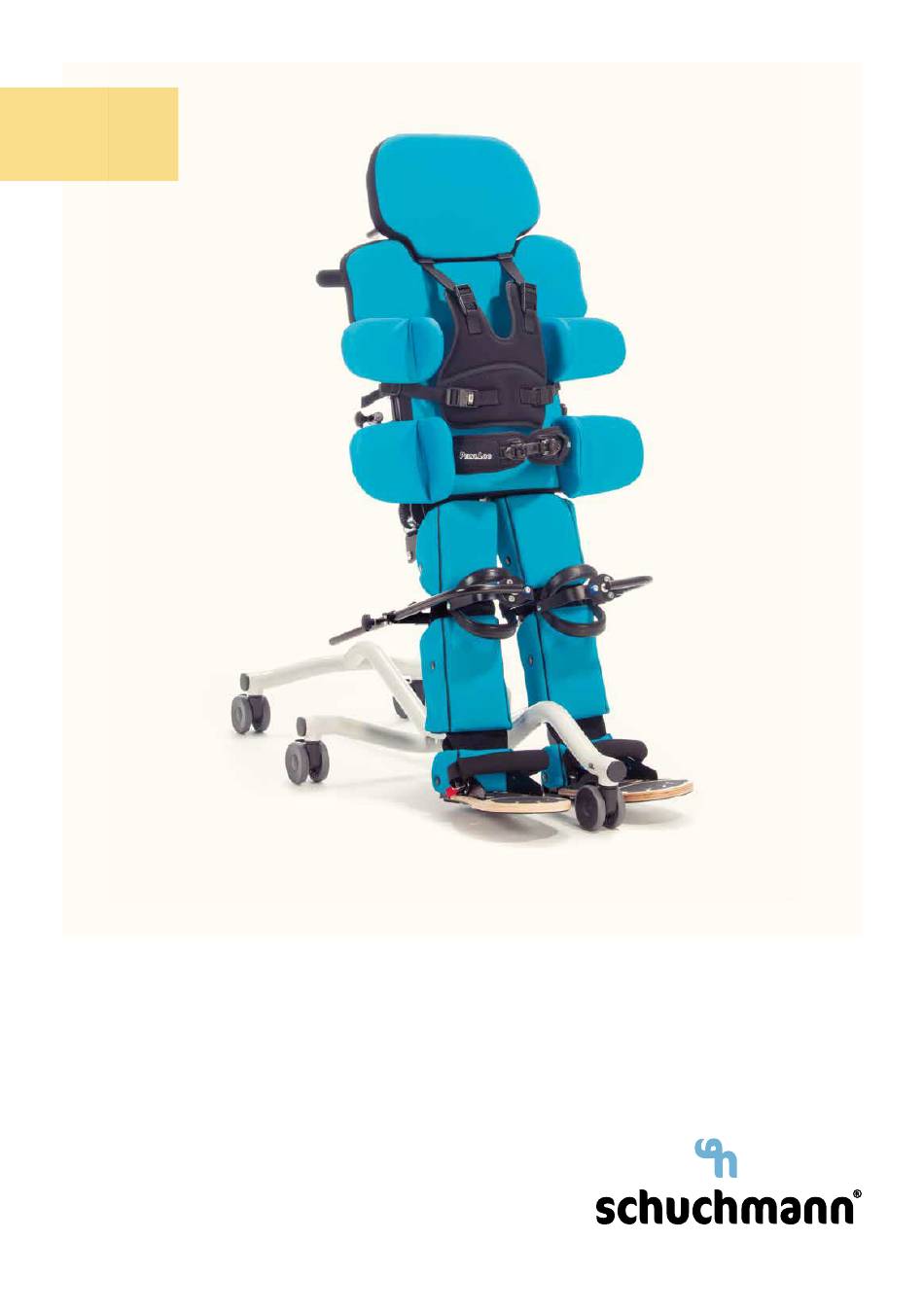

- Page 1 till. Instructions for use. till. The adjustable supine standing frame.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 06 1.1 Delivery ..........................06 1.2 Safety measures prior to use ................06 1.3 Safe disposal .......................06 1.3.1 Packaging ......................06 1.3.2 Product ........................06 1.4 Where to store the Instructions for use ............07 2. Product description..............07 2.1 Material information .................... - Page 4 Contents. 4. Accessories................. 25 4.1 Headrests ........................25 4.1.1 Headrest with angle-adjustable lateral guide........ 25 4.2 Universal adapter for customised headrests ..........26 4.3 Thorax and pelvis pelotte pads for upper body support ....27 4.4 Contourable upper body support ..............28 4.5 Adapter for leg supports (abductable) ............
- Page 5 Contents. 5.4 Spare parts .........................46 5.5 Duration of use and re-use ................. 47 5.6 Elimination of faults and troubleshooting ............ 47 6. Technical data................48 6.1 Dimensions ........................48 6.2 Drive system ........................ 49 7. Guarantee ................... 49 8. Identification................50 8.1 EU Declaration of Conformity ................50 8.2 Serial number / date of manufacture ............
-
Page 6: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and any transport damage. Inspect the goods in the presence of your forwarder. Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. -
Page 7: Where To Store The Instructions For Use
Please store these Instructions for use carefully and ensure that these inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www. schuchmann.de . 2. Product description. 2.1 Material information... -
Page 8: Application Areas, Use According To The Intended Purpose
2. Product description. 2.3 Application areas, use according to the intended purpose The till. supine standing frame is a medical product of risk class 1 for indoor areas and is used for standing training in the event of significantly impaired or non-existing ability to walk or stand. -
Page 9: Contraindications
2. Product description. 2.3.2 Contraindications In general, a doctor or orthopaedist should determine if there is any cont- raindication. Any type of pain is to be considered a contraindication. Strong contractures of the leg joint chain, extreme misalignment of the spine and above all severe foot deformities, which cannot be compensa- ted with shoes, can present a contraindication for the standing treatment. -
Page 10: Use Not In Accordance With The Intended Purpose / Warning Gui
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the supine standing frame if all components have been correctly mounted and adjusted. -
Page 11: List Of Accessories
2. Product description. 2.6 List of accessories • Headrest (standard / shell shape • Safety bolts (for release lever) / lateral guide / with angle-ad- • Adapter for leg supports justable lateral guide) (abductable) • Universal adapter for • Leg supports (flex) customised headrests •... -
Page 12: General Settings
2. Product description. General settings The till. supine standing frame is delivered completely mounted and in the smallest possible adjustment, unless any pre-adjustments have be re- quested. Before the user is placed in the supine standing frame, a pre-ad- justment must be carried out. User dimensions Presettings Carry out adjustment on the... -
Page 13: Getting In And Out
2. Product description. Getting in and out After all pre-settings have been made, plea- se first lock all castors, except for the castor with direction lock (see Point 2.10.1), for get- ting in and out. To do this, press down the lo- cking device (A) on each castor using the tip of your foot (B). -
Page 14: Transfer
2. Product description. 2.10 Transfer till. can also be pushed carefully and slowly during use (e.g. to other rooms). Here we highly recommend transferring the user in the supine and lowest position (A). A = min. 2.10.1 Castor with direction lock For easier movement, the sub-frame of any size is equipped with a castor (B) with direc- tion lock (C). - Page 15 2. Product description. For size 3+4 in the supine position: • Push bar (A - if available) • Shoulder (B) and leg supports (C) at the same time For size 3+4 in the standing position: • Push bar (A - if available) •...
-
Page 16: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extre- mities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 17: Height Adjustment (Via Motor)
3. Settings. 3.2 Height adjustment (via motor) The adjustment of the reclining surface height for sizes 3+4 (optionally also for size 1+2) can be done using an electrical motor. It has a safety switch off (see Point 4.13.6) and is con- trolled manually (A). -
Page 18: Angle Adjustment (Via Gas Pressure Spring)
3. Settings. 3.3 Angle adjustment (via gas pressure spring) In order to change the angle of the reclining surface for sizes 1+2 (see Point 3.4 for the si- zes 3+4) please operate the lever (A), which can be found by default on the body (B) or which is optionally mounted to the right of the push bar (C) and keep it pulled. -
Page 19: Angle Adjustment (Via Motor)
3. Settings. 3.4 Angle adjustment (via motor) The angle adjustment of the reclining surface for sizes 3+4 is done using an electrical mo- tor (see Point 3.3 for sizes 1+2). It has a safety switch-off (see Point 4.13.4) and is controlled manually (A - see Point 4.13.5). -
Page 20: Upper Body Support
3. Settings. 3.5 Upper body support till. is available in size 1+2 with a standard upper body support. In addition to this ver- sion, there is also a contourable upper body support (see Point 4.4) for size 3+4. Both va- riants can be adjusted in length. -
Page 21: Pad Elements (For Easy Upper Body Support)
3. Settings. 3.5.1 Pad elements (for easy upper body support) The reclining surface growth is compensa- ted by adding/removing pad elements (A = end piece + B = intermediate piece), which are fixed by means of hook and loop closu- re. -
Page 22: Pad Elements (For Contourable Upper Body Support)
3. Settings. 3.5.2 Pad elements (for contourable upper body support) The reclining surface growth is compensated by adding/removing pad elements (A = in- termediate piece), which are fixed by means of hook and loop press studs (B). Remove the pad elements (A) prior to every adjustment to the upper body support (see Point 3.5) and reattach the required combination of pads. -
Page 23: Adapters For Leg Supports
3. Settings. 3.6 Adapters for leg supports For till. there are two different adapters for the leg supports (standard + abductable). Using the hexagon socket screws (A) on the rear side of till., the level can be adjusted from 0-5 cm for both variants. For the ab- ductable variant the angle can also be ad- justed (see Point 4.5). -
Page 24: Harness
3. Settings. 3.8. Harness To position the user in the till., the basic mo- del already has a chest strap (A) and a pelvic strap (B). Optionally there are also a positio- ning vest (see Point 4.12.1), a wide chest strap (see Point 4.12.2) and a Pelvi.Loc pelvic strap (see Point 4.12.3). -
Page 25: Accessories
4. Accessories. 4.1 Headrests There are four different headrests available for till.: • Standard • Shell form • Lateral guide • with angle-adjustable lateral guide (see Point 4.1.1) All headrests can be adjusted in height, depth and angle. Height adjustment To adjust the height, loosen the twist grip (A) and bring the headrest into the desired position. -
Page 26: Universal Adapter For Customised Headrests
4. Accessories. 4.2 Universal adapter for customised headrests For headrests that are not from our range of products, we offer a headrest adapter (15x15mm - square). It permits height and depth adjust- ment. Height adjustment To adjust the height, loosen the twist grip (A) and bring the headrest into the desired po- sition. -
Page 27: Thorax And Pelvis Pelotte Pads For Upper Body Support
4. Accessories. 4.3 Thorax and pelvis pelotte pads for upper body support Thorax pelotte pads (A) have an upper arm support and pelvis pelotte pads (B) have a forearm support. They are available each in two different versions. Thorax and pelvis pelotte pads for upper body support (standard) The thorax (A) and pelvis pelotte pads (B) for upper body support (standard) can be adjusted individually in height,... -
Page 28: Contourable Upper Body Support
4. Accessories. Depth adjustment For the pelotte pads that can be adjusted in depth (for the contourable upper body sup- port), it is also necessary to adjust the depth. To set the depth, loosen the hexa- gon socket screw (A) on the respective pelotte pad and bring the respective pelotte pad into the desired position. -
Page 29: Adapter For Leg Supports (Abductable)
4. Accessories. 4.5 Adapter for leg supports (abductable) Using the hexagon socket screws (A) on the rear side of till., the level can be adjusted from 0-5 cm. Additionally, using the the hexagon socket screw (B) the angle on each leg can be indi- vidually steplessly adjusted between 0°... -
Page 30: Knee Pelotte Pads
4. Accessories. 4.7 Knee pelotte pads The knee pelottes are available in two different versions (with patella recess - see point 4.7.1) and flexible knee positioners (FKP) with positioning straps that can be adjusted in length - see point 4.7.2). These can be adjusted in width, depth and angle. -
Page 31: Flexible Knee Positioner (Fkp)
4. Accessories. 4.7.2 Flexible knee positioner (FKP) The flexible knee positioners (A) have positi- oning straps (B) that uniformly distribute the pressure on the knee and thus prevent the occurrence of individual pressure marks. For optimal positioning of the knees, the po- sitioning straps (B) can be adjusted indepen- dently of each other. -
Page 32: Footrests (Flex)
4. Accessories. 4.8.2 Footrests (flex) The footrests (flex), like the foot rests (stan- dard) offer a rotation range of +/-15° (see Point 4.8.1). Furthermore they can be adjus- ted to a Pes equinus (0°-20°) or Pes suppi- natus (0°-15°). To do this, turn the hexagon socket screws (A) anti-clockwise to bring the footrests into the Pes equinus position. -
Page 33: Therapy Table
4. Accessories. 4.9 Therapy table The therapy table is available as version "standard" (see point 4.9.1) and as version with "quick closure" (see point 4.9.2). For both versions there is a table support pad (see point 4.9.3). 4.9.1 Wooden therapy table (standard) The wooden therapy table (A) has an edge and attached in the front and removed, ad- justed in depth, height and angle. -
Page 34: Wooden Therapy Table (With Quick Adjustment)
4. Accessories. 4.9.2 Wooden therapy table (with quick adjustment) The wooden therapy table (A) has an edge and attached in the front and removed, adjusted in depth, height and angle. On the one hand, you can do this in the basic settings using ta- ble rods (B) and the table mounts (C) on the frame of till. -
Page 35: Push Bar
4. Accessories. 4.10 Push bar For sizes 1 + 2 a permanently mounted push bar (A) is optionally available. It is located on the headrest adapter (or on an adapter if no headrests is mounted). On this push bar there is a lever to adjust the angle (B - see Point 3.3) and , if needed, another lever to adjust the height (C - see Point 3.1). -
Page 36: Safety Bolt
4. Accessories. 4.11 Safety bolt Using the safety bolt (A), the reclining surface is secured against unintentional angle ad- justment (only when adjusting the angle by means of gas pressure spring - see Point 3.3). Insert the safety bolt (G) into the dedicated hole (B) on the release lever (C) after having brought the reclining surface into the desired position (see Point 3.3). -
Page 37: Positioning Vest
4. Accessories. 4.12.1 Positioning vest The positioning vest (A) is attached in the upper area (B) and in the lateral area (C) on the harness adapters. The straps of the positioning vest (A) are threaded through he lateral belt guide on the click buckles. After- wards, the click buckles are pressed down for positioning. -
Page 38: Sub-Frame With Motor Support
4. Accessories. 4.13 Sub-frame with motor support The sub-frame of till. can be optionally equipped with a motor for height adjustment for sizes 1+2. It is installed by default for sizes 3+4, as is the motor for the tilt. In the stan- dard version the motors are operated via a mains cable. - Page 39 4. Accessories. • Connection cables must remain plugged in during cleaning to prevent any water ingress. • Cleaning with a steam cleaner is not permitted. • No modifications may be carried out to any electrical components. In the event of repairs, please contact the specialist dealer (see Point 8.5). •...
-
Page 40: During Operation
4. Accessories. 4.13.2 During operation • Pay attention to unusual noises and uneven functioning. Stop the actu- ator/the lifting column immediately should you detect anything unusual. • Should the control unit cause unusual noises or odours during operation, interrupt the power supply as well as the external battery pack (if avai- lable). -
Page 41: Manual Operation
4. Accessories. 4.13.5 Manual operation The manual operation element(A) is connec- ted to the control unit via a cable. The height is adjusted using buttons B + C. Using but- tons D + E the tilt of the reclining surface can also be adjusted for sizes 3+4. - Page 42 4. Accessories. • Defective or damaged lithium-ion battery packs are not permitted for transport. • The duty cycle printed on the label of the battery pack must always be adhered to. If it is exceeded there is the risk of damage to the drive sys- tem.
-
Page 43: Cleaning And Maintaining
5. Cleaning and maintaining. Prohibited: • Heating or burning the battery packs. • Short-circuiting the battery pack. • Do not expose the battery packs to strong load or impacts. • Break or damage the battery packs. • Use battery packs that show signs of damage or corrosion. •... -
Page 44: Cleaning And Disinfecting
100% Polyester Please also pay attention to our general clea- ning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 45: Maintenance Specifications
5. Cleaning and maintaining. 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions - The systems must not be exposed directly to the jet of a high-pres- sure cleaner. Connection cables must remain plugged in during cleaning to prevent any water ingress. - Pay special attention to the tube-in-tube connections. -
Page 46: Maintenance Plan
Any defects or damage found must be repaired by the specialist dealer or the manufacturer before reuse. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. -
Page 47: Duration Of Use And Re-Use
5. Cleaning and maintaining. 5.5 Duration of use and re-use The expected duration of use of our product, dependent on the usage intensity and amount of re-use, totals up to "8" years, if the usage takes place in accordance with the information in these instructions for use. It may be possible to use the product over and above this time period if it is in a safe condition. -
Page 48: Technical Data
6. Technical data. 6.1 Dimensions Size 1 Size 2 Size 3 Size 4 Body size 75 - 115 cm 100 - 135 cm 120 - 160 cm 145 - 185 cm Upper Pelvis/thorax width 14 - 27 cm 17 - 31 cm 20 - 37 cm 27 - 46 cm body... -
Page 49: Drive System
6. Technical data. 6.2 Drive system system Protection class IPX4 Protection class (electrical) SK 2 Operating voltage 100 - 240 V AC / 24 V DC Size 1+2 234 VA Max. current Size 3+4 390 VA Frequency 50 - 60 Hz Motor nominal voltage 24 V DC Battery pack... -
Page 50: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... - Page 51 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 DIN EN 60601-1:2013 Medizinische elektrische Geräte –...
-
Page 52: Serial Number / Date Of Manufacture
Date of manufacture Barcode UDI-DI Barcode UDI-PI schuchmann.de • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The till. supine standing frame is available in four sizes can can be com- plemented through a diverse range of accessories (see point 4).
