Summary of Contents for Schuchmann Fridolin 2

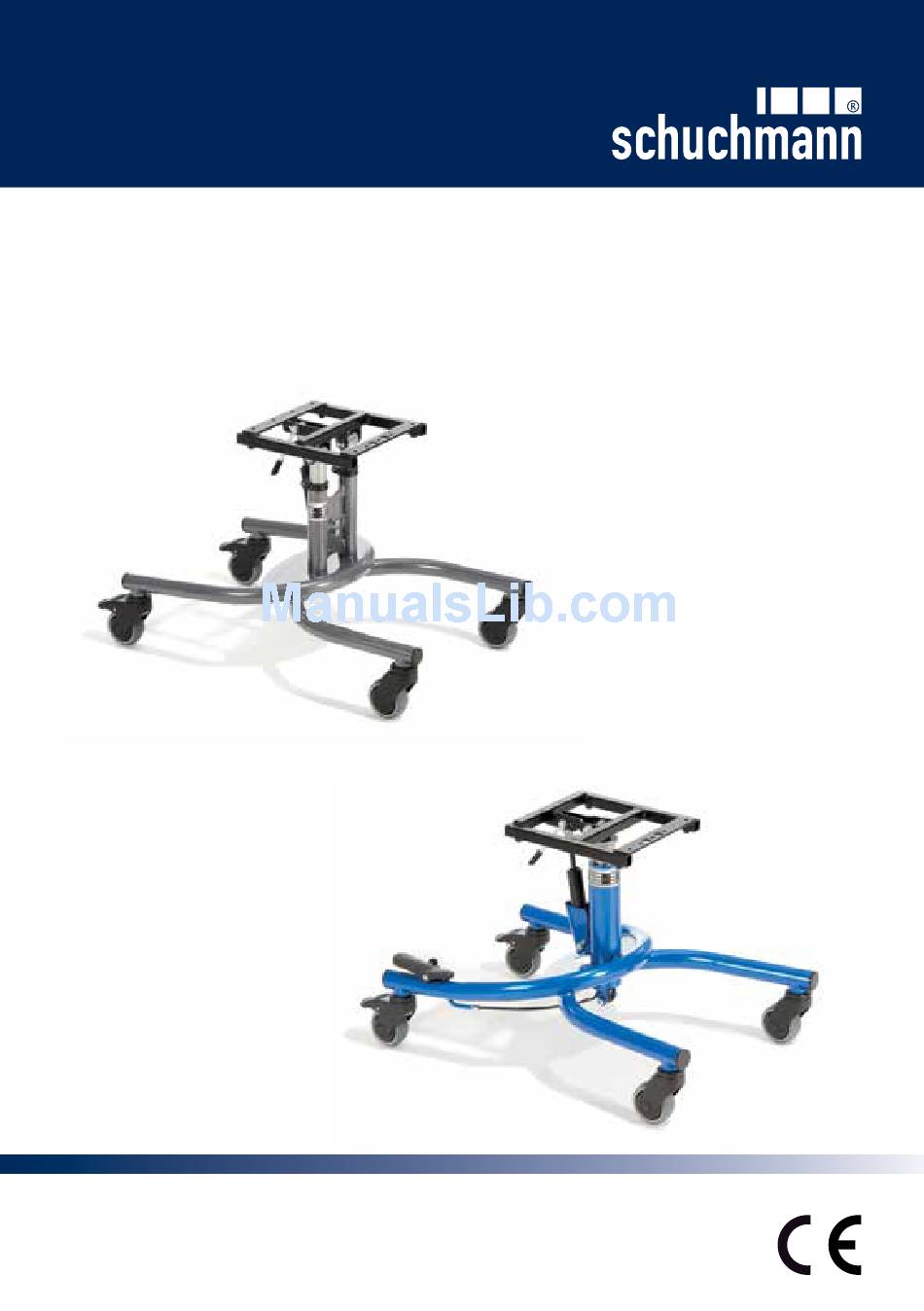

- Page 1 FRIDOLIN 1 + 2 The functional sub-frame for interior use Instructions for use...
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your Schuchmann Team...
-
Page 3: Table Of Contents
Contents Page 1. Preparation of the sub-frame for use 1.1 Delivery...................... 2 1.2 Safety measures prior to use..............2 1.3 Safe disposal..................... 2 1.3.1 Packaging..................2 1.3.2 Product.................... 2 1.4 Location of the instructions................ 2 2. Product description 2.1 Material information..................3 2.2 Handling / transport.................. -
Page 4: Preparation Of The Sub-Frame For Use
1. Preparation of the sub-frame for use 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (deter- mination of the faults) to be made in the presence of the forwarder. -
Page 5: Product Description
• The max. load (see Point 5) may not be exceeded. • Do not use the respective sub-frame if it has defective, worn or missing parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. -
Page 6: Basic Model Equipment
• Tilt adjustment of the seat unit via gas pressure spring 500N • Mechanical height adjustment (on FRIDOLIN 1) • Height adjustment via gas pressure spring (on FRIDOLIN 2) • 4 castors 75 mm, 2 with locking devices • Incl. support head for trapezoidal and external adapter and foot bench plug-in mechanism 2.6 List of accessories... -
Page 7: Settings
(D). Firmly tighten all screws. FRIDOLIN 2: The sub-frame can be lowered via the gas pressure spring with the aid of the height ajust- ment to low table heights. To do this, the foot pedal... -
Page 8: Seat Angle Adjustment
3.3 Seat angle adjustment In order to adjust the angle of the seat unit, the hand trigger (A) at the rear below the seat pan support must be actuated (by pulling it). To do this, the rear part of the lever must be pressed into the key lock. -
Page 9: Central Locking Brake
Seat pan adapter, trapezoidal shape: Place the seat pan with the trapezoidal shaped mounted adapter piece on the trapezoidal shaped seat pan adapter plate and push back. Here the patented closure engages automatically. Now tighten the knurled knob (A) of the patented clo- sure. -
Page 10: Handling Push Handle / Bar
3.7 Push bar handling The push bar makes it easier to relocate the room frame, and can be adjusted in depth and angle. The angle is adjusted by releasing the quick- release clamp (A) on both sides. Then bring the push bar into the correct position and tighten the quick-release clamp (A) again. -
Page 11: Repairs And Cleaning
It is important to thoroughly dry the seat pan sub-frame after cleaning. Please also pay attention to our general cleaning and hygiene advice. You can find them at www.schuchmann-reha.de/FRIDOLIN. 4.2 Repairs Please carry out a daily visual inspection and check the sub-frame regularly for cracks, breaks, missing parts and malfunctions. - Page 12 5. Technical data Dimensions - basic model FRIDOLIN 1 FRIDOLIN 1 Size 1 FRIDOLIN 1 Size 2 Height of seat pan support 41 - 53 cm 41 - 53 cm Seat angle (-) 5° - 35° (-) 5° - 35° Total length 66 cm 77 cm...
-
Page 13: Technical Data (Fridolin 1+2)
Technical data Dimensions - basic model FRIDOLIN 2 FRIDOLIN 2 Size 1 FRIDOLIN 2 Size 2 Height of seat pan support 41 - 53 cm 41 - 53 cm Seat angle (-) 5° - 35° (-) 5° - 35° Total length... -
Page 14: Guarantee
6. Guarantee The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or de- liver a new product at our discretion. -
Page 15: Identification
26 01 000 (FRIDOLIN 1 Size 1) Art. No.: 26 01 000 (FRIDOLIN 1 Size 2) Art. No.: 22 01 001 (FRIDOLIN 2 Size 1) Art. No.: 22 02 000 (FRIDOLIN 2 Size 2) the relevant regulations of the regulations and guidelines for product class •... -
Page 16: Serial Number / Date Of Manufacture
Max. load Max. load Date of manufacture www.schuchmann-reha.de · info@schuchmann-reha.de · Fon +49 (0) 5405 / 909 - 0 7.3 Product version The FRIDOLIN 1 + 2 sub-frames are each available in two sizes, and can be sup- plemented through a diverse range of accessories.
