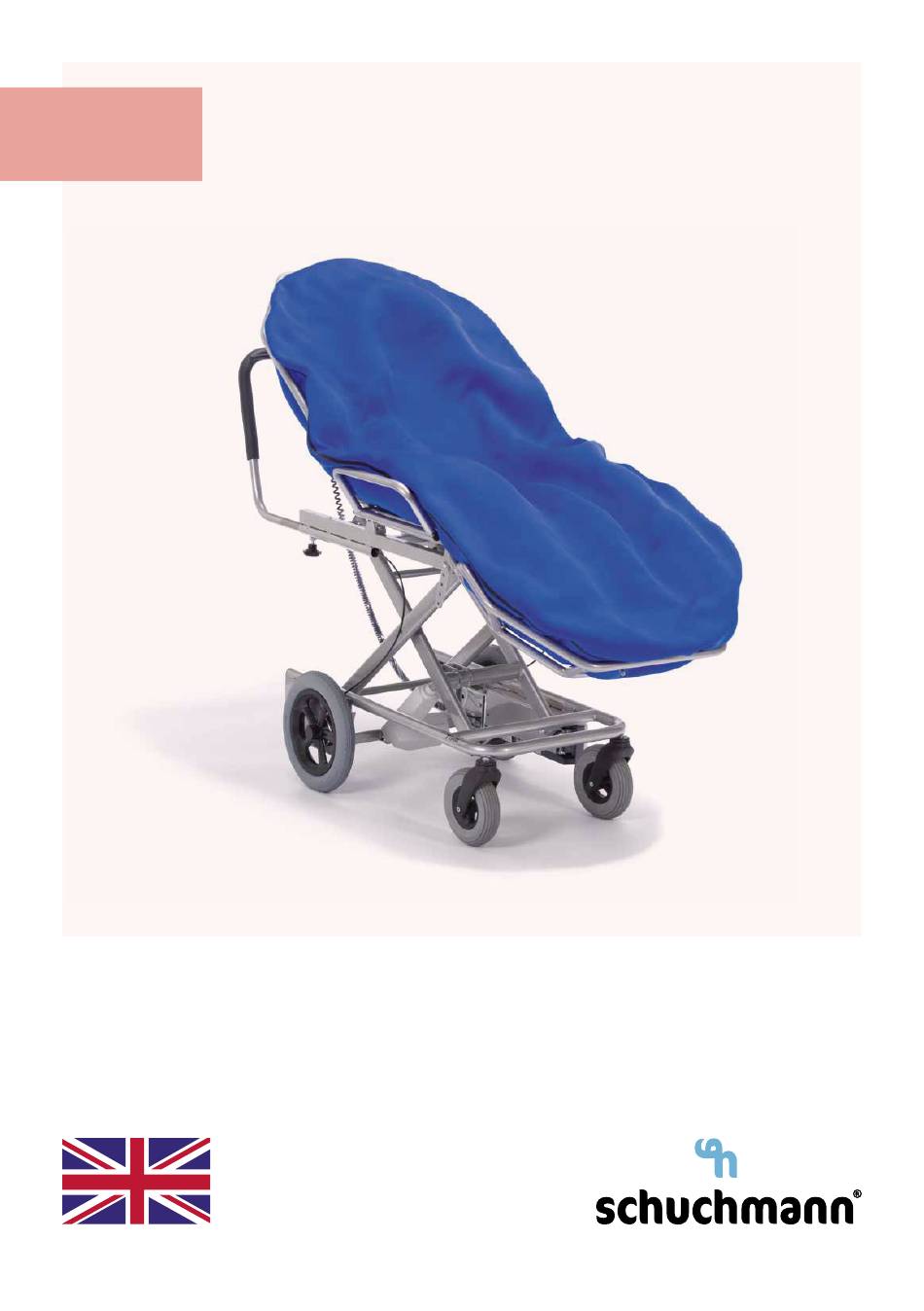

- Page 1 Instructions for use. tina. The cradle sub-frame with cradle system.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indication ...................... - Page 4 Contents. 6. Technical data................20 6.1 Dimensions - cradle sub-frame ................20 6.2 Dimensions - cradle system ................20 6.3 Electrical data ......................21 6.4 Tyres ..........................21 7. Guarantee................... 21 8. Identification................22 8.1 EU Declaration of Conformity ................22 8.2 Serial number / date of manufacture ............
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these In- structions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de. -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The tina. cradle sub-frame with cradle system is a medical product of risk class 1 and permits children, youths and adults, who require care while lying down, to actively participate in family life. Any other use or use over and above this purpose shall be considered not in accordance with the intended purpose. -
Page 7: Indication
2. Product description. 2.3.1 Indication The tina. cradle sub-frame with cradle system is designed for users with motor or motor-mental impairments and is used to permit/ensure relaxed or therapeutically favourable positions and postures (sitting, lying down), to perceive the surroundings or to improve motor skills. -
Page 8: Equipment For Basic Model
2. Product description. 2.5 Equipment for basic model • Electrical height adjustment via manual switch • 12" rear wheels with pneumatic tyres and drum brake, 8" PU steering wheels • Universal support points for cradles of all construction types • Frame colour: White aluminium (silver) 2.6 List of accessories •... -
Page 9: Product Overview
2. Product description. 2.8 Product overview The Fig. below is intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. Push handles Vacuum mattress Adjustable Head section Seat section 12“... -
Page 10: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 11: Handling Battery Pack
3. Settings. 3.4 Handling battery pack tina. is equipped with a Linak control unit, a battery pack and a charger. The charger is firmly mounted on the wall (only in dry rooms) close to a 220 V socket. Ensure during assembly that there is neither a power nor a water line behind the wall at this point. -
Page 12: Drum And Parking Brake
3. Settings. 3.6 Drum and parking brake The drum brake allows safe braking, which is independent of the tyre pressure. It is activated with the two brake levers (A) on the push bar with four engagement options. To do this, pull the brake lever (A) and press the red safety catch (B) into one of the engagement options to fix the brake. -
Page 13: Adaptation
4. Vacuum cushion by VakuForm. 4.2 Adaptation First ventilate the system until the patient sinks into the material by adding air via the valve (A) using the hand pump included in delivery. A gel-type consistency should be aimed for. Avoid bloating of the system. Prior to positioning the patient, adjust the support system so that the granules in the cushion cannot slip about. -
Page 14: Discharge Of The Granules
4. Vacuum cushion by VakuForm. We recommend taking the patient one last time out of the system and to check the Neoprene cover for formation of folds. Should this occur in rare cases, you can simply smooth over the folds by tugging on the Neoprene cover. - Page 15 4. Vacuum cushion by VakuForm. interrupted, there is a risk that the flow of granules will stagnate and that the valve will become blocked. If this happens, you will have to briefly press air back from the transfer bag into the support system. The blockage should then clear quickly.
-
Page 16: Care Instructions For The Vacuum Cushion
4. Vacuum cushion by VakuForm. 4.4 Care instructions for the vacuum cushion With regard to the care of our products, we supply the following care instructions: • The products can be hand-washed at 60° • The products can be disinfected with standard commercial disinfectants •... -
Page 17: Cleaning And Servicing
(such as A + B) on the 100% Polyester respective element. Please also pay attention to our general cleaning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. -
Page 18: Maintenance Specifications
5. Cleaning and maintaining. 5.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 19: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. -
Page 20: Technical Data
3. Settings. 6. Technical data. 6.1 Dimensions - cradle sub-frame for three-section for single-section cradle system cradle system Height of cradle support from floor 53 - 79 cm 53 - 79 cm Adjustable back angle 0° - 50° Seat angle is steplessly adjustable 0°... -
Page 21: Electrical Data
6. Technical data. 6.3 Electrical data • Battery packs: Operating voltage 24 V DC Capacity 2.9 Ah Duty cycle max. 2 min continuous operation, 18 min. break Protection class IP 65 • Control unit: Output voltage 24 V DC Duty cycle max. -
Page 22: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... - Page 23 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 DIN EN 60601-2-52:2016 Medizinische elektrische Geräte -...
-
Page 24: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The tina. cradle sub-frame with cradle system is available in two variants and can be supplemented through a variety of accessories (see Point 2.6). 8.4 Issue of the document Instructions for use tina.
