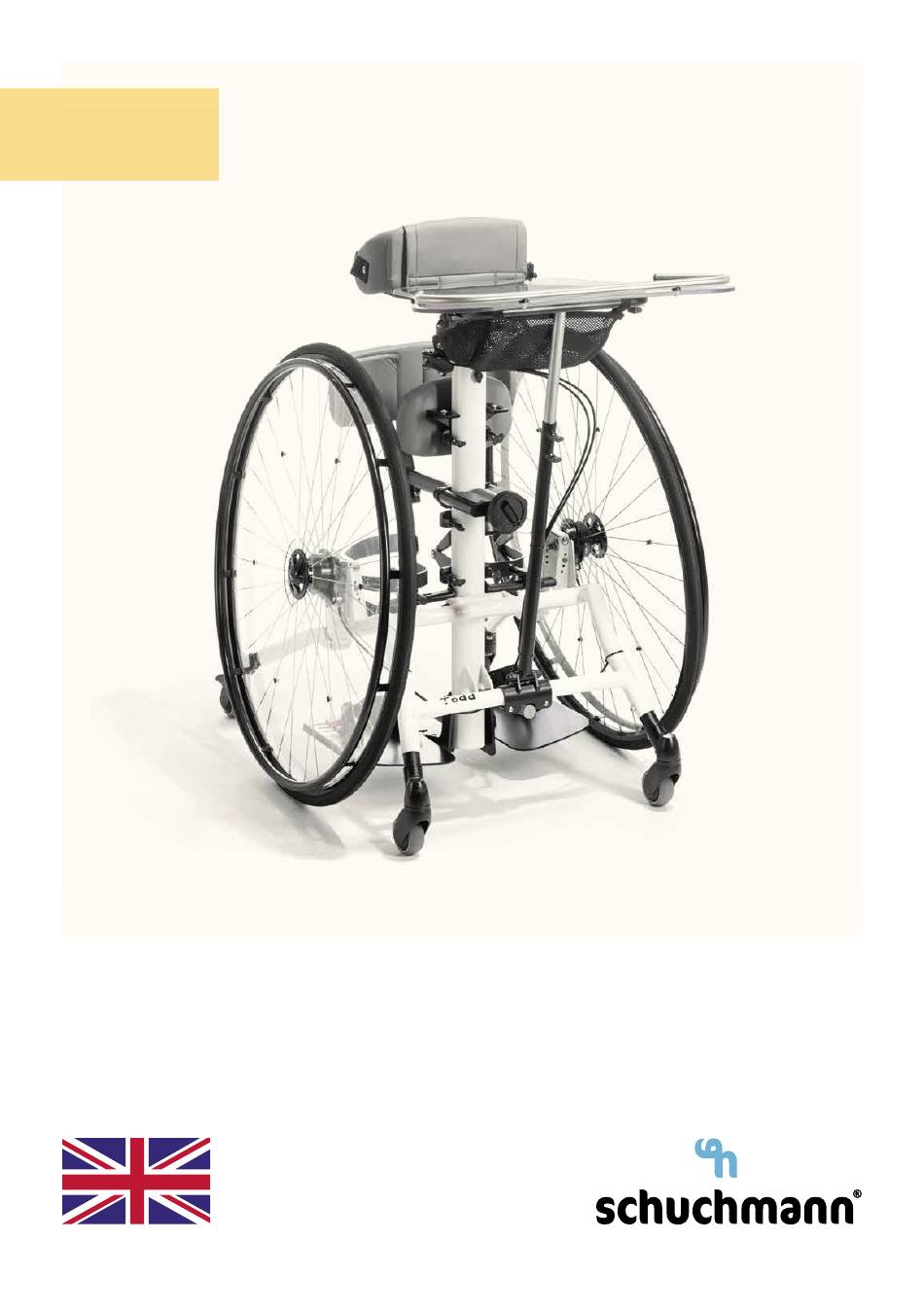

- Page 1 Instructions for use. todd. the upright trainer.
- Page 2 Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling and transport ..................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 3.16.2 Working table made from wood with edge ........26 3.17 Storage basket ......................26 4. Cleaning and maintaining............27 4.1 Cleaning and disinfecting ..................27 4.1.1 Cleaning .......................27 4.1.2 Disinfection ......................27 4.2 Servicing ........................27 4.3 Maintenance .......................27 4.3.1 Maintenance specifications ..............28 4.3.2 Maintenance plan ..................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these instructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description
(set lowest height etc.). 2.3 Application areas, use according to the intended purpose The todd. upright trainer is a medical product of risk class 1 for indoors and is used for upright training with severely impaired or non-existent ability to stand. -
Page 7: Contraindications
2. Product description. 2.3.2 Contraindications In general, the indications for standing should be approved by a doctor or orthopedist. It should therefore be clarified prior to procurement whether contraindications exist for the patient. In general, any type of pain repre- sents a contraindication. -
Page 8: Use Not In Accordance With The Intended Purpose / Warning Gui
• Angular adjustment of the central column mechanical from 0° - 15 • incl. drum brakes, easy to operate via locking lever • Adjustable wheel camber 2.5.1 Equipment acc. HMV (Medical Aids Register) Acc. the HMV (Medical Aids Register), the upright trainer todd. requires the provision of heel edges and footstraps. -
Page 9: List Of Accessories
2. Product description. 2.6 List of accessories • Chest structure • Headrest • Chest pelotte pad with lateral • Therapy table with edge guide • Work table (for size 3+4) • Backstrap • Storage basket (for size 1+2) • Knee pelotte pads •... -
Page 10: General Settings
2. Product description. General settings todd. is delivered completely assembled and in the smallest possible setting. Before the user is placed into the upright trainer, the necessary presettings must be carried out. User dimensions Presettings Taking the user's Carrying out adjustments to the upright trainer... -
Page 11: Getting In And Out
(if folding buttocks pelotte pad mount is in- stalled). Pull the release cable (G) for folding down and keep it slightly tense. Now you can approach todd. from the rear with the user in the wheelchair / buggy etc. and secure against unintentional rolling away. -
Page 12: Angular Adjustment Of The Central Column
3. Settings. 3.1 Angular adjustment of the central column The central column can be mechanically ad- justed from 0° - 15° using a clamping lever. Please secure the upright trainer against unintentional rolling away and lock the two support rollers (A) or the drum brake (B). In order to adjust the angle, loosen the clam- ping lever (C), bring the central column into the required position and turn the clamping... -
Page 13: Rear Wheels / Drum Brake
3. Settings. 3.3 Rear wheels / drum brake The drive wheels are puncture-free and removable. Please press the button in the middle of the wheel hub (A) and the drive wheel can be easily removed and replaced. When inserting the quick release axles, you should be able to hear it engage with an audible "click". -
Page 14: Wheel Camber
(A) can be changed and an optimal gripping distance for the user can be achie- ved. Like this, todd. can also be adjusted individually to the pelvis width of the user. To do this, please remove the hexagon socket... -
Page 15: Support Rollers
3.5 Support rollers The standard version of todd. has height-ad- justable support rollers in the front (A) and rear (B). The abductable version of todd. has a support roller (C) at the back. The front support rollers (A) are firmly moun- ted on the base frame. -
Page 16: Foot Support
3. Settings. 16 16 3.6 Foot support The foot support can be adjusted in height at the central column. To do this, undo the four screws (A) and bring the foot support into the desired position. Additionally, the foot support can also be adjusted in depth. -
Page 17: Heel Edges With Footstraps
3. Settings. 3.8 Heel edges with footstraps The heel edges with footstraps (A) are moun- ted on the foot support or the individually adjustable footrests. They can be adjusted in width, depth and angle. In order to adjust the width or the angle, loo- sen the wing screws (B) below the respective footrest and bring the heel edges (A) into the required position. -
Page 18: Pelvis Positioning
3. Settings. 18 18 3.10 Pelvis positioning The pelvic positioner, pelvic positioner with lateral guide (see point 3.10.1) and the com- bined spine and pelvis pelotte pad (see point 3.10.2) can be adjusted in height and in depth via the mount (A) on the central co- lumn. -
Page 19: Combined Spine And Pelvis Pelotte Pad
3. Settings. 3.10.2 Combined spine and pelvis pelotte pad The combined spine and pelvis pelotte pad (A) can be adjusted in width and depth. The height can be adjusted individually on both sides. To do this, undo the screw (B) and bring the respective pelotte pad into the desired position. -
Page 20: Buttocks Pelotte Pad / Pelvic Guidance Pelotte Pad With Lateral
3. Settings. 3.11 Buttocks pelotte pad / pelvic guidance pelotte pad with lateral guide The buttocks pelotte pad (A) and the pelvic guidance pelotte pad with lateral guide (B) can be adjusted in height and depth using the buttocks pelotte pad mount (see point 3.11.1). - Page 21 3. Settings. The folding buttocks pelotte pad mount (A) can also be folded downwards for transfer. Before transferring the user, please remove first the respective buttocks pelotte pad (see point 3.11). In order to do this, loosen the wing screw (C) and pull out the buttocks pelotte pad upwards.
-
Page 22: Chest Pelotte Pad / Chest Pelotte Pad With Lateral Guide
3. Settings. 3.12 Chest pelotte pad / chest pelotte pad with lateral guide The chest pelotte pad (A) and the chest pe- lotte pad with lateral guide (B) can be adjus- ted in height and depth. The height can be adjusted via the height ad- justment of the central column (see point 3.2). -
Page 23: Backstrap
3. Settings. Furthermore, the chest pelotte pad with la- teral guide (A) is optionally also available as version where the angle can be adjusted. In order to adjust the angle, undo the screw (B), bring the chest pelotte pad into the desired position and tighten the screw (B) again. -
Page 24: Back Pelotte Pad
3. Settings. 3.14 Back pelotte pad The height and the depth of the back pelot- te pad (A) can be adjusted by means of the buttocks pelotte pad mount (see point 3.11.1). The back pelotte pad (A) itself can also be adjusted in height and angle and is plugged into the mount of the buttocks pelotte pad (B). -
Page 25: Table
3. Settings. 3.16 Table Optionally, there is a therapy table made from Plexiglas (see point 3.16.1) and a working table made from wood (see point 3.16.2 - only for sizes 3+4) available. Both are adjustable in depth, height and angle. 3.16.1 Therapy table made from Plexiglas with edge The height adjustment of the therapy table... -
Page 26: Working Table Made From Wood With Edge
3.16.2 Working table made from wood with edge The working table made from wood (A) is available for todd. in sizes 3+4. The height of the working table is adjusted via the teles- copic central column (see point 3.2). In order to adjust the depth, please loosen the... -
Page 27: Cleaning And Maintaining
100% Polyester Please also pay attention to our general clea- ning and hygiene advice. This can be found at www.schuchmann.de/mediathek. 4.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. -
Page 28: Maintenance Specifications
4. Cleaning and maintaining. 4.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 29: Spare Parts
4. Cleaning and maintaining. 4.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 7.5) stating the serial number of the product. -
Page 30: Technical Data
5. Technical data. Dimensions Size 1 Size 2 Size 3 Size 4 Body size 75 - 110 cm 100 - 130 cm 120 - 155 cm 150 - 175 cm Wheel size 24“ 28“ 30“ 32“ 36“ 32“ 36“ 36“ 40“... -
Page 31: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 32: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 33: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 7.3 Product version The todd. upright trainer is available in four sizes and can be supplemented through a diverse range of accessories (see Point 2.6). 7.4 Issue of the document todd. - Page 34 Notes.
- Page 35 Notes.
- Page 36 schuchmann.de...
