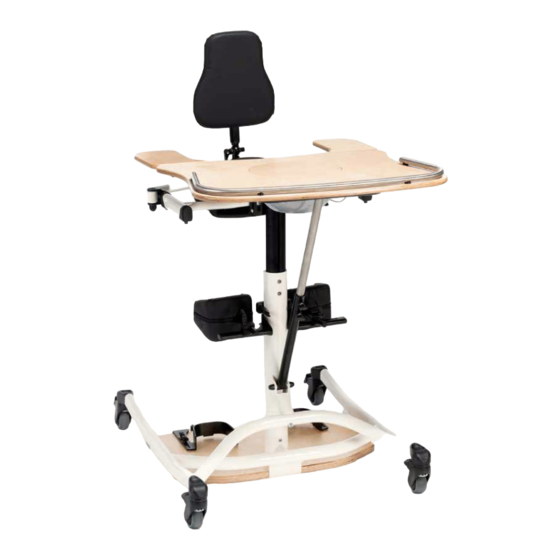

ted. The simple prone standing frame.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ted. and is the answer not in the manual?

Questions and answers

Related Manuals for Schuchmann ted.

Summary of Contents for Schuchmann ted.

  • Page 1 ted. Instructions for use. ted. The simple prone standing frame.
  • Page 2 We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling and transport ..................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06...
  • Page 4 Contents. 4.2 Servicing ........................20 4.3 Maintenance ......................20 4.3.1 Maintenance specifications ..............21 4.3.2 Maintenance plan ..................21 4.4 Spare parts ......................... 22 4.5 Duration of use and re-use ................22 5. Technical data................23 6. Guarantee................... 23 7. Identification................24 7.1 EU Declaration of Conformity ................

  • Page 5: Preparation

    Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. Please report all details to Schuchmann UK. 1.2 Safety measures prior to use The correct use of the product requires a detailed and careful instruction of the user or the accompanying person.

  • Page 6: Product Description

    2. Product description. 2.1 Material information The base frame and the individual elements are made from aluminium or steel, are free from corrosion and are powder-coated. All body supports are padded and covered. The covers are made of 100% polyester and/or polyamide and are flame resistant (according to DIN EN 1021-1+2).

  • Page 7: Contraindications

    2. Product description. If the individual therapy requires a change in location of the upright frame and the spatial conditions permit a change in location, this is possible with the ted. 2.3.2 Contraindications In general, the indications for standing should be approved by a doctor or orthopedist.

  • Page 8: Use Not In Accordance With The Intended Purpose / Warning Guidelines

    • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the upright standing frame if all components have been correctly mounted and adjusted.

  • Page 9: List Of Accessories

    2. Product description. 2.6 List of accessories • Therapy table with bowl • Chest support” pad with lateral • Therapy table with adjustable guide (optional angular arm supports adjustment) • Therapy table with adjustable • Backstrap arm supports and bowl •...

  • Page 10: General Settings

    2. Product description. 2.8 General settings The ted. upright standing frame is delivered completely assembled and in the smallest possible setting. Before the user is placed into the upright trainer, the necessary adjustments must be carried out. User dimensions Presettings Taking the user's dimensions Carrying out adjustments to the upright trainer Body size...

  • Page 11: Getting In And Out

    2. Product description. 2.9 Getting in and out Once all adjustments have been carried out, please first lock all four castors for getting in and out (A). 2.9.1 Swivel arm pelvic frame Now open the swivel arm of the pelvic frame (B).

  • Page 12: Settings

    3. Settings Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a trained therapist or product specialist. Please ensure that none of the user's ex- tremities are in the respective area when making adjustments of any kind to minimise the risk of injury.

  • Page 13: Heel Edges With Foot Straps

    3. Settings 3.3 Heel edges with foot straps The heel edges (A) are mounted on the foot plate. They can be adjusted in depth. Also, the distance between the elements can be adjusted. To set the depth, undo the two screws (B), bring the heel edges (A) into the desired po- sition and tighten the screws (B) again.

  • Page 14: Knee Support Pad Mount (Rigid)

    3. Settings 3.4.1 Knee support pad mount (rigid) The rigid knee pad mount (A) can be adjusted in height, angle and in depth. The distance of the individual knee pads to each other can also be adjusted here. To adjust the height, please hold the respec- tive knee support, undo the wing screw (B) and bring the knee support into the desired position.

  • Page 15: Knee Supports With Patella Recess

    3. Settings 3.4.3 Knee supports with patella recess The knee supports with patella recess (A) can be adjusted in height, angle and depth (see Point 3.4.1). With the knee support mount (spherical head), each knee support can be individually adjusted to the knee position (see Point 3.4.2).

  • Page 16: Pelvic Guidance Support Pad With Lateral Guide And Pelvic Strap

    3. Settings 16 16 3.5 Pelvic guidance support pad with lateral guide and pelvic strap The pelvic positioner with lateral guide (A) is equipped with a pelvic strap (B) can be ad- justed in height and width. The height can be adjusted by adjusting the middle column (see Point 3.1) and also the position of the pelvic positioner can be changed directly on the middle column.

  • Page 17: Chest Support Pad With Lateral Guide

    3. Settings 17 17 3.6 Chest support pad with lateral guide The chest support pad with lateral guide is adjustable in width and height, also with op- tional angular adjustment. In addition, the height can also be adjusted via the height adjustment on the central column (see Point 3.1).

  • Page 18: Therapy Table

    3. Settings 3.8 Therapy table There is a total of four therapy tables avail- able: One version without a bowl and arm supports, one version with a bowl, one ver- sion with arm supports and one version with a bowl and arm rests. The therapy table can be adjusted in depth, height and angle.

  • Page 19: Adjustable Arm Supports

    3. Settings 3.8.2 Adjustable arm supports Two therapy table versions are available with adjustable arm supports (A). The adjustable arm supports for the thera- py table are adjustable in width. In order to adjust the width, loosen the screws (B) on the underside of the therapy table and bring the adjustable arm supports into the required position.

  • Page 20: Cleaning And Maintaining

    4.3 Maintenance For reasons of user safety and to retain product liability, the product must be subjected to maintenance by Schuchmann UK at least once a year (see Point 7.5). The maintenance work carried out must be documented in the maintenance plan (see Point 4.3.2).

  • Page 21: Maintenance Specifications

    4. Cleaning and maintaining. 4.3.1 Maintenance specifications • Basic cleaning according to the manufacturer's specifications • Disinfect according to the manufacturer's specifications as required • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •...

  • Page 22: Spare Parts

    To order spare parts, please contact Schuchmann UK or your product spe- cialist (see point 7.5) stating the serial number of the product. Necessary spare parts and accessories must only be installed by trained personnel.

  • Page 23: Technical Data

    5. Technical data. Dimensions Size 1 Size 2 Size 3 Body size 80 - 110 cm 100 - 130 cn 120 - 150 cm Table height from foot plate* 50 - 65 cm 60 - 80 cm 65 - 90 cm Table height from foot plate** 65 - 80 cm 70 - 90 cm...

  • Page 24: Identification

    EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1...
  • Page 25 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 Diese Konformitätserklärung gilt nur für Produkte mit den oben genannten Artikelnummern und...

  • Page 26: Serial Number / Date Of Manufacture

    Date of manufacture Barcode UDI-DI Barcode UDI-PI schuchmann.de • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 7.3 Product version The ted. upright standing frame is available in three sizes and can be sup- plemented through a diverse range of accessories (see Point 2.6).
  • Page 27 Notes.
  • Page 28 schuchmann.co.uk...
