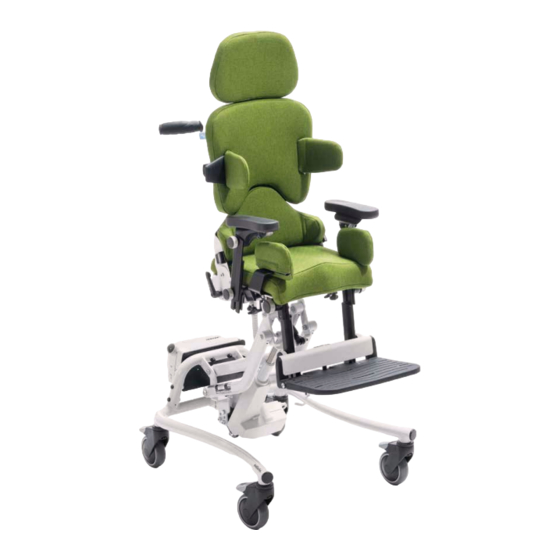

The integrative therapy chair
Hide thumbs Also See for madita-fun:
Table of Contents

Advertisement

Quick Links

Download this manual
madita-fun.
Instructions for use.
madita-fun. The integrative therapy chair.

Advertisement

Table of Contents
loading

Related Manuals for Schuchmann madita-fun

Summary of Contents for Schuchmann madita-fun

  • Page 1 Instructions for use. madita-fun. The integrative therapy chair.
  • Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...

  • Page 3: Table Of Contents

    Contents. 1. Preparation................. 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the instructions for use ............05 2. Product description..............06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose ....06 2.3.1 Indications ......................06...
  • Page 4 Contents. 4.8 Abducting leg guides ..................... 19 4.9 Adjustable pelvic guide ..................20 4.10 Anti-tip mechanism ....................20 4.11 Fold-away therapy table..................21 4.11 Fold-away therapy table with fold-up safety ........21 4.11.2 Plug-in therapy table .................. 21 4.12 Knee abduction wedge ..................22 4.13 Wheelbase extension ...................

  • Page 5: Preparation

    1.4 Where to store the instructions for use Please store these Instructions for use carefully and ensure that these in- structions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de .

  • Page 6: Product Description

    2.3.1 Indications The madita-fun. therapy chair is designed for children and youths who can- not sit or stand unaided however whose limited torso posture does not require permanent sitting in a seat pan.

  • Page 7: Use Not In Accordance With The Intended Purpose / Warning

    • Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Only use the therapy chair if all components have been correctly mounted and adjusted.

  • Page 8: Equipment For Basic Model

    2. Product description. 2.5 Equipment for basic model • Incl. armrests, foot support with elongated holes for the harness, push handle, standard seat pad with cover • Height adjustment via gas pressure spring 1200 N • 4 castors (75 mm), of these 2 with locking devices •...

  • Page 9: Settings

    3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury.

  • Page 10: Seat Angle

    3. Settings. Electrical height adjustment is also possible. This is operated with the existing remote op- eration (A). Press the arrow key downwards in order to adjust the seat height downwards and upwards in order to adjust the seat height upwards. In case of problems with the control unit, please contact a specialist dealer so that the product can be returned to the factory if required.

  • Page 11: Back Inclination

    3. Settings. 3.4 Back inclination The back can be adjusted to the correct angle after loosening of the clamping lever (A) on the right-hand side of the seat unit. Ensure that, during setting / adjustment of the back inclination, no body parts are trapped in the area of the setting / adjustment mechanism in order to avoid injuries.

  • Page 12: Foot Support

    3. Settings. 3.7 Foot support The basic model of the madita-fun. therapy chair already includes a foot support (A). It folds up, has a non-slip surface (B) and has 6 slits (C) to attach harnesses such as foot cuffs or foot positioning aids. There are also two additional foot support models.

  • Page 13: Footrests

    3. Settings. 3.8 Footrests Optionally, madita-fun. can also be equipped with footrests (A). They have an anti-slip surface (B) and have 4 slits each (C) to mount straps such as foot cuffs or foot positioning aids. To adjust the knee angle, please re- lease the twist grips (D) below the seat surface on both sides.

  • Page 14: Positioning Of The Footrests

    3. Settings. 3.8.1 Positioning of the footrests For optimum positioning of the feet, the footrests can be adjusted inde- pendently of each other in width, an- gle and depth. Foot angle The foot angle (A) of the respective footrest can be adjusted from (-)15° to 15°.

  • Page 15: Footrests With Foot Pans

    3. Settings. 3.9 Footrests with foot pans Optionally, the footrests can also be equipped with foot pans (A). Here, as on the standard design, the knee angle can be adjusted, the foot pans folded up and the height adjust- ed (see Point 3.8). For optimum positioning of the feet, the footrests with foot pans can be adjusted independently of each other in width, angle and depth (see Point 3.8.1).

  • Page 16: Accessories

    4. Accessories. 4.1 Headrest All headrests can be removed as standard. The headrest (A) can be adjusted in height and depth. To adjust the depth, loosen the screw (B) and set the support to the required depth. Then tighten the screw (B) again. The height of the head rest can be adjusted by loosening the twist grip (C).

  • Page 17: Removable Back

    Bowden cable (A). Tighten the screws and twist grip again after each adjustment! 4.3 Conversion kit for combination sub-frame When converting madita-fun. to a combination sub-frame, the plastic castors are replaced with 6“ pneumatic wheels with steering forks and 12 ½“ pneumatic drum braked wheels. The drum brakes work independent of air pressure.

  • Page 18: Thorax Pelotte Pads

    4. Accessories. 18 18 4.4 Thorax pelotte pads The thorax pelotte pads are individ- ually adjustable in height and width. To adjust the width, loosen the screws (A) and bring the thorax pelotte pads into the desired position. Then re-tighten the screws (A) again. Proceed in the same way to set height using the screw (B).

  • Page 19: Thigh Guide

    4. Accessories. 4.7 Thigh guide The thigh guide pads are individual- ly adjustable in height and depth. In order to adjust the width, loosen the two wing screws (A) under the seat area and bring the thigh guide pad into the required position. The depth adjustment is possible on any thigh guide except on the standard version for Size 0 with adjustable pelvic guide.

  • Page 20: Adjustable Pelvic Guide

    4. Accessories. 4.9 Adjustable pelvic guide The adjustable pelvic guide can be adjusted in width, provides the user with a high level of security and po- sitions the pelvis. At first, loosen the cylinder head screw (A) on the rear of the therapy chair at the bottom edge of the cover.

  • Page 21: Fold-Away Therapy Table

    4. Accessories. 4.11 Fold-away therapy table The standard therapy table (A) can be adjusted in height and depth. Height adjustment takes place via adjust- ment of the armrests (see Point 3.6). For adjustment of the depth, loosen the wing screw (B) and bring the ther- apy table into the required position.

  • Page 22: Knee Abduction Wedge

    Velcro respective element. separately in a wash bag/ laver les housses avec du Please also pay attention to our general cleaning and Velcro séparément dans un sac de lavage hygiene advice. This can be found at www.schuchmann.de/mediathek.

  • Page 23: Disinfection

    5. Cleaning and maintaining. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are sprayed on and evenly applied with a soft cloth. Alternatively, wipes pre-soaked with disinfectant can be used to wipe the products over the entire surface.

  • Page 24: Maintenance Plan

    5. Cleaning and maintaining. • Check the pads and covers for damage • Legibility of the type label • Final complete functional check of the aid • Check that all mounting parts and associated accessories are correctly fastened 5.3.2 Maintenance plan Maintenance specifications of the manufacturer (see Point 5.3.1) were car- ried out: Date...

  • Page 25: Spare Parts

    5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product.

  • Page 26: Technical Data

    6. Technical data. Dimensions Size 0 Size 1 Size 1 b Size 2 Seat depth* 15 - 25 cm 21 - 30 cm 26 - 36 cm 30 - 42 cm Seat width 16 - 26 cm 20 - 30 cm 20 - 30 cm 28 - 38 cm Back height with extra...

  • Page 27: Guarantee

    7. Guarantee. The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion.

  • Page 28: Identification

    EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1...
  • Page 29 EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 Diese Konformitätserklärung gilt nur für Produkte mit den oben genannten Artikelnummern und...

  • Page 30: Serial Number / Date Of Manufacture

    • info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The madita-fun. therapy chair is available in four sizes and can be supple- mented through a diverse range of accessories (see Point 4). 8.4 Issue of the document Instructions for use madita-fun.
  • Page 31 Notes. Notes.
