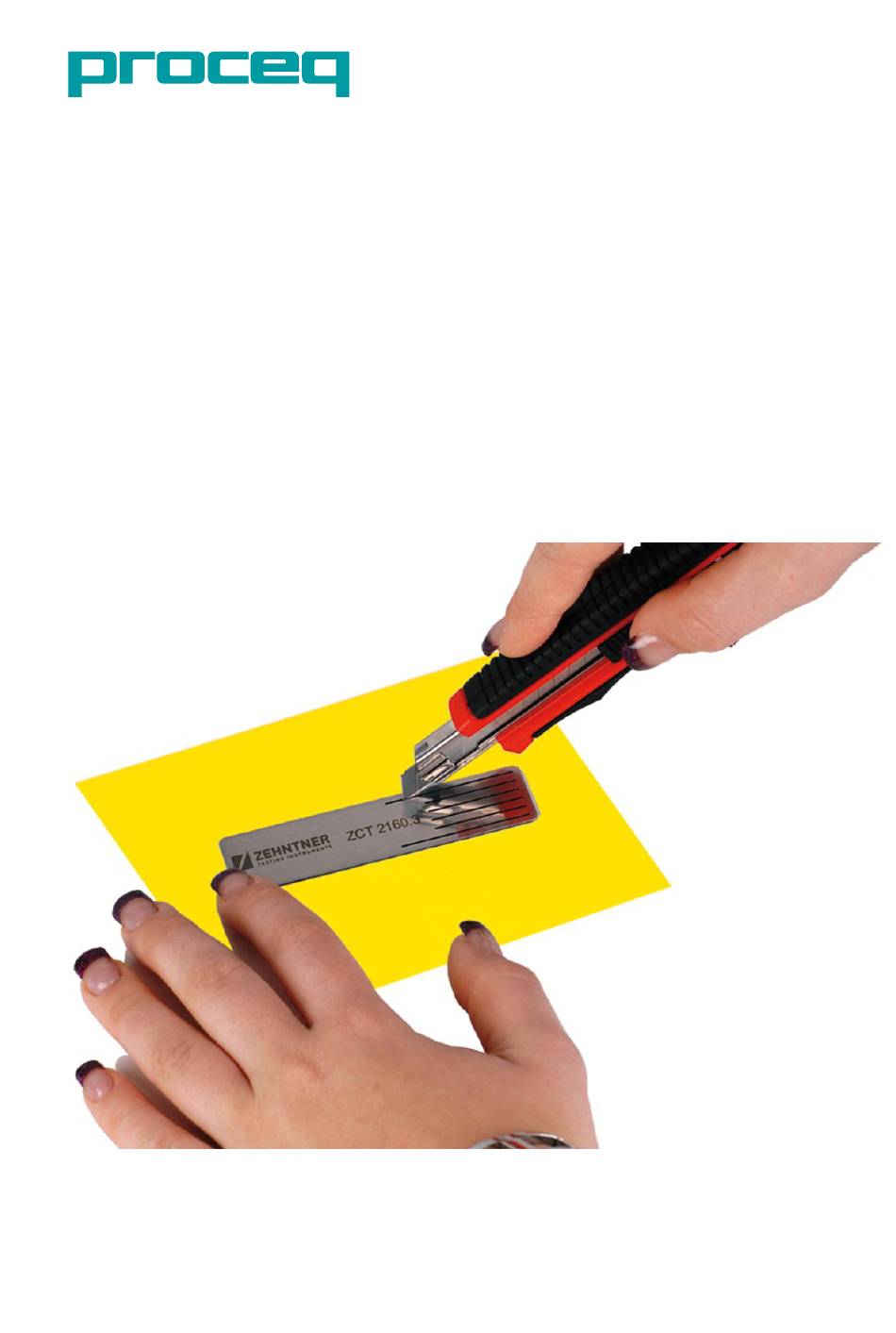

- Page 1 Instruction Manual version 1.0 dated 24.06.2009 Proceq ZCT 2160 Cross-cut templet...
-
Page 3: Table Of Contents
The manufacturer will be grateful at any time for suggestions, proposals for improvement and references to errors. © Proceq SA last update: 24.06.2009 page 3... -
Page 4: Safety Precautions And Warnings
Operators need to achieve an appropriate security instruction. The Proceq ZCT 2160 is solely for the determination of the adhesion of single or multi-coat systems. Any other application is not in accordance with the regulations. The manufacturer is not liable for damage resulting from inappropriate application. -
Page 5: Delivery Of Apparatus
2. Delivery of apparatus 2.1 Damages during carriage During carriage the Proceq ZCT 2160 is to be handled with the usual care. To ensure carriage without damages the device is to be transported in the original packaging and under normal freight conditions. Pushes during carriage are to be avoided. -
Page 6: Standard Delivery

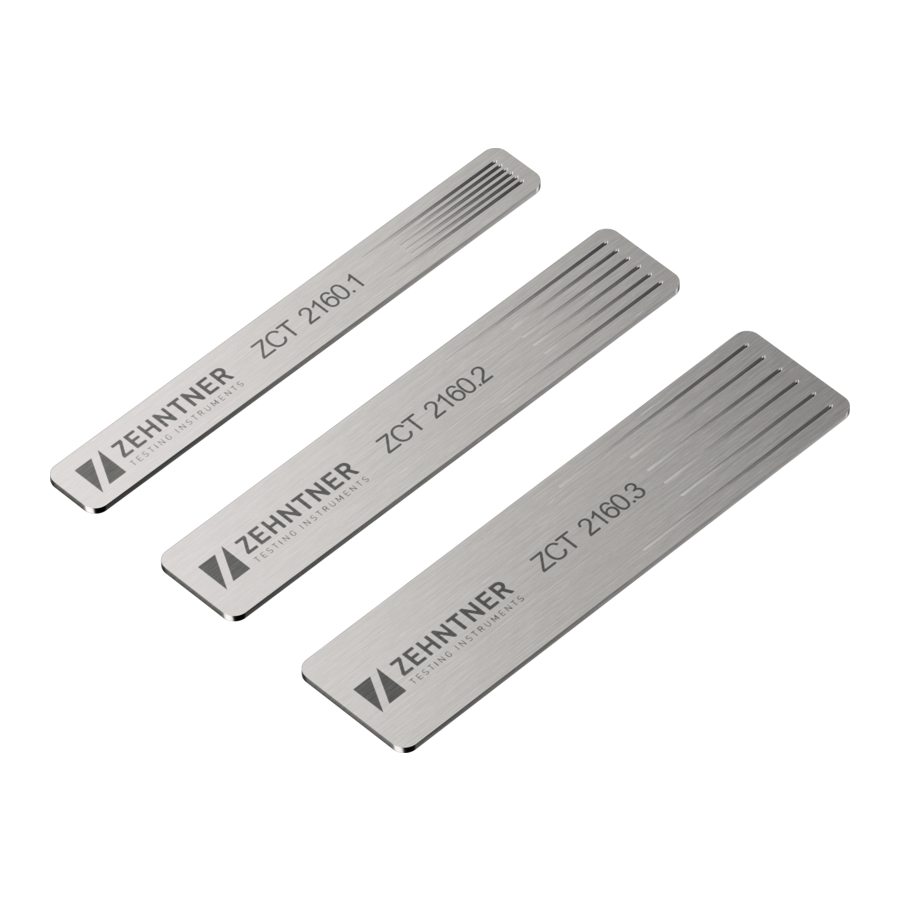

2.2 Standard delivery The following parts are included in the delivery: Article No.: 2160.123K: • 3 Cross-cut templets with 1 mm, 2 mm and 3 mm cut spacing • 1 NT-cutter with 9 mm width of edge • 1 Roll adhesive tape (length: 22 m, width: 25 mm) •... -
Page 7: Handling
3. Handling • Place the templet on the substrate under test and hold the templet in such way that the cuts always are executed away from the body and from the hand holding the templet! Never hold the templet at the sides of the slits! Do not to put the fingers directly at the cuts and pay attention not to cut yourself. -
Page 8: Overwiew - Cross-Cut Classification
4. Overwiew - Cross-cut classification according to cross-cut according to EN ISO 2409 ASTM D 3359 The edges of the The edges of the cuts are cuts are completely completely smooth, none of smooth; none of the the squares of the lattice is squares of the lattice detached. - Page 9 according to cross-cut according to EN ISO 2409 ASTM D 3359 The coating has flaked along the edges of the cuts The coating has partly or wholly in large flaked along the ribbons, and/or it has flaked edges and on parts partly or wholly on different of the squares.
-
Page 10: Technical Specification
5. Technical specification Versions: see scope of delivery Material: stainless steel Dimensions: 1-mm-templet (0.04’’): 82 mm x 9.5 mm x 1 mm (3.23” x 0.37” x 0.04”) 2-mm-templet (0.08”): 82 mm x 14.5 mm x 1 mm (3.23” x 0.57” x 0.04”) 3-mm-templet (0.12”): 82 mm x 19.5 mm x 1 mm (3.23”... - Page 12 Subject to change. Copyright © 2017 by Proceq SA, Schwerzenbach. All rights reserved. www.proceq.com Version 1.0 dated 24.06.2009...
