TS400C
Mobile Easel
Please check all pieces before beginning this
project. (This kit may contain extra screws for
your convenience.) If there are any problems
or discrepancies, call our customer service
department at 1-800-turnstone.
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
1.
Unpack panels and parts
Unpack the easel panels, base, top plate and top cap on carpeting (to avoid scratches). Lay the
panels on their edge with the marker board and tackable surfaces facing out. Place top edges
(the ends with the flip chart hang posts) together and the bottom edges about 2 feet apart. You
will need a #2 Phillips screwdriver and a soft rubber mallet to complete this installation.
2.

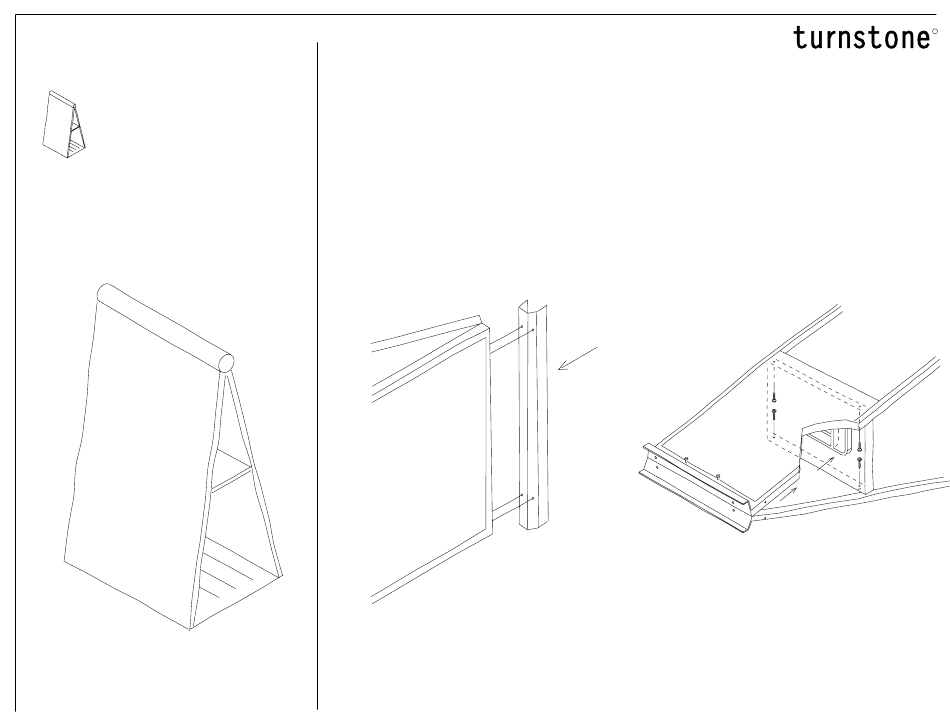

Attach top plate to panels
Attach the top plate to the top of the easel panel
as shown using four (4) phillips head screws.
Turn screws almost all the way in, but do not
tighten yet - We will come back to tighten these
later.
3.
Attach center support and marker tray
Place center support in location between
the panels with flat surface facing to the top
plate. Attach center support to the edges of
the panels with (4) screws in the round holes
as shown. Snap the marker tray into the holes
in the center support.
R
Page 1 of 2
TS400C Rev D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Turnstone TS400C
Summary of Contents for Turnstone TS400C
- Page 1 (4) screws in the round holes later. as shown. Snap the marker tray into the holes in the center support. © 2001 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 2 TS400C Rev D Printed in U.S.A.
- Page 2 Snap the top cap over the top plate and push down into place, keeping both ends level as you attach into place. Scribble away! Here's the fun part...be sure to use only dry erase markers. Page 2 of 2 TS400C Rev D...
