TS370-03/04/05
ts370-04
ts370-05
ts370-03
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.

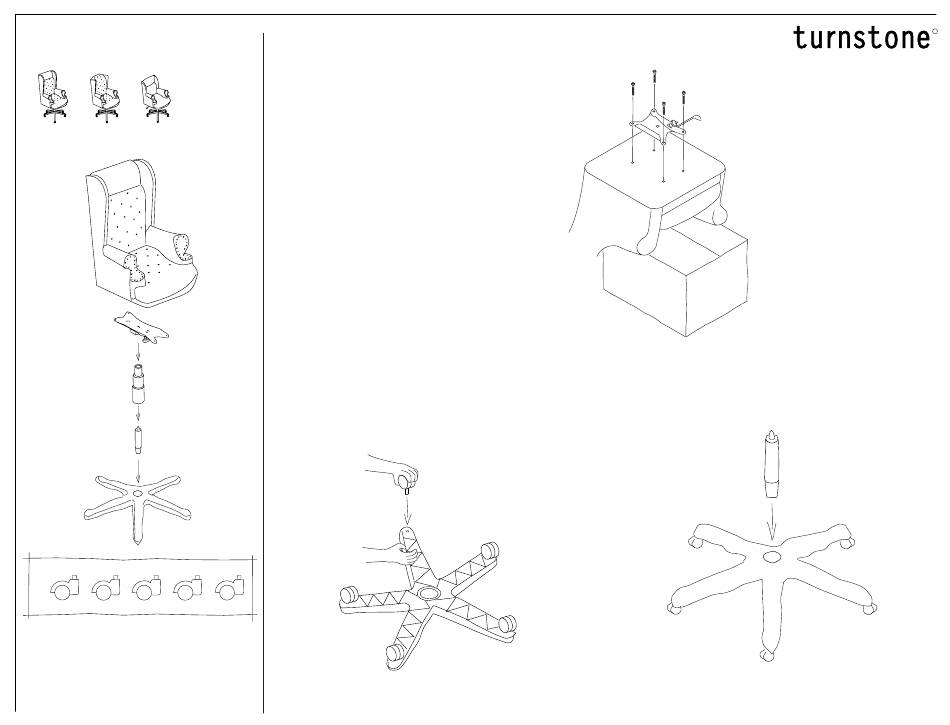

1.

Attach control to seat

Turn the carton upside down and cover it
with one of the plastic bags. Place the seat
on it as shown. Finger tighten each of the
4 screws attaching the control (C) to the
seat as shown. Now tighten all 4 screws
firmly using a Phillips screwdriver.
2.
Snap casters into base (if not already
assembled) Insert the shafts of the casters
into their corresponding sockets of the base.
Push in firmly. Stand the base upright.
C
3.

Insert cylinder into base

With base resting on floor, insert
cylinder as shown.
R
Page 1 of 2
TS3700345
Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS370-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Turnstone TS370-03

  • Page 1 TS370-03/04/05 Attach control to seat Turn the carton upside down and cover it with one of the plastic bags. Place the seat ts370-04 ts370-05 ts370-03 on it as shown. Finger tighten each of the 4 screws attaching the control (C) to the seat as shown.
  • Page 2 Assemble cylinder cover Place cover over the cylinder Slide cylinder (A) up through cylinder (B) (see fig 1). With cylinder (A) engaged with cylinder (B), slide cylinder (C) down over cylinders (A and B) (see fig 2). Refer to fig. 3 for completed assembly. fig.
