TS345B
NOTE: Put the washers
on the bolts, before you
assemble the chair.
TS345-03
Backrest
Seat
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.

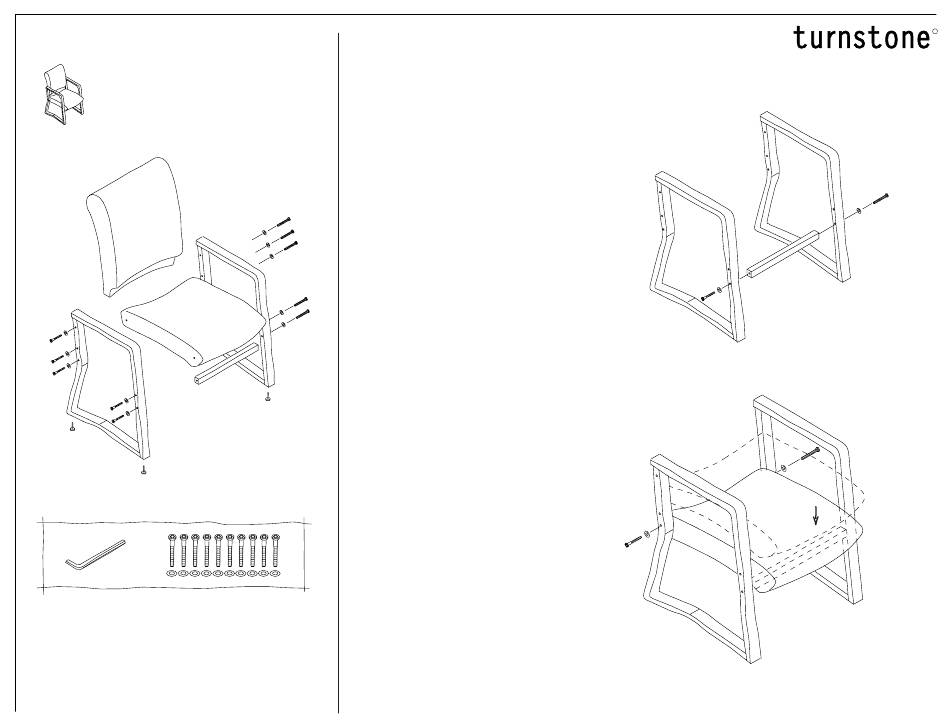

1.
Finger tighten the 2 bolts with washers into the
crossrail between the side rails as shown.
(NOTE: There is a nail on each end of the
crossrail to stabilize the crossrail. Please
handle it with care.)
2.
Place the seat between the side frames, over
the crossrail. Finger tighten the 2 bolts with
washers into the sides of the seat, as shown.
CR
Page 1 of 2
TS345B Rev B
R
Advertisement
Table of Contents
Related Manuals for Turnstone TS345B
Summary of Contents for Turnstone TS345B
- Page 1 Place the seat between the side frames, over the crossrail. Finger tighten the 2 bolts with washers into the sides of the seat, as shown. © 2001 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 2 Printed in U.S.A. TS345B Rev B...
- Page 2 Finger tighten the other two bolts with washers into the sides of the backrest, as shown. Place the chair on a flat level surface. Firmly tighten all bolts with the supplied Allen Wrench. Page 2 of 2 TS345B Rev B...
