Table configuration & electrical system (23 pages)
Summary of Contents for Turnstone Tour Counter
Page 1

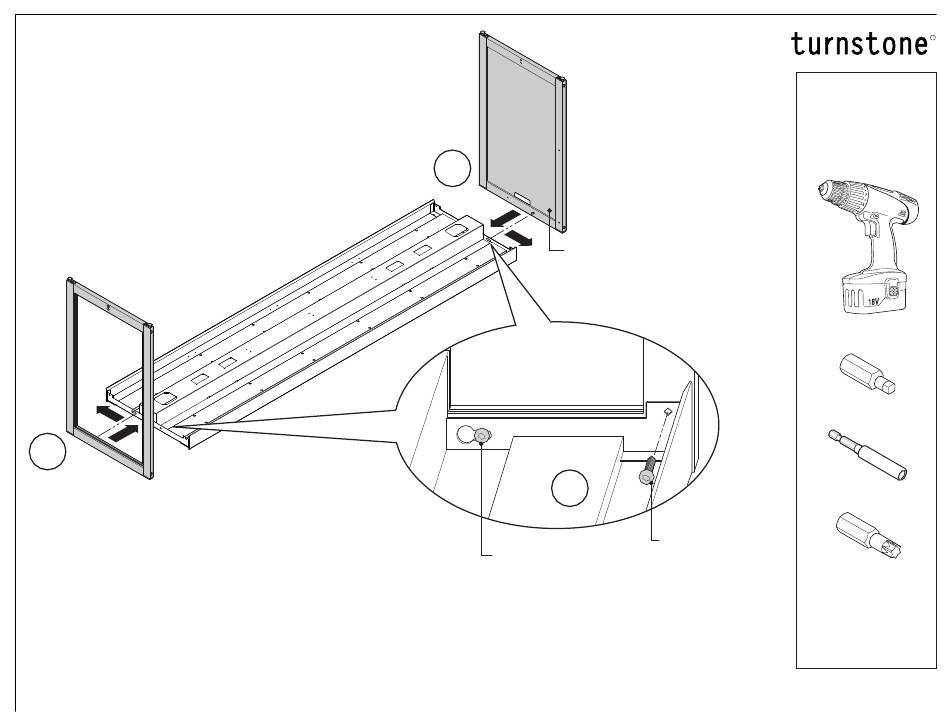

Tour™ Counter Assembly Position tour counter end frame assembly at each end of tour counter. Slide pre-assembled screws into keyholes. Position four (4) 1/4-20 x 1/2" screws. Two (2) each end. Tighten four (4) screw each end to 4-5 ft-lb.
Page 2
TOUR LAMINATE CENTER PANEL Position center panel (3a) into the grommets located at each end of the counter support assembly (3b). Position and tighten screws holding the center panel to the counter support assembly (6 screws for laminate, 3 screws for steel.) SCREW TOUR STEEL...
Page 3
Lower crossbar onto center panel. TOUR LAMINATE CENTER PANEL SIDE VIEW (for steel center panel only) LOWER TOUR STEEL CROSSBAR CENTER PANEL TOUR STEEL CENTER PANEL Page 3 of 6 939500285 Rev D...
Page 4
1/4-20 x 1-1/2" FLATHEAD SCREW LOWER CROSSBAR T-27 TORX DRIVE TIGHTEN TO 4-5 FT/LBS. TOUR COUNTER END FRAME ASSEMBLY TAB SNAPS INTO PLACE Using two (2) people, flip unit over. TOUR COUNTER COVER END TRIM Assemble end trims.
Page 5
(4 total). Hook one end of bracket into slot at an angle (2a) and then push down until the other side of the bracket engages into slot (2b). NOTE: Bracket deforms over receptacle. POWERWAY TOUR COUNTER DUPLEX SPRING BRACKET EACH RECEPTACLE PROTRUDES SLIGHTLY...
Page 6
Mounting Counters End-to-End Install counter to counter tie plate using four (4) screws. Repeat SCREW for other side. Install two-way lower frame bracket around glides as shown (2a). Tap lightly with rubber mallet COUNTER TO (2b). Repeat for other side. COUNTER TIE PLATE GLIDE TWO WAY...
