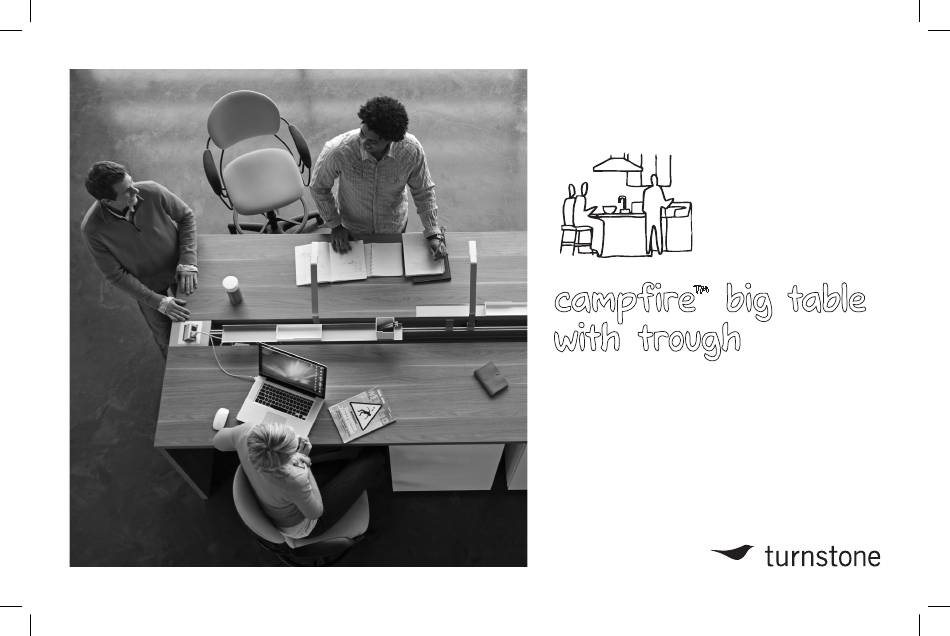

- Page 1 Assembly Instructions...
- Page 2 For assembly videos go to myturnstone.com/campfire/instructions tools needed Here's what's in the box BOX #1 BOX #2 BOX #3 time needed assembly video myturnstone.com/campfire/instructions half worksurface (2) trough (1) rail (1) X screw (16) T-slot fastener (16) leg (2) middle support (1) size: #10 x 1.075"...
- Page 3 • Find the two leg pieces and place upright. STEP STEP • This might be an excellent time to call over a friend for help as you position the large center piece in-between the two end pieces. Secure one leg, then proceed to attach the second. Add legs.
- Page 4 STEP STEP Install T-slot Install fasteners. trough and tighten. Use the packaging View from under big table. to balance the trough on its side to easily connect the fasteners. T-slot fastener • Place trough underneath the worksurface and make sure the two rows of fasteners straddle the center rail.
- Page 5 STEP STEP Install Install trough-end other half trim plates. worksurface. Half turn to the right. Repeat 4 times. Make sure the cam-locks on the worksurface View from under big table. are turned to the left (Just like in • Install the trough-end trim step 2).
- Page 6 STEP STEP Tighten Tighten trim trough to plate. worksurface. View from under big table. View from under big table. Use X screw. Use X screw. • Fasten the trough to the half • Tighten the trim plates size: #10 x 1.071" size: #10 x 1.071"...
- Page 7 STEP STEP Link 1 Link 2 Install Connect electrical. electrical lines. The outlets pop open by pressing on the top. Once they are installed, the electrical outlet will face the center of the table. • Install both electrical • Snap latches into place components into the to secure, depress trim plates.
- Page 8 Visit myturnstone.com to see more spots. STEP Install center rail. End view. End view. • Line up T-slot fasteners and set the center rail on top. • The rail will snap into place. • Duck under the big table and tighten the center rail into place by rotating the T-slot fasteners.
