TS395A
Installed arm kits may be specified as a
factory option. If you have ordered arms
with these chair models, the installation
steps are simple: slide the arms into the
channels on the bottom of the chair seat
and tighten the knob.
TS395-02
TS395-03
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.

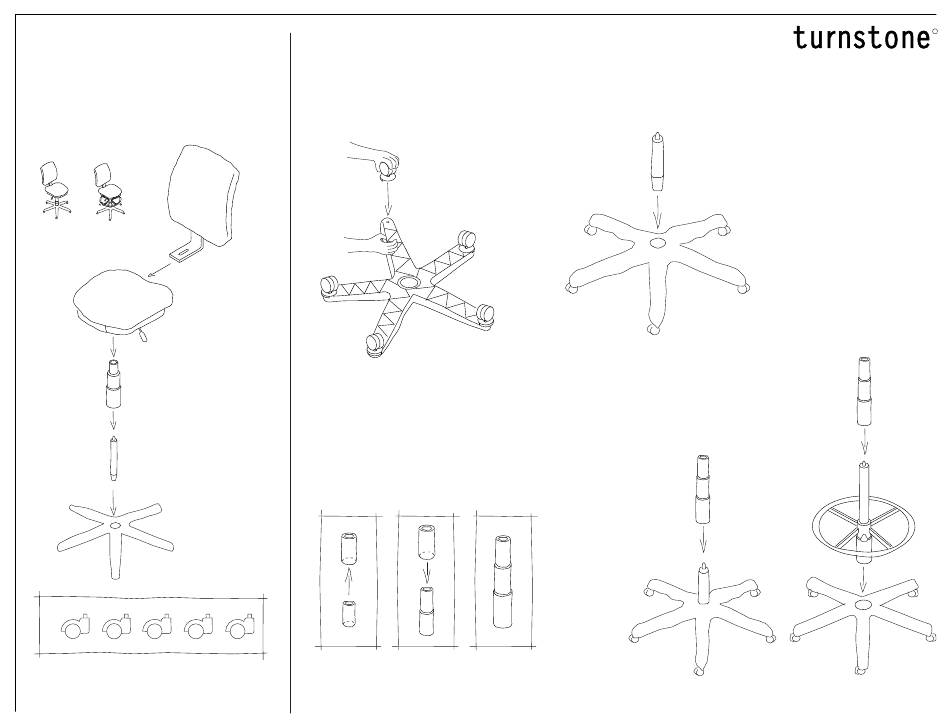

1.
Insert the shafts of the casters
into their corresponding sockets
of the base . Push in firmly.
Stand the base upright.
3.
Assemble cylinder cover
Slide cylinder (A) up through cylinder
(B) (see fig 1). With cylinder (A) en-
gaged with cylinder (B), slide cylinder
(C) down over cylinders (A and B)
(see fig 2). Refer to fig. 3 for completed
assembly.
fig. 3
fig. 1
fig. 2
C
B
A
A
B
2.
Insert cylinder into base
With base resting on floor, insert
cylinder as shown.
4.
Place cover over the cylinder (see fig. 1).
For stools with footring, place cover over the
cylinder (see fig. 2). Insert the gas cylinder
into the footring. Push the gas cylinder into
the base.
fig. 1
A
B
C
A
fig. 2
B
C
A
B
C
Page 1 of 2
TS395A
R
Rev B
