TS 300A
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
1.

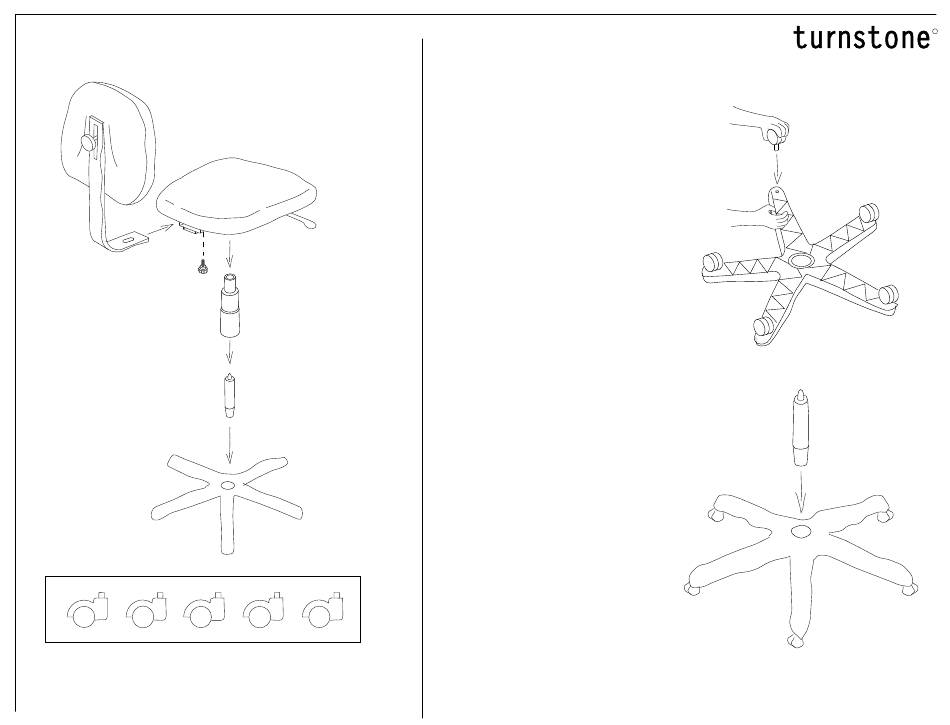

Insert the shafts of the casters

into their corresponding sockets
of the base. Push in firmly. Stand
the base upright.
2.

Insert cylinder into base

With base resting on floor, insert
cylinder as shown.
R
Page 1 of 3
TS300A Rev B
