Élan
Corner Bridge
TS52077
1.

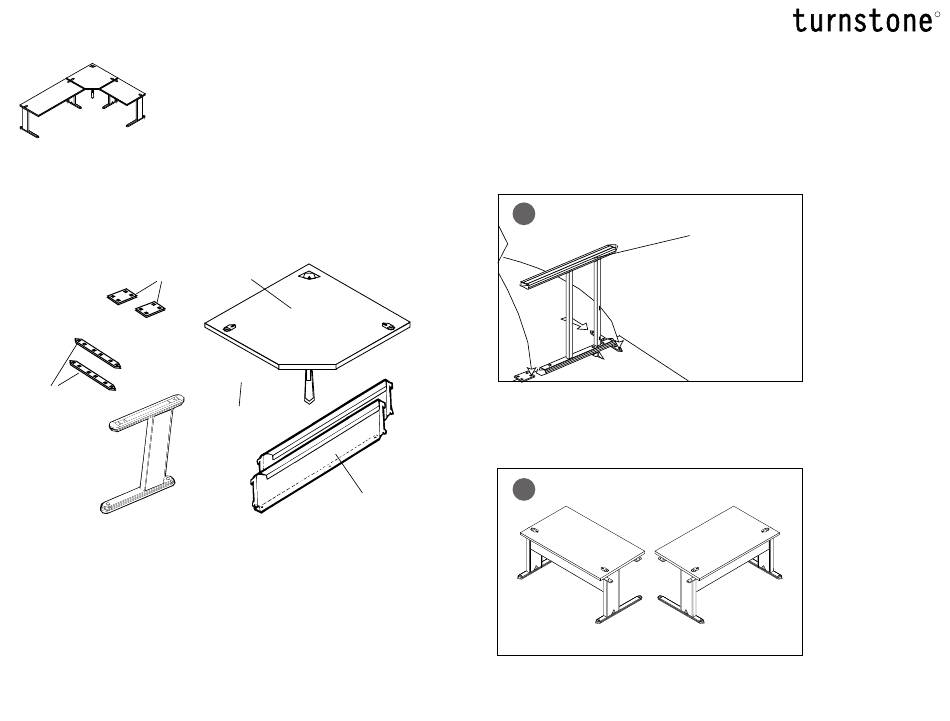

unpack the components. Unpack the parts and lay them
out on a carpeted surface (to avoid scratches). Make sure you
have all the items shown below. Note:the corner bridge must
be supported by two Élan Table Desks.
support brackets
support straps
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
corner bridge
screws
modesty panels
2.
assemble table desks. Follow the Élan Table Desk user
guide steps 1-6. (Note: be sure to use one end leg and one mid
leg for each desk.)
3.
attach support brackets. Before fliping desks, attach the
support brackets and straps to the desks in the predrilled holes
as shown. Using two people, flip desks over .
3
4.
align desks. Place desks in approximate position and align
by setting the corner worksurface on to support brackets. Once
aligned, remove cor ner worksurface.
4
mid legs
Page 1 of 3
939503211 Rev B
