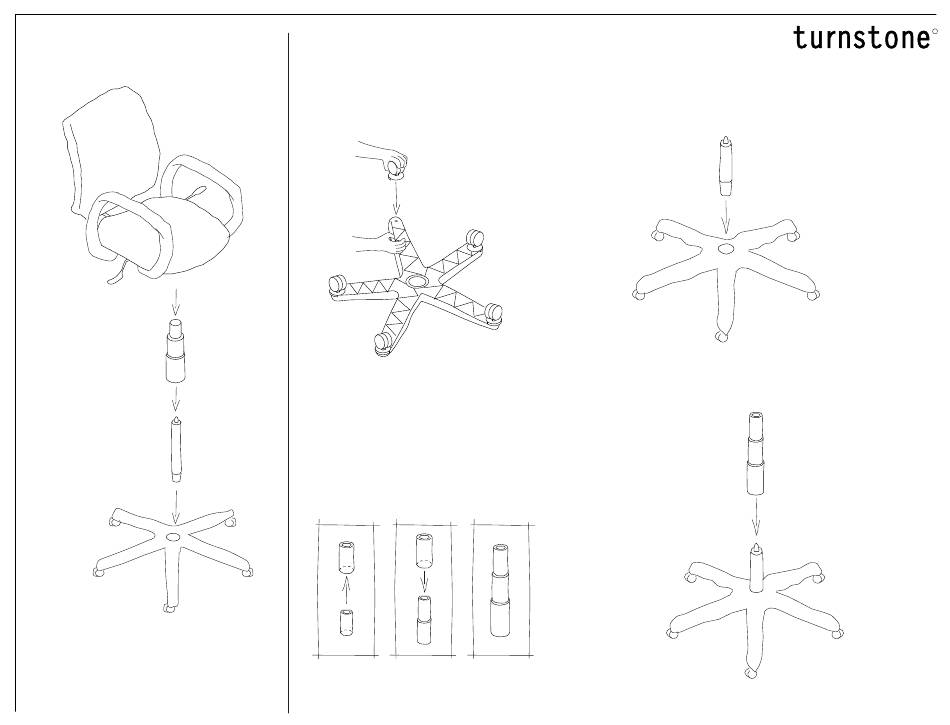

1.

Insert the shafts of the casters

into their corresponding sockets
of the base . Push in firmly.
Stand the base upright.
3.

Assemble cylinder cover

Slide cylinder (A) up through cylinder
(B) (see fig 1). With cylinder (A) en-
gaged with cylinder (B), slide cylinder
(C) down over cylinders (A and B)
(see fig 2). Refer to fig. 3 for completed
assembly.
fig. 3
fig. 1
fig. 2
C
B
A
A
B
2.

Insert cylinder into base

With base resting on floor, insert
cylinder as shown.
4.
Place cover over the
cylinder in base.
A
B
C
A
B
C
Page 1 of 2
TS3951213
Rev B
