Humanscale Float Installation Manual page 4

Assembly Instructions
4
Attach the Work-surface
a. Turn the Base upside down.
b. Position the Base on the work-surface. Center the Base from left to right
with an even overhang on both sides.
c. Use the Pencil and Ruler to mark the distance from the Front edge of the
work-surface to the front of the cross-beam.
For 30" (800 mm) deep surfaces, measure 16 ½" (420 mm).
For 24" (600 mm) deep surface, measure 13 ½" (350 mm).
Refer to Fig. M – Non Humanscale work-surface diagram.
d. Align the Base with the marks.
e. Use the #2 Phillips driver to install the (12) No. 10 × ¾" pan-head wood
screws in the (12) mounting holes in the wing brackets and cross-beam and
into the work-surface. (Fig. G)
5
Attach the Release Paddle
a. Use the Pencil and Ruler to mark 1" (25 mm) back from Front edge of the
worksurface and 2 1/4" (60 mm) over from the Wing Bracket.
If using a left-hand paddle, the dimensions are measured from the Left
Wing Bracket. Refer to Fig. M – Non Humanscale work-surface diagram.
b. Align the Release Paddle with the marks.
c. Use the #2 Phillips driver to install the (4) No. 8 × 1½" pan-head wood
screws to secure the Release Paddle to the work-surface (Fig. H)
Caution: Do not over tighten screws when mounting the Release Paddle.
6
Install the Mounted Tension Adjuster Handle
If you did not order your Float with this option, move on to Step 7 .
a. Insert the hexagonal metal shaft of the Mounted Tension Adjuster Handle
into the Tension Adjuster Screw on the front of the cross-beam.
b. Position the Handle so the metal shaft is perpendicular to the cross-beam.
c. Use the #2 Phillips driver to install the ((4) No. 8 × ½" pan-head wood
screws to secure mount the Crank Handle to the work-surface. (Fig. J)
d. Snap the cover onto the Tension Adjuster Handle.
7
Turn the Float back upright
8
Remove the Shipping Safety Pin
Located on the back at the top of the Left leg. (Fig. K )
The pin is used only for shipping purposes and must be removed.
9
Set up work-station, calibrate Float
a. Move the table into location. Set up the components of your workstation,
including monitor(s), monitor support, computer, keyboard, etc.
b Go to page 11 – Using and calibrating your Float
calibrate Float to the weight of the workstation.
Before operation, you must add workstation components weighing
at least 30 lbs (13.5 kg) to the work-surface.
, for instructions on how to
4

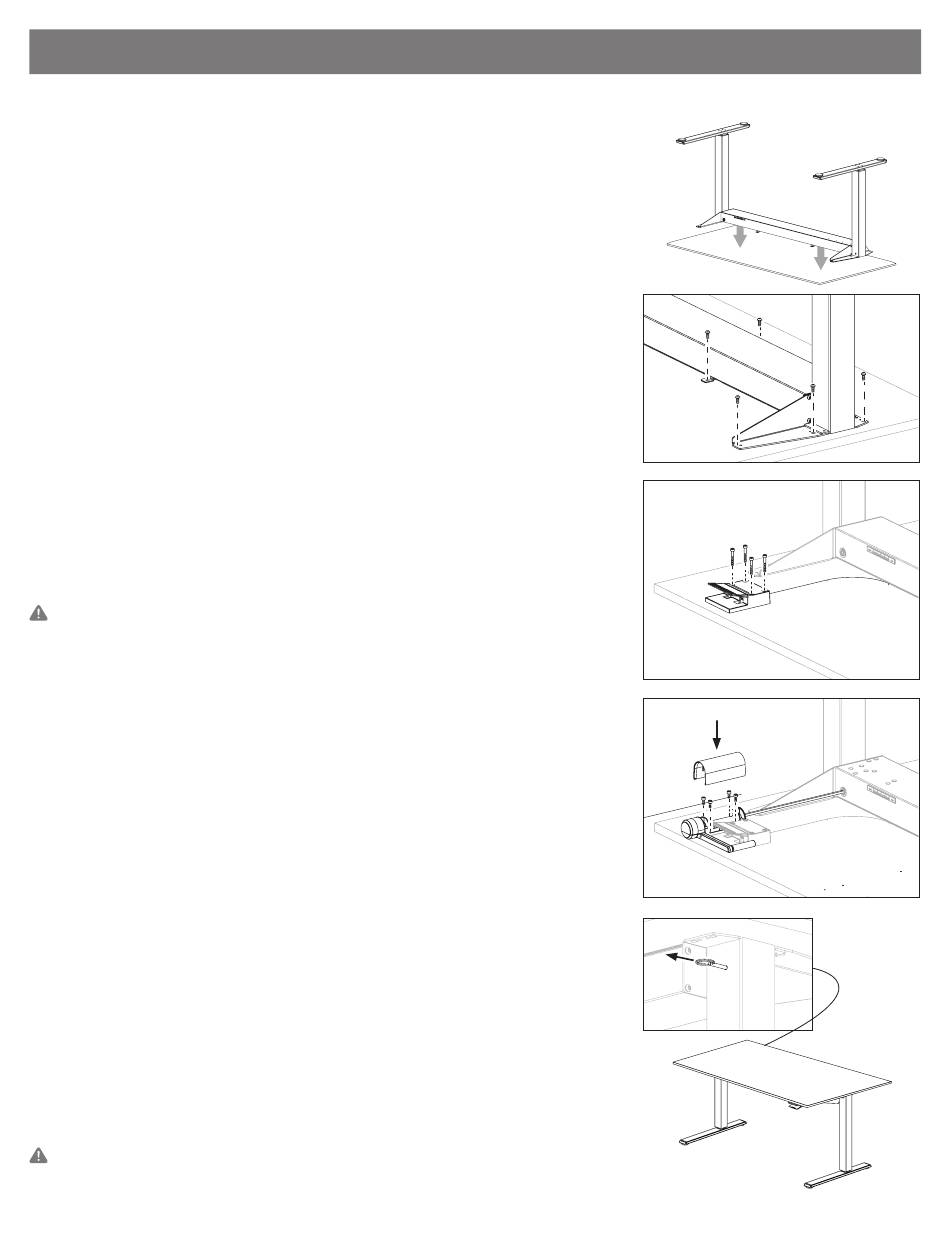

Fig. G
Fig. H
Fig. J
Fig. K
Fig. F
