MES5300-24GT4GS Series
Layer 2 Managed Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Switch
2.
Mounting lug x 2
3.
AC power line x 2 (only for AC device)
4.
Warranty card
5.
Certificate
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

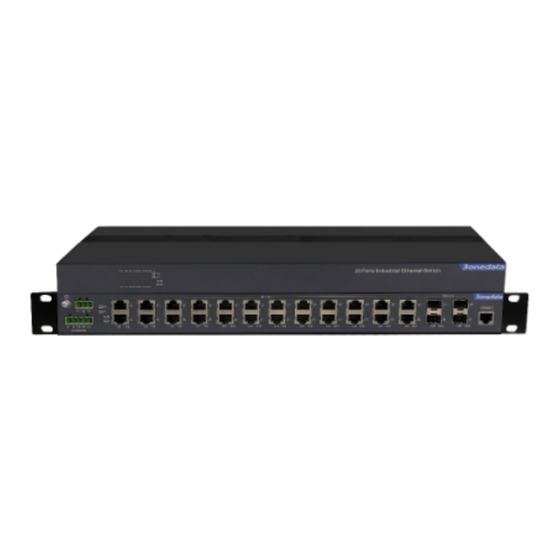

【Product Overview】
This series products are rack-mounted layer 2 managed
industrial Ethernet switches. For convenience, the products of
this series adopt the following number on the left in this guide,
please confirm the number of your product:
Model I. MES5300-24GT4GS-2LV (24 Gigabit copper ports +
4 Gigabit SFP slots + 2 24/48VDC (18-72VDC)
redundant power supply inputs)
Model II. MES5300-24GT4GS-2HV (24 Gigabit copper ports +
4
(85-264VAC/77-300VDC) redundant power supply
inputs)

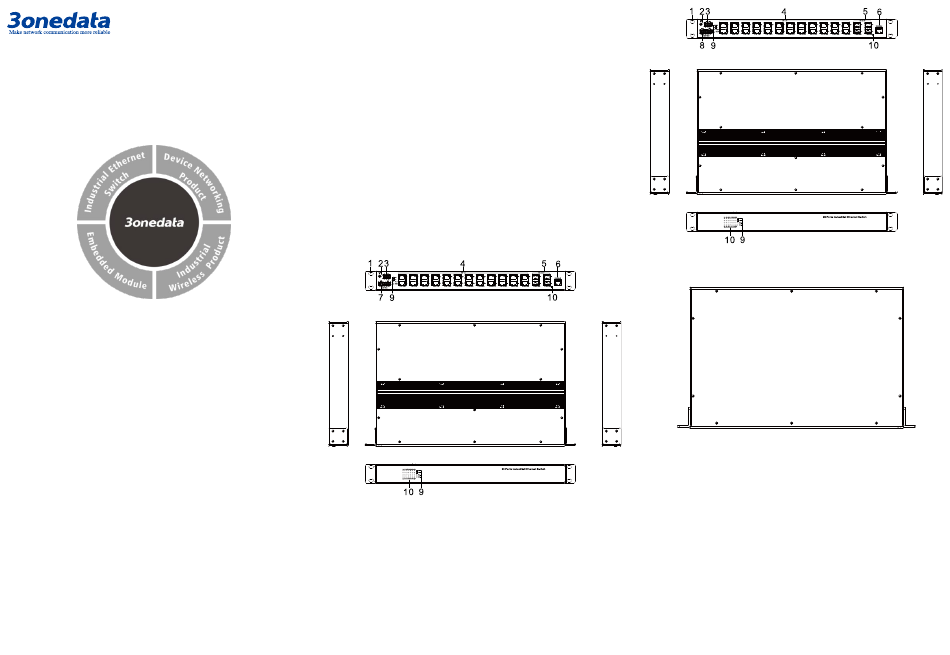

【Panel Design】
Bottom view, right view, front view, left view, and top
view
Nanshan
District,
Gigabit
SFP
slots
+
2
110/220VAC/DC
Model I
Model II
Rear View
Model I, II
1.
Lugs
2.
Grounding screw (M4)
3.
Relay alarm output terminal block
4.
Gigabit Ethernet copper port (G1-G24)
5.
Gigabit SFP slot (GS25-GS28)
6.
CONSOLE port
7.
DC power input terminal block
8.
AC power input terminal block
9.
System indicators, from top to bottom in turn they
are:
Power supply indicator (P2-P1)
—
Alarm indicator (ALM)
—
Advertisement
Related Manuals for 3onedata MES5300-24GT4GS Series
Summary of Contents for 3onedata MES5300-24GT4GS Series
- Page 1 This series products are rack-mounted layer 2 managed industrial Ethernet switches. For convenience, the products of this series adopt the following number on the left in this guide, MES5300-24GT4GS Series please confirm the number of your product: Layer 2 Managed Industrial Ethernet Model I.
- Page 2 【Power Supply Connection】 Running indicator (RUN) Adopt 4 bolts to install the mounting lugs in the — DC device power supply Interface indicator (G1-G28) device position as figure below. Model I provides 5-pin 5.08mm pitch 【Mounting Dimension】 terminal blocks, and support P1 and P2 Unit: mm DC redundant power inputs.
- Page 3 【Logging in to WEB Interface】 Device Status Relay Contacts Alarm method of logging in to WEB interface and other Support WEB management and configuration. Computer can configurations about network management function. Powered on, and working Disconnected None access the device via Ethernet interface. The way of logging properly without triggering any 【Specification】...
- Page 4 Full-load: 22.6W@220VAC Working Environment Working temperature -40~85℃ Storage temperature -40~85℃ Working humidity 5%～95% (no condensation) Protection grade IP40 (metal shell) 【 Disposal of Waste Electrical and Electronic Equipment (WEEE 2012/19/EU)】 (Applicable in the EU-member states) The crossed-out wheeled bin symbol on the equipment or its packaging indicates that the product, at the end of its service life, shall not be mixed with...
