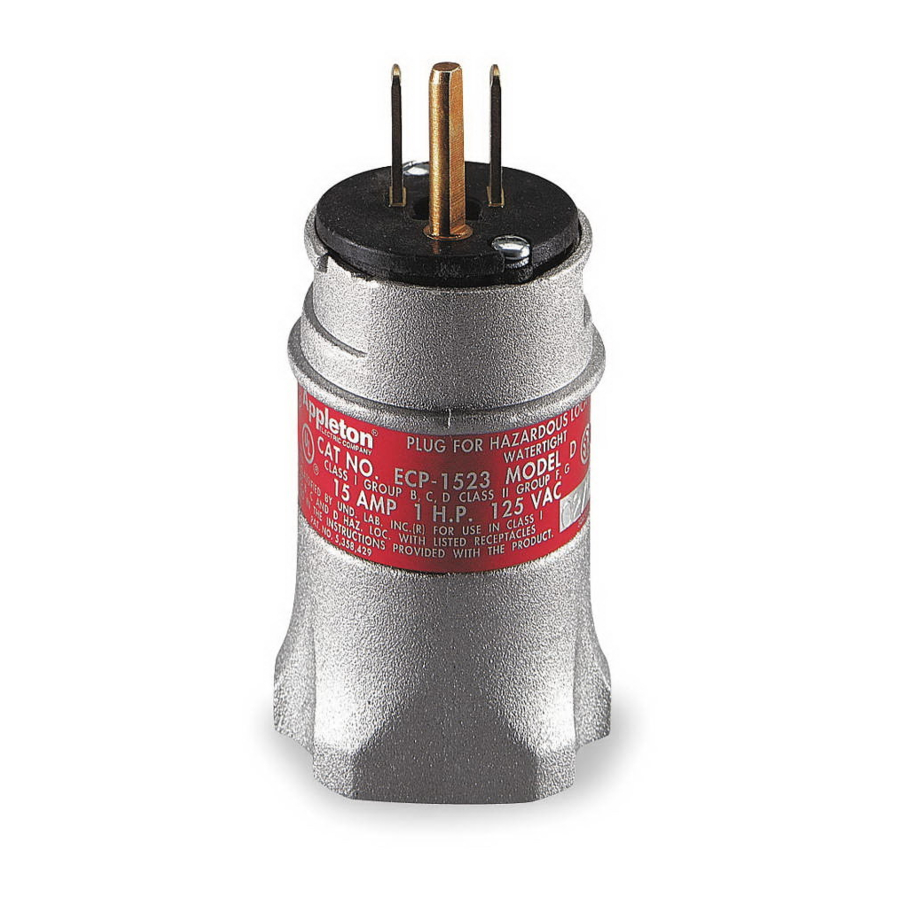

Installation & Maintenance Instructions for ECP/NCP Model "E"
U-Line® Plugs
RETAIN THIS INSTRUCTION SHEET FOR FUTURE REFERENCE. For safe installation and operation, please read these instructions
carefully and with full understanding.
Compliance & Ratings
UL 1203
Class I, Group B, C; Class II, Group F, G; Class III
Electrical Ratings
Maximum Voltage: 125 V or 250 V; Current: 15 A or 20 A; Configuration: 2W, 3P
Applications
• Locations where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors,
heaters, motor-generator sets, air conditioners compressors, and pumps.
• Locations where damp or corrosive conditions are encountered.
• Class I classified areas such as petrochemical plants, petroleum refineries, paint and chemical plants or any location where
ignitable vapors or gases are present.
• Class II locations such as process industries where there are dust hazards from handling such products as flour, grain, and starch
or any location where ignitable amounts of dust are present or amounts which would otherwise affect performances.
Installation
WARNINGS
• Electrical power must be turned OFF before and during installation and maintenance. Failure to do so may result in serious or fatal
injuries due to electrocution.
• Use cable diameters ranging from 0.538 to 0.639 inches. Failure to do so may result in overstressed wire terminations, which may
cause the conductors to pull out of the contacts and cause serious/fatal injuries due to electrocution.
• Care must be taken not to cut into the individual conductor insulation when removing the outer cable jacket and to not damage the
conductors when removing individual wire insulation. Failure to do so will seriously degrade the electrical properties of the cable
and may produce overheating/electrical hazard leading to electrocution.
CAUTION
Before starting the installation, ensure the plug assembly is suitable for the intended location according to the National Electrical Code
or Canadian Electrical Code. If the plug assembly is not suitable, serious damage and injuries may result. Owners are responsible for
damages or injuries if these rules are not followed.
NOTICE
The plug should be wired with three-conductor, rubber-covered #12 AWG – #14 AWG Type SO or SOOW Cords with copper
conductors only.
Appleton • 1.800.621.1506 • www.appletonelec.com

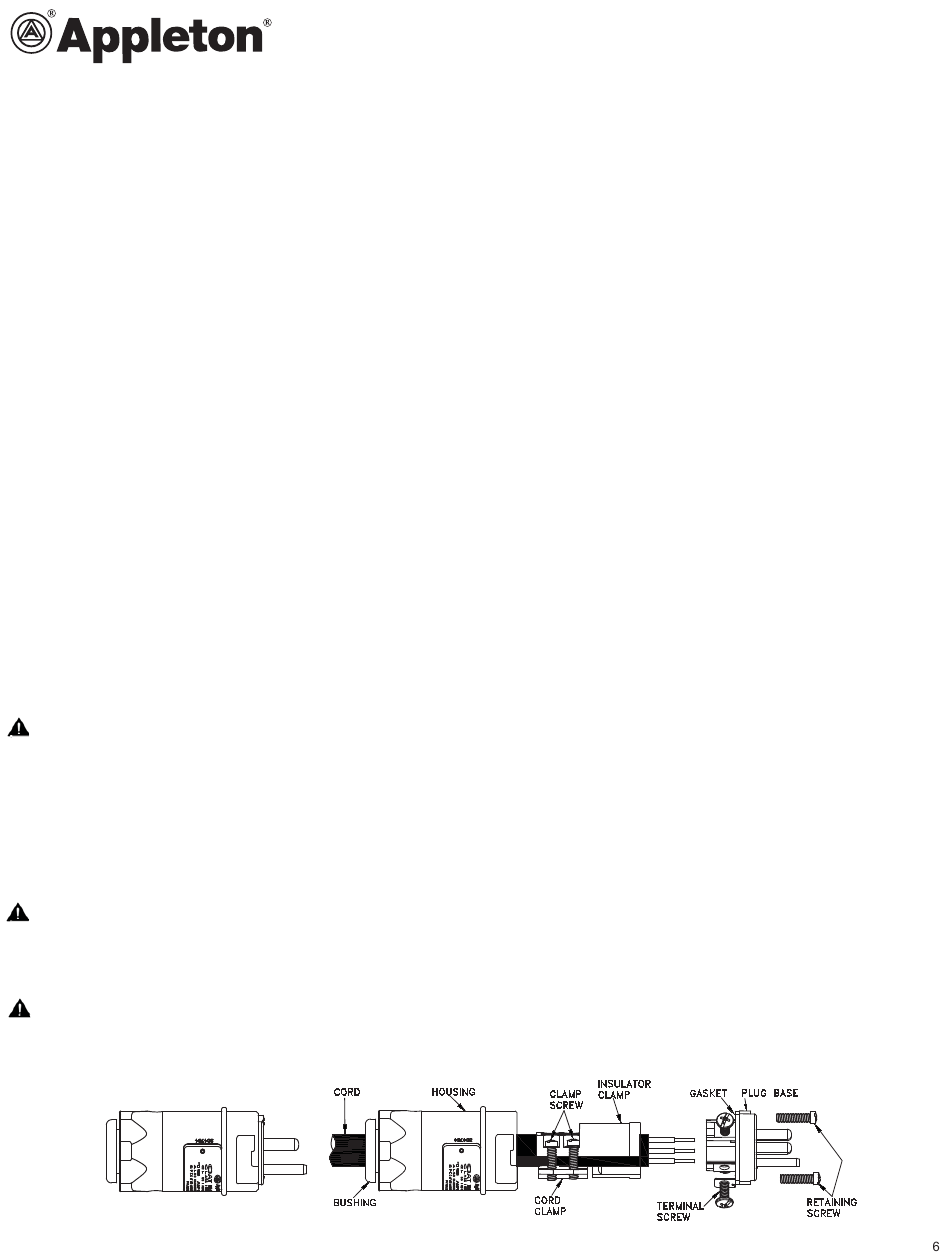

FIGURE 1
330100 INSTRUCTION SHEET
330100-000 Rev. F 05/15 • Page 1 of

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Appleton U-Line ECP-1523 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Appleton U-Line ECP-1523

Summary of Contents for Emerson Appleton U-Line ECP-1523

  • Page 1 330100 INSTRUCTION SHEET Installation & Maintenance Instructions for ECP/NCP Model “E” U-Line® Plugs RETAIN THIS INSTRUCTION SHEET FOR FUTURE REFERENCE. For safe installation and operation, please read these instructions carefully and with full understanding. Compliance & Ratings UL 1203 Class I, Group B, C; Class II, Group F, G; Class III Electrical Ratings Maximum Voltage: 125 V or 250 V;...

  • Page 2: Installing & Wiring

    Installing & Wiring 1. To disassemble the device, loosen (do not remove) the two front retaining screws from the plug and remove the plug base assembly from the plug housing. 2. Remove plug base and insulator clamp from the plug housing. Note orientation of insulator clamp before complete removal. 3.

  • Page 3: Electrical Testing

    Electrical Testing All wiring must be checked and tested to ensure that all circuits are according to plan and that there are no unwanted opens, shorts, or grounds. Do not apply power until the following steps are complete: 1. Test the continuity of wiring to verify the correct phasing and grounding connections. 2.

  • Page 4: Operation

    Shaded areas below indicate plug is suitable for Class I, Group B in addition to Class I, Groups C and D; Class II, Group F, G; and Class III The following plugs are designed for use in Class I, Groups B, C, and D; Class II Group F, G; and Class III, Div. I and Div. II hazardous locations and any standard U-Ground receptacle in non-hazardous areas.
  • Page 5 Intermateability—Plugs & Receptacles Table 2 Crouse- Appleton Appleton Appleton Killark No. of Appleton Receptacle Hinds “ECP” Plug “NCP” Plug Receptacle Receptacle Conduit Size Plug Rating Rating Receptacle Cat. No. Cat. No. Cat. No. Cat. No. Openings Gangs Cat. No. 125 V, 15 A, 1hp ECP-1523 NCP-1523 125 V, 20 A, 1hp...
  • Page 6 While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp, LLC. assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice. The Appleton and Emerson logos are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their registered owners.
