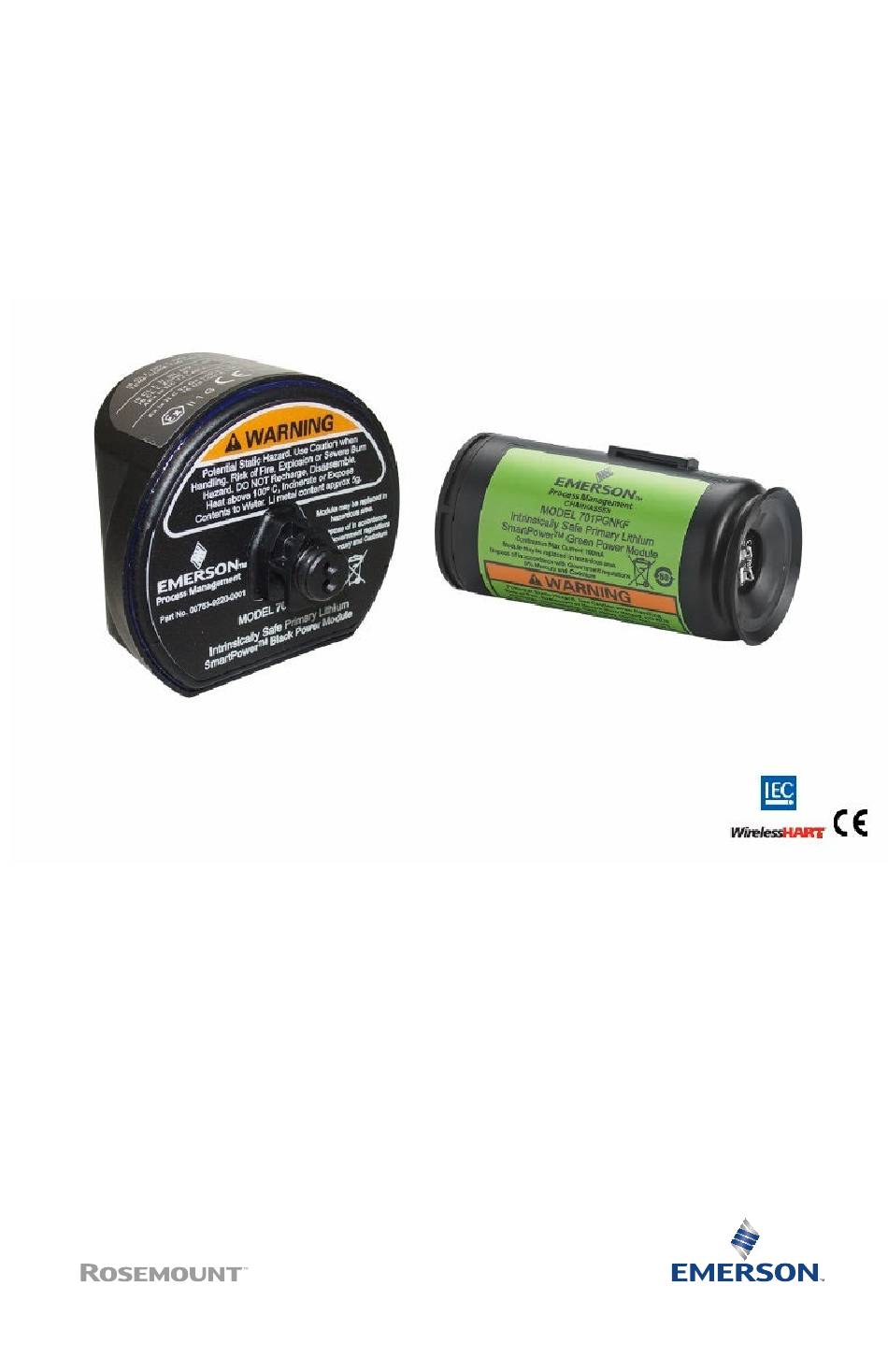

- Page 1 Quick Start Guide 00825-0100-4701, Rev DE August 2022 ™ SmartPower Solutions...
- Page 2 Refer to the wireless device's manuals and Quick Start Guides (QSG) for more instruction. This guide is also available electronically on Emerson.com/Rosemount. WARNING Explosions could result in death or serious injury.
-
Page 3: Table Of Contents
August 2022 Quick Start Guide Contents Warning on product labels......................5 Physical installation........................6 Verify operation........................... 8 Disposal/recycling of depleted power modules................11 Product Certifications.........................12 Quick Start Guide... - Page 4 Quick Start Guide August 2022 Emerson.com/Rosemount...
-
Page 5: Warning On Product Labels
August 2022 Quick Start Guide Warning on product labels The Rosemount 701P power modules each have a warning printed on them. In each case the warning text is the same. Below is a figure that shows each label. The text of the warning is: “WARNING Potential Static Hazard, Use Caution when Handling. -
Page 6: Physical Installation
Figure 2-1: Black Power Module Installation Installing Green power module (701PGN) Prerequisites Install the HART device according to standard installation practices and the manufacturer’s instructions, being sure to use an approved thread sealant on all connections. Emerson.com/Rosemount... - Page 7 August 2022 Quick Start Guide Procedure 1. Unscrew the power module cover from the wireless device. 2. Connect the green power module to the wireless device. The green power module has a keyed connection to prevent improper connection. If the Green power module is placed into the housing the wrong way, it will not fit entirely into the housing.
-
Page 8: Verify Operation
Communicator, the power module is powering the device and working correctly. Figure 3-1 shows how to connect a Field Communicator to a wireless device with either the black or green power module. Figure 3-1: Connect to Device A. Communication terminals B. Handheld communicator C. HART modem Emerson.com/Rosemount... - Page 9 August 2022 Quick Start Guide Figure 3-2: Field Communicator Verify operation using Emerson Wireless Gateway If the wireless device was configured with the Network ID and Join Key, and sufficient time has passed for network polling, the transmitter will be connected to the network.
- Page 10 If the wireless device does not turn on after the power module is installed, the power module may be depleted. Replace the power module and see if the wireless device turns on. If not, refer to the troubleshooting section of the wireless device's manual. Emerson.com/Rosemount...
-
Page 11: Disposal/Recycling Of Depleted Power Modules
August 2022 Quick Start Guide Disposal/recycling of depleted power modules 1. Dispose in accordance with applicable laws and regulations in your country and state. 2. Disposal should only be performed by authorized professionals in accordance with applicable requirements for hazardous waste transportation and disposal. -
Page 12: Product Certifications
A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine... - Page 13 August 2022 Quick Start Guide Markings Intrinsically Safe Class I, Division 1, Groups A, B, C, and D T3C(T ≤ +70 °C) Warning – refer to QIG 825-0100-4701 for Safe I.S. Use (See Table 5-1 Table 5-2 for parameters) Special Condition for Safe Use (X): The power modules are certified as components for use in intrinsically safe products where the suitability/combination of use in the final assembly shall be subjected to CSA acceptance.
- Page 14 ≤ +70 °C) T5 (-55 °C ≤ T ≤ +40 °C) 5.10 China 5.10.1 KF China 本质安全 证书 GYJ20.1357X（CCC 认证） 所用标准 GB3836.1 – 2010, GB3836.4 – 2010, GB3836.20-2010 标志 Ex ia IIC T4/T5 Ga 特殊使用条件(X): 电池外壳为非金属材质，可能产生静电危险，只能用湿布擦拭。 使用注意事项： 1. 电池外壳为非金属材质，可能产生静电危险，只能用湿布擦拭。使 用注意事项：1. 产品使用环境温度为：温度组别产品使用环境温度 Emerson.com/Rosemount...
- Page 15 August 2022 Quick Start Guide 温度组别 产品使用环境温度 -60 °C ≤ T ≤ +70 °C -60 °C ≤ T ≤ +40 °C 2. 本安电气参数： 电池类型 最高输出 最大输出 最大输出 最大外部等效参数 电压 Uo 电流 Io (A) 功率 Po Co(μF) Lo(μH) 2.16 0.83 2.78 2.71 3.
- Page 16 Quick Start Guide August 2022 Table 5-2: 701PGN 3.9 V 2.78 A 2.71 W 100 µF 4.6 µH Emerson.com/Rosemount...
- Page 17 August 2022 Quick Start Guide 5.11 Declaration of Conformity Quick Start Guide...
- Page 18 EN 60079-11: 2012 ATEX Notified Body SGS FIMKO OY [Notified Body Number: 0598] Takomotie 8 00380 HELSINKI Finland ATEX Notified Body for Quality Assurance SGS FIMKO OY [Notified Body Number: 0598] Takomotie 8 00380 HELSINKI Finland Page 2 of 2 Emerson.com/Rosemount...
- Page 19 August 2022 Quick Start Guide 5.12 China RoHS China RoHS Rosemount 701P List of Rosemount 701P Parts with China RoHS Concentration above MCVs Hazardous Substances / 有害物 Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
- Page 20 For more information: Emerson.com © 2022 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies.
