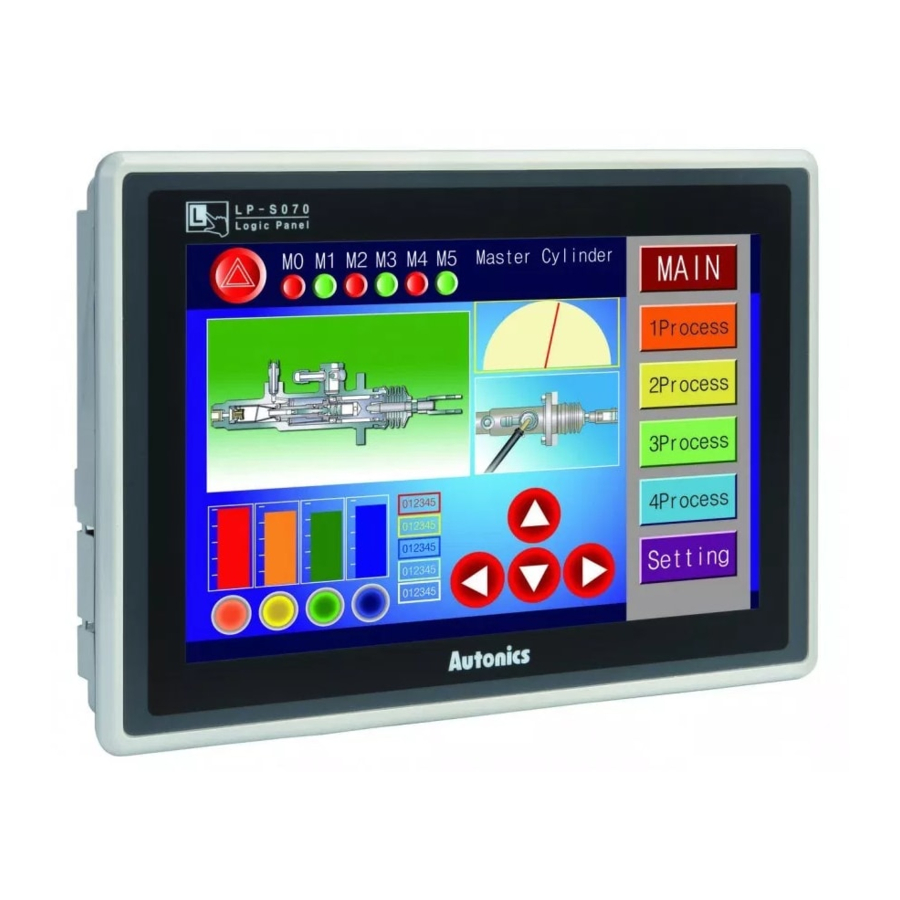

Autonics GP Series User Manual For Communication
  1. Manuals
  2. Brands
  3. Autonics Manuals
  4. Industrial Monitor
  5. GP Series
  6. User manual for communication

Autonics GP Series User Manual For Communication

Hide thumbs Also See for GP Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
for Communication
HMI
GP/LP Series
(CIMON)
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics GP Series

Summary of Contents for Autonics GP Series

  • Page 1 User Manual for Communication GP/LP Series (CIMON) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    (www.autonics.com) to download a copy.  The manual’s content may vary depending on changes to the product’s software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our website. ...

  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. Annotation mark. ※1 © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Reference Manual For Each Configuration

    GP-A Series User Manual, LP-A Series User Manual Hardware GP-S070 User Manual, GP-S044/057 User Manual, Manual S Series LP-S070 User Manual, LP-S044 User Manual Check connectable device, connection cable model name and protocol Communication Manual GP/LP Communication Manual © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    2.2.1 Connection Support PLC Model ............. ３２ 2.2.2 Connectable GP/LP Model ..............３２ 2.2.3 System Organization ................３２ 2.2.4 Communication Cable ................３３ 2.2.5 Communication Setting ................３３ 2.2.6 Available Device ..................３５ 2.2.7 Monitorable Device in GP/LP ..............４１ © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: System Organization

    1 System Organization System Organization GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422, Ethernet, CAN amd USB HOST port. © Copyright Reserved Autonics Co., Ltd.

  • Page 10: 1:1 Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 11: 1:N Communication Of Same Controllers

    The GP/LP observes the connected controllers or relays data between controllers. A GP/LP can communicate with the multiple of controller As. The controller has to be able to set address of each device, and the address should not be duplicated. © Copyright Reserved Autonics Co., Ltd.
  • Page 12 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 13: 1:N Communication Of Different Controllers

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 14: 1:1:N Communication

    GP/LP-S044, Link device multiple communication ※1 GP-S057 RS422/RS485 available Single direct communication available RS232C Link device single communication ※1 available CH1 or GP/LP-S070 Multiple direct communication available RS422/RS485 Link device multiple communication ※1 available © Copyright Reserved Autonics Co., Ltd.
  • Page 15 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 16: N:1:N Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Barcode Reader, Printer Communication

    Barcode reader ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070 GP/LP-A104 Barcode reader ○ ○ ○ ※RS232C/422 converter allows to opposite communication. © Copyright Reserved Autonics Co., Ltd.
  • Page 18 ○ GP/LP-S044, GP-S057 Printer ○ ○ Controller ○ ○ GP/LP-S070 Printer ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070, GP/LP-A104 Printer ○ © Copyright Reserved Autonics Co., Ltd.
  • Page 19 (3) Communication specification Item Specification Baud rate 300, 600, 1200, 3200, 4800, 9600, 19200, 38400, 57600 bps Data length 7, 8 bit Parity None, Odd, Even Stop bit 1, 2 bit Flow control DSR/DTR, XON/XOFF © Copyright Reserved Autonics Co., Ltd.
  • Page 20 1 System Organization © Copyright Reserved Autonics Co., Ltd.

  • Page 21: Communication Configuration By Devices

    × × ○ ○ ○ ○ ○ ○ ○ Loader 2.1.3 System Organization KDT CIMON BP/CP/XP Series CPU direct connection is connecting RS232C port of GP/LP and tool port (RS232C) of the PLC. © Copyright Reserved Autonics Co., Ltd.

  • Page 22: Communication Cable

    Defaul is as below. Condition Value Stop bit Data bit Parity None Baud rate 38,400 Even tough baudrate is settable from 300 to 115200bps, automatically starts at the default value, 38,400, when it is connected. © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Available Device

    Decimal Hexadecimal Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal DDDD Decimal DDDD Decimal DDDD Decimal DDDD Word Decimal DDDD Decimal DDDD Decimal DDDD Format D/d: decimal, H/h: hexadecimal © Copyright Reserved Autonics Co., Ltd.
  • Page 24 Counter contact C255 Data register D4999 Timer set value TS255 register Timer current TC255 Word value register Counter set value CS255 register Counter current CC255 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 25 Counter contact C255 Data register D4999 Timer set value TS255 register Timer current value TC255 Word register Counter set value CS255 register Counter current CC255 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 26 Read only Data register D9999 Timer set value TS1023 register Timer current TC1023 Word value register Counter set value CS1023 register Counter current CC1023 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 27 Read only Data register D4999 Timer set value TS1023 register Timer current value TC1023 Word register Counter set value CS1023 register Counter current CC1023 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 28 Read only Data register D31999 Timer set value TS4095 register Timer current value TC4095 Word register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 29 Read only Data register D31999 Timer set value TS4095 register Timer current value TC4095 Word register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 30 Read only Data register D31999 Timer set value T4095 register Timer current value TC4095 Word register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.

  • Page 31: Monitorable Device In Gp/Lp

    Output relay Internal auxiliary relay Electrostatic relay Link relay Special relay Timer contact Counter contact Data register Timer set value register Word Timer current value register Counter set value register Counter current value register © Copyright Reserved Autonics Co., Ltd.

  • Page 32: Kdt Cimon Cp/Xp Plc Comm. Module Connection

    ○ ○ module 2.2.3 System Organization Serial communication module Serial communication module KDT CIMON CP/XP Series communication module connection is connecting RS232C, RS422/485 port of GP/LP and PLC compatible serial communication module (RS232C, RS422/485). © Copyright Reserved Autonics Co., Ltd.

  • Page 33: Communication Cable

    Communication setting is configured with CICON (KDT PLC Program), when using KDT CIMON CP/XP Series. (For more information, please refer to the manual from KDT.) Defaul is as below. Condition Value Stop bit Data bit Parity None Baud rate 38,400 © Copyright Reserved Autonics Co., Ltd.
  • Page 34 In the module setting window, configure the settings of each channel as below and click ‘Write’ button. Item Setting Protocol HMI Protocol Address 0 to 31 Stop bit Data bit Parity None Baud rate 38,400 Response delay time Reboot PLC power. © Copyright Reserved Autonics Co., Ltd.

  • Page 35: Available Device

    Hexadecimal DDh Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal Hexadecimal DDDh Decimal DDDD Decimal DDDD Decimal DDDD Decimal DDDD Word Decimal DDDD Decimal DDDD Decimal DDDD Format D/d: decimal, H/h: hexadecimal © Copyright Reserved Autonics Co., Ltd.
  • Page 36 Read only Data register D9999 Timer set value TS1023 register Timer current value TC1023 Word register Counter set value CS1023 register Counter current CC1023 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 37 Read only Data register D4999 Timer set value TS1023 register Timer current value TC1023 Word register Counter set value CS1023 register Counter current CC1023 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 38 Read only Data register D31999 Timer set value TS4095 register Timer current value TC4095 Word register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 39 Read only Data register D31999 Timer set value TS4095 register Timer current TC4095 Word value register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.
  • Page 40 Read only Data register D31999 Timer set value T4095 register Timer current TC4095 Word value register Counter set value CS4095 register Counter current CC4095 value register ※1: Please refer to ‘2.2.6.3 I/O Point Map’. © Copyright Reserved Autonics Co., Ltd.

  • Page 41: Monitorable Device In Gp/Lp

    Output relay Internal auxiliary relay Electrostatic relay Link relay Special relay Timer contact Counter contact Data register Timer set value register Word Timer current value register Counter set value register Counter current value register © Copyright Reserved Autonics Co., Ltd.
  • Page 42 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MTA-GPLPC_CIMON-V1.0-1907US...
