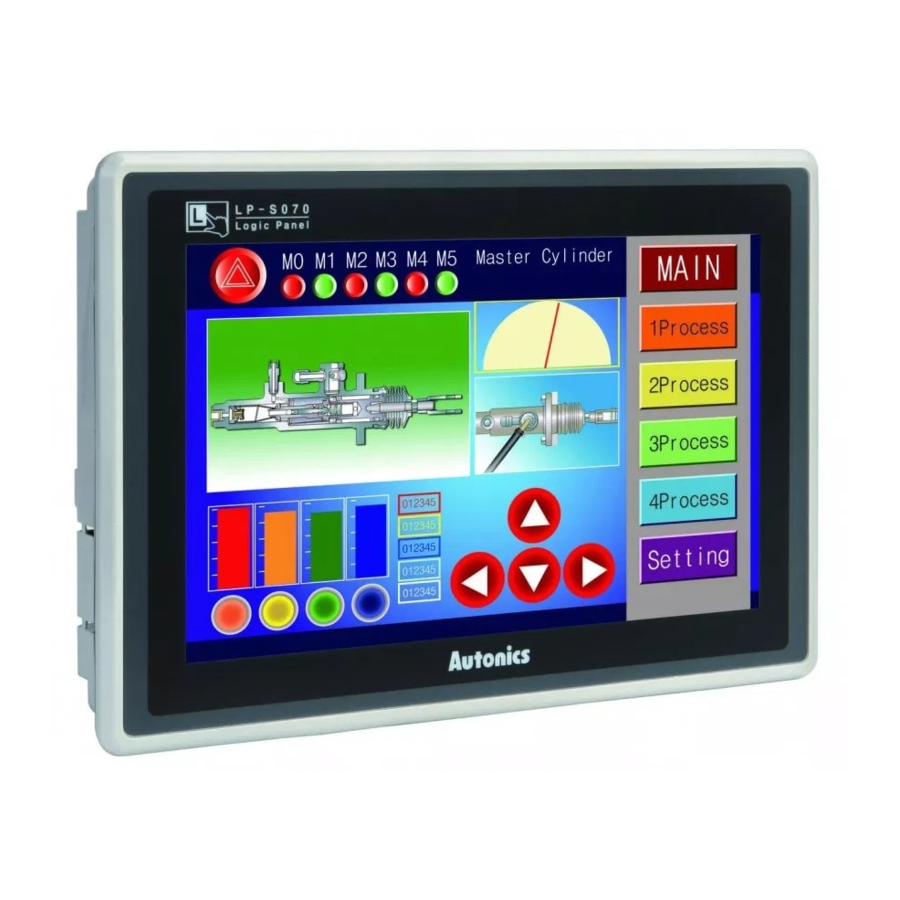

Autonics GP Series User Manual For Communication

Hmi (konics)
Hide thumbs Also See for GP Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
for Communication
HMI
GP/LP Series
(KONICS)
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics GP Series

Summary of Contents for Autonics GP Series

  • Page 1 User Manual for Communication GP/LP Series (KONICS) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    (www.autonics.com) to download a copy.  The manual’s content may vary depending on changes to the product’s software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our website. ...

  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. Annotation mark. ※1 © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Reference Manual For Each Configuration

    GP-A Series User Manual, LP-A Series User Manual Hardware GP-S070 User Manual, GP-S044/057 User Manual, Manual S Series LP-S070 User Manual, LP-S044 User Manual Check connectable device, connection cable model name and protocol Communication Manual GP/LP Communication Manual © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    2.1.1 Connection Support Products ..............２１ 2.1.2 Connectable GP/LP Model ..............２１ 2.1.3 System Organization ................２１ 2.1.4 Communication Cable ................２２ 2.1.5 Communication Configuration ..............２２ 2.1.6 Available Device ..................２３ 2.1.7 Monitorable Device in GP/LP ..............３６ © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: System Organization

    1 System Organization System Organization GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422, Ethernet, CAN amd USB HOST port. © Copyright Reserved Autonics Co., Ltd.

  • Page 10: 1:1 Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 11: 1:N Communication Of Same Controllers

    The GP/LP observes the connected controllers or relays data between controllers. A GP/LP can communicate with the multiple of controller As. The controller has to be able to set address of each device, and the address should not be duplicated. © Copyright Reserved Autonics Co., Ltd.
  • Page 12 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 13: 1:N Communication Of Different Controllers

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 14: 1:1:N Communication

    GP/LP-S044, Link device multiple communication ※1 GP-S057 RS422/RS485 available Single direct communication available RS232C Link device single communication ※1 available CH1 or GP/LP-S070 Multiple direct communication available RS422/RS485 Link device multiple communication ※1 available © Copyright Reserved Autonics Co., Ltd.
  • Page 15 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 16: N:1:N Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Barcode Reader, Printer Communication

    Barcode reader ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070 GP/LP-A104 Barcode reader ○ ○ ○ ※RS232C/422 converter allows to opposite communication. © Copyright Reserved Autonics Co., Ltd.
  • Page 18 ○ GP/LP-S044, GP-S057 Printer ○ ○ Controller ○ ○ GP/LP-S070 Printer ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070, GP/LP-A104 Printer ○ © Copyright Reserved Autonics Co., Ltd.
  • Page 19 (3) Communication specification Item Specification Baud rate 300, 600, 1200, 3200, 4800, 9600, 19200, 38400, 57600 bps Data length 7, 8 bit Parity None, Odd, Even Stop bit 1, 2 bit Flow control DSR/DTR, XON/XOFF © Copyright Reserved Autonics Co., Ltd.
  • Page 20 1 System Organization © Copyright Reserved Autonics Co., Ltd.

  • Page 21: Communication Configuration By Devices

    × KRN50 Modbus × × ○ ○ ○ ○ ○ ○ ○ ※ 1 (TYPE A) 2.1.3 System Organization KONICS DPU Series executes RS485 commnication and it executes also RS232C communication with RS232/422 converter. © Copyright Reserved Autonics Co., Ltd.

  • Page 22: Communication Cable

    Stop bit 2 bit Selectable Address 0 to 31 Selectable Configure the address in GP/LP according to the above settings. Please refer to the user manual of corresponding GP/LP product for the address configuration. © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Available Device

    Read DP30109 Model name 5 Read DP30110 Model name 6 Read DP30111 Model name 7 Read DP30112 Model name 8 Read DP30113 Model name 9 Read DP30114 Model name 10 Read DP30115 Reserved Read © Copyright Reserved Autonics Co., Ltd.
  • Page 24 Control integer KI value Read/Write DP40025 Output control mode Read/Write DP40026 Event input 1 mode Read/Write DP40027 Event input 2 mode Read/Write DP40028 Event input 3 mode Read/Write DP40029 Auto ref input selector Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 25 Model name 3 Read 300108 Model name 4 Read 300109 Model name 5 Read 300110 Model name 6 Read 300111 Model name 7 Read 300112 Model name 8 Read 300113 Model name 9 Read © Copyright Reserved Autonics Co., Ltd.
  • Page 26 400022 Bar display mode Read/Write 400023 Control integer KP value Read/Write 400024 Control integer KI value Read/Write 400025 Output control mode Read/Write 400026 Event input 1 mode Read/Write 400027 Event input 2 mode Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 27 Fuse break alarm output setting Read/Write Frequency error alarm output 400040 Read/Write setting Heatsink overheating alarm output 400041 Read/Write setting 400042 Element error alarm output setting Read/Write 400043 Heater break alarm output setting Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 28 KR30003 CH2-present value(PV) Read Bit position Read Unit 15 to 10 Read Unit group 9 to 4 Read KR30004 Status 3 to 2 Read Decimal point position of 1 to 0 Read display value © Copyright Reserved Autonics Co., Ltd.
  • Page 29 Read/Write KR40066 Lock setting Read/Write KR40067 Backlight turn ON method Read/Write KR40070 Using reserved record function or not Read/Write KR40071 Record start hour Read/Write KR40072 Record start minute Read/Write KR40073 Record end hour Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 30 CH1 temperature unit Read/Write KR40304 CH1 graph lower limit scale value Read/Write KR40305 CH1 graph upper limit scale value Read/Write KR40306 CH1 lower limit input value Read/Write KR40307 CH1 upper limit input value Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 31 DI-2 input terminal function Read/Write 000051 Paper feed function Read/Write 000052 Paper list print function Read/Write 000101 CH 1 display mode Read/Write 000102 CH 2 display mode Read/Write Read/Write ※ 1 000103 Display standard mode © Copyright Reserved Autonics Co., Ltd.
  • Page 32 Read 300114 Model Name10 Read 300118 Coil start address Read 300119 Coil quantity Read 300120 Input start address Read 300121 Input quantity Read 300122 Holding REG start address Read 300123 Holding REG quantity Read © Copyright Reserved Autonics Co., Ltd.
  • Page 33 CH1 alarm output 2 lower limit setting Read/Write 400107 value CH1 alarm output 2 upper limit setting Read/Write 400108 value 400109 CH1 alarm output hysteresis Read/Write 400110 CH2 alarm output 1 operation mode Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 34 CH2 temperature unit Read/Write 400322 CH2 graph lower limit scale value Read/Write 400323 CH2 graph upper limit scale value Read/Write 400324 CH2 lower limit input value Read/Write 400325 CH2 upper limit input value Read/Write © Copyright Reserved Autonics Co., Ltd.
  • Page 35 CH2 upper limit scale display value Read/Write 400329 CH1 decimal point position of scale Read/Write 400330 CH2 record display unit Read/Write 400331 CH2 input correction Read/Write 400332~400333 CH2 CH name Read/Write 450001~452048 User Logo © Copyright Reserved Autonics Co., Ltd.

  • Page 36: Monitorable Device In Gp/Lp

    Recorder KRN50 (1) Modbus Type Mark Device Bit device area Word Word device area (2) Modbus TYPE A Type Mark Device Bit device area Bit device area Word device area Word Word device area © Copyright Reserved Autonics Co., Ltd.
  • Page 37 2 Communication Configuration by Devices © Copyright Reserved Autonics Co., Ltd.
  • Page 38 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MTA-GPLPC_KONICS-V1.0-1907US...

This manual is also suitable for:

Lp seriesGp-s044Lp-s044Gp-s057Gp-s070Lp-s070 ... Show all
