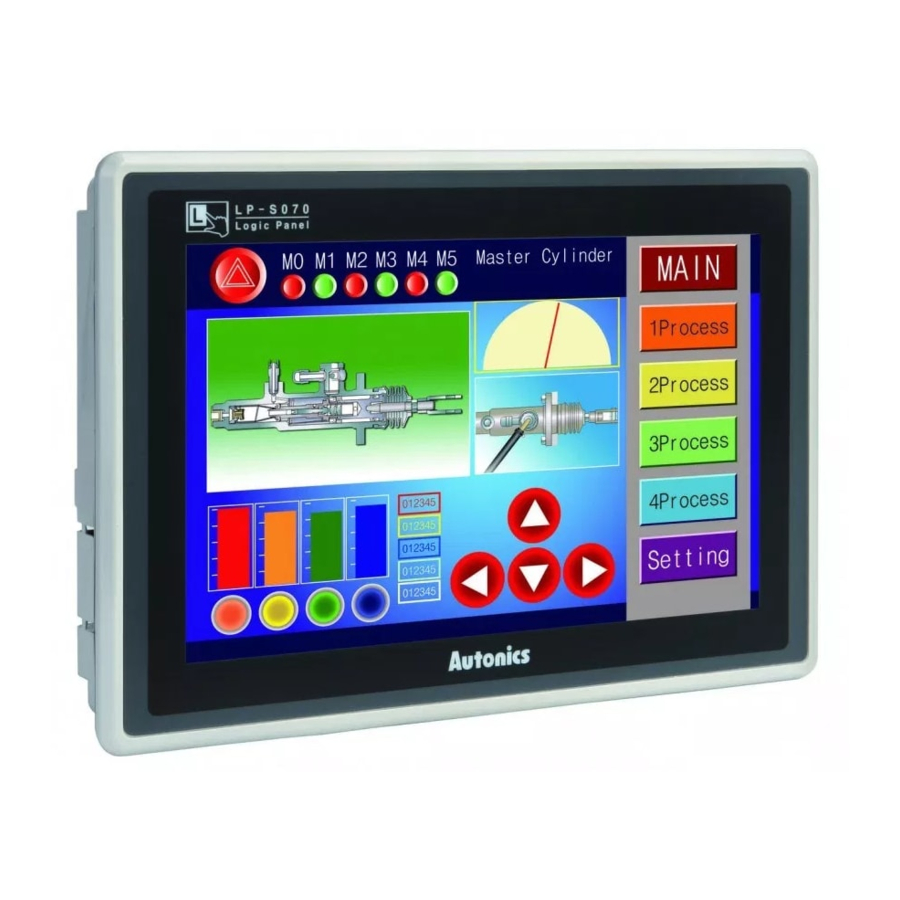

User Manual
for Communication
HMI
GP/LP Series
(Panasonic NAiS)
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autonics GP Series

Summary of Contents for Autonics GP Series

  • Page 1 Communication GP/LP Series (Panasonic NAiS) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    (www.autonics.com) to download a copy.  The manual’s content may vary depending on changes to the product’s software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our website. ...

  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. Annotation mark. ※1 © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Reference Manual For Each Configuration

    GP-A Series User Manual, LP-A Series User Manual Hardware GP-S070 User Manual, GP-S044/057 User Manual, Manual S Series LP-S070 User Manual, LP-S044 User Manual Check connectable device, connection cable model name and protocol Communication Manual GP/LP Communication Manual © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    2.1.1 Connection Support PLC Model ............. ２１ 2.1.2 Connectable GP/LP Model ..............２１ 2.1.3 System Organization ................２２ 2.1.4 Communication Cable ................２２ 2.1.5 Communication Configuration ..............２３ 2.1.6 Available Device ..................２６ 2.1.7 Monitorable Device in GP/LP ..............３５ © Copyright Reserved Autonics Co., Ltd.

  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: System Organization

    1 System Organization System Organization GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422, Ethernet, CAN amd USB HOST port. © Copyright Reserved Autonics Co., Ltd.

  • Page 10: 1:1 Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 11: 1:N Communication Of Same Controllers

    The GP/LP observes the connected controllers or relays data between controllers. A GP/LP can communicate with the multiple of controller As. The controller has to be able to set address of each device, and the address should not be duplicated. © Copyright Reserved Autonics Co., Ltd.
  • Page 12 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 13: 1:N Communication Of Different Controllers

    RS232C or RS232C-B port, GP/LP-A104 Link device※1 communication available Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 14: 1:1:N Communication

    Link device multiple communication GP-S057 RS422/RS485 available Single direct communication available ※ 1 RS232C Link device single communication available CH1 or GP/LP-S070 Multiple direct communication available RS422/RS485 ※ 1 Link device multiple communication available © Copyright Reserved Autonics Co., Ltd.
  • Page 15 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 16: N:1:N Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Barcode Reader, Printer Communication

    Barcode reader ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070 GP/LP-A104 Barcode reader ○ ○ ○ ※RS232C/422 converter allows to opposite communication. © Copyright Reserved Autonics Co., Ltd.
  • Page 18 ○ GP/LP-S044, GP-S057 Printer ○ ○ Controller ○ ○ GP/LP-S070 Printer ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070, GP/LP-A104 Printer ○ © Copyright Reserved Autonics Co., Ltd.
  • Page 19 (3) Communication specification Item Specification Baud rate 300, 600, 1200, 3200, 4800, 9600, 19200, 38400, 57600 bps Data length 7, 8 bit Parity None, Odd, Even Stop bit 1, 2 bit Flow control DSR/DTR, XON/XOFF © Copyright Reserved Autonics Co., Ltd.
  • Page 20 1 System Organization © Copyright Reserved Autonics Co., Ltd.

  • Page 21: Communication Configuration By Devices

    ○ ○ ○ ○ ○ ○ ○ Loader CPU direct FP0R-C16 × ○ ○ ○ ○ ○ ○ ○ ○ Loader CPU direct FP0R-C32 × ○ ○ ○ ○ ○ ○ ○ ○ Loader © Copyright Reserved Autonics Co., Ltd.

  • Page 22: System Organization

    FP Series executes RS232C commnication. By Tool Port, it is connected with GP/LP. It executes also RS-422 communication with RS-232/422 converter. 2.1.4 Communication Cable (1) Using Tool Port  Applied cable: C3M5P10-D9F0-M5M0 (2) Using COM Port  Applied cable: C3M5P11-D9F0-W4*0 © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Communication Configuration

    In case of PLC is FP0 Series, select ‘9600bps’.  In case of PLC is FP Sigma Series, select ‘19200bps’.  Click ‘OK’ and dialog box for downloading appears. Click ‘OK’ and baudrate is changed. © Copyright Reserved Autonics Co., Ltd.
  • Page 24 In case of PLC is FP Sigma Series, select ‘0:19200bps’.  Click ‘OK’ and dialog box for downloading appears. Click ‘OK’ and baudrate is changed. After completing configuration, PLC model should be RUN status once to use COM Port. © Copyright Reserved Autonics Co., Ltd.
  • Page 25 In case of PLC is FP Sigma Series, select ‘19200bps’.  Click ‘OK’ and dialog box for downloading appears. Click ‘OK’ and baudrate is changed. After completing configuration, PLC model should be RUN status once to use COM Port. © Copyright Reserved Autonics Co., Ltd.

  • Page 26: Available Device

    Decimal Hexadecimal Bit address (Decimal) Bit address (Decimal) Word address (Decimal) None Word address (Decimal) None Word address (Decimal) None Word Word address (Decimal) None Word address (Decimal) Word address (Decimal) Word address (Decimal) © Copyright Reserved Autonics Co., Ltd.
  • Page 27 Timer setting value [10ms] SV99 Timer setting value [100ms] SV99 Timer setting value [1000ms] SV99 Counter current value [16 bit] EV100 EV143 Counter setting value [16 bit] SV100 SV143 Data register DT1659 Special register DT9000 DT9111 © Copyright Reserved Autonics Co., Ltd.
  • Page 28 Timer setting value [10ms] SV99 Timer setting value [100ms] SV99 Timer setting value [1000ms] SV99 Counter current value [16 bit] EV100 EV143 Counter setting value [16 bit] SV100 SV143 Data register DT6143 Special register DT9000 DT9111 © Copyright Reserved Autonics Co., Ltd.
  • Page 29 Timer setting value [10ms] SV99 Timer setting value [100ms] SV99 Timer setting value [1000ms] SV99 Counter current value [16 bit] EV100 EV143 Counter setting value [16 bit] SV100 SV143 Data register DT16382 Special register DT90000 DT90111 © Copyright Reserved Autonics Co., Ltd.
  • Page 30 Timer setting value [10ms] SV1007 Timer setting value [100ms] SV1007 Timer setting value [1000ms] SV1007 Counter current value [16 bit] EV1008 EV1023 Counter setting value [16 bit] SV1008 SV1023 Data register DT32764 Special register DT90000 DT90259 © Copyright Reserved Autonics Co., Ltd.
  • Page 31 Timer setting value [10ms] SV1007 Timer setting value [100ms] SV1007 Timer setting value [1000ms] SV1007 Counter current value [16 bit] EV1008 EV1023 Counter setting value [16 bit] SV1008 SV1023 Data register DT32764 Special register DT90000 DT90259 © Copyright Reserved Autonics Co., Ltd.
  • Page 32 Timer setting value [10ms] SV1007 Timer setting value [100ms] SV1007 Timer setting value [1000ms] SV1007 Counter current value [16 bit] EV1008 EV1023 Counter setting value [16 bit] SV1008 SV1023 Data register DT32764 Special register DT90000 DT90259 © Copyright Reserved Autonics Co., Ltd.
  • Page 33 Timer setting value [10ms] SV1024 Timer setting value [100ms] SV1024 Timer setting value [1000ms] SV1024 Counter current value [16 bit] EV100 EV1024 Counter setting value [16 bit] SV100 SV1024 Data register DT12315 Special register DT90000 DT90439 © Copyright Reserved Autonics Co., Ltd.
  • Page 34 Timer setting value [10ms] SV1024 Timer setting value [100ms] SV1024 Timer setting value [1000ms] SV1024 Counter current value [16 bit] EV100 EV1024 Counter setting value [16 bit] SV100 SV1024 Data register DT32765 Special register DT90000 DT90439 © Copyright Reserved Autonics Co., Ltd.

  • Page 35: Monitorable Device In Gp/Lp

    In case of FP Sigma Series Timer current value Word Counter setting value DT16 Data/File/Special register 16 bit 32 bit type combining designated DT32 Data/File/Special register number of device and next number of device © Copyright Reserved Autonics Co., Ltd.
  • Page 36 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MTA-GPLPC_Panasonic NAiS-V1.0-1907US...
