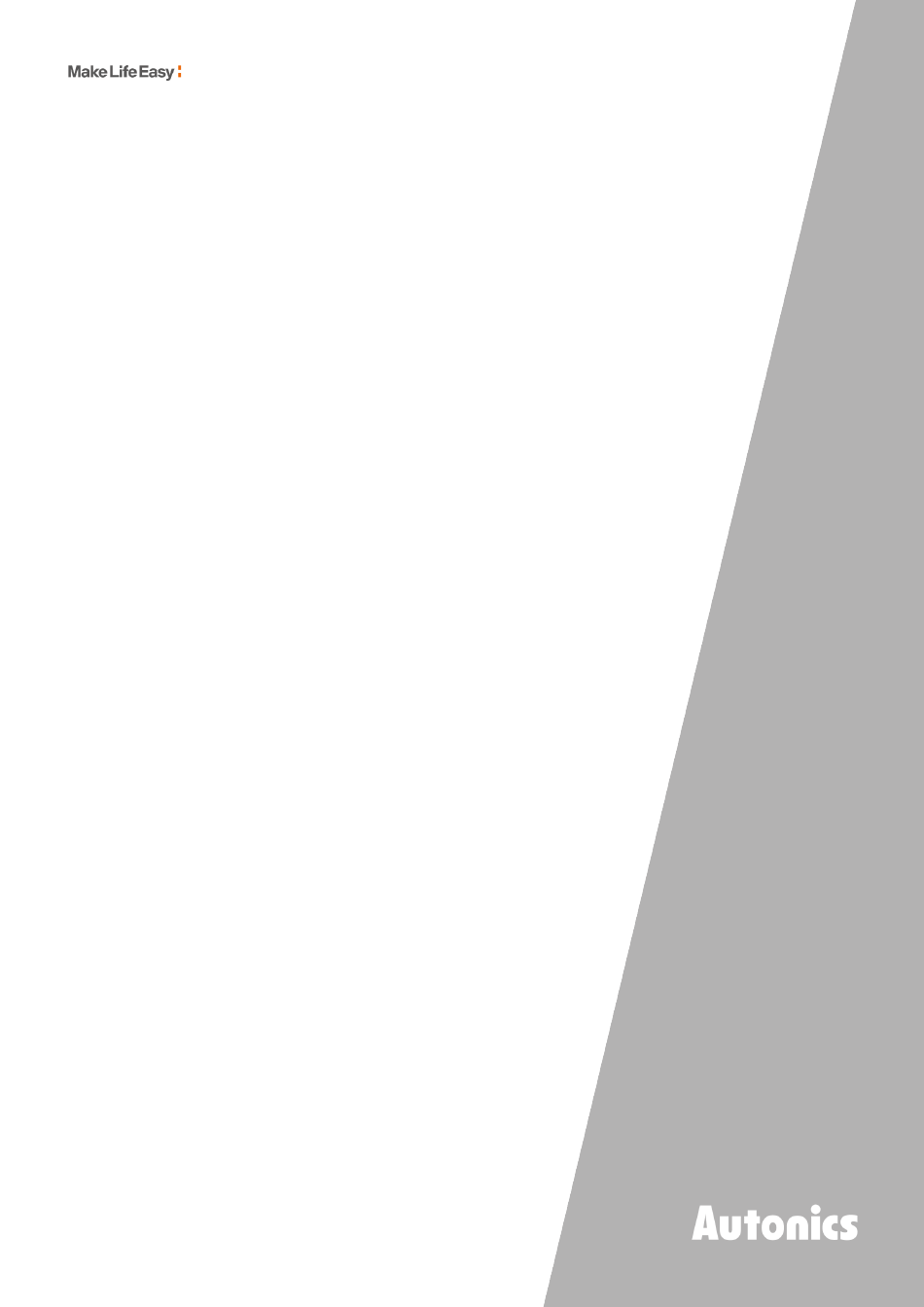

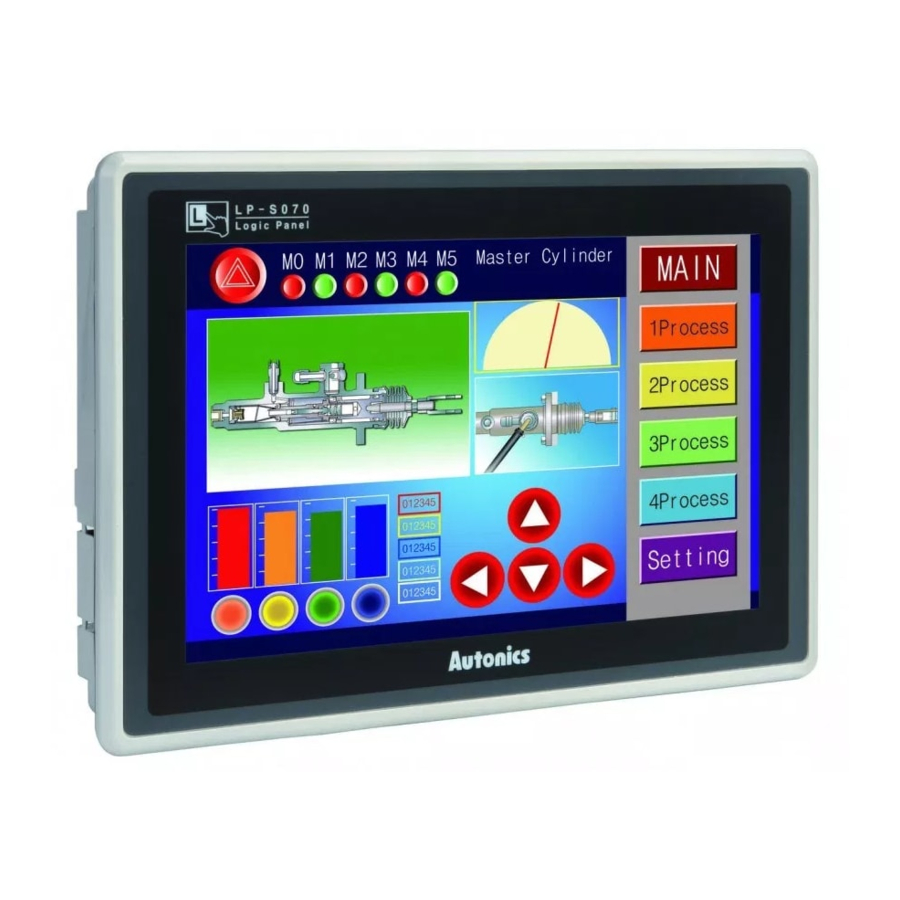

  • Page 1 User Manual for Communication GP/LP Series (Autonics) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    (www.autonics.com) to download a copy.  The manual’s content may vary depending on changes to the product’s software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our website. ...

  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. Annotation mark. ※1 © Copyright Reserved Autonics Co., Ltd.

  • Page 6: Reference Manual For Each Configuration

    GP-A Series User Manual, LP-A Series User Manual Hardware GP-S070 User Manual, GP-S044/057 User Manual, Manual S Series LP-S070 User Manual, LP-S044 User Manual Check connectable device, connection cable model name and protocol Communication Manual GP/LP Communication Manual © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    2.1.4 Communication Cable ................２３ 2.1.5 Available Device ..................２４ 2.1.6 Monitorable Device in GP/LP ..............３１ Connection to Autonics LP Series ..............３３ 2.2.1 Connection Support Products ..............３３ 2.2.2 Connectable GP/LP Model ..............３３ 2.2.3 System Organization ................３３...

  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.

  • Page 9: System Organization

    1 System Organization System Organization GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422, Ethernet, CAN amd USB HOST port. © Copyright Reserved Autonics Co., Ltd.

  • Page 10: 1:1 Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 11: 1:N Communication Of Same Controllers

    The GP/LP observes the connected controllers or relays data between controllers. A GP/LP can communicate with the multiple of controller As. The controller has to be able to set address of each device, and the address should not be duplicated. © Copyright Reserved Autonics Co., Ltd.
  • Page 12 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 13: 1:N Communication Of Different Controllers

    RS232C or RS232C-B port, GP/LP-A104 Link device※1 communication available Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 14: 1:1:N Communication

    Link device multiple communication GP-S057 RS422/RS485 available Single direct communication available ※ 1 RS232C Link device single communication available CH1 or GP/LP-S070 Multiple direct communication available RS422/RS485 ※ 1 Link device multiple communication available © Copyright Reserved Autonics Co., Ltd.
  • Page 15 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.

  • Page 16: N:1:N Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Barcode Reader, Printer Communication

    Barcode reader ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070 GP/LP-A104 Barcode reader ○ ○ ○ ※RS232C/422 converter allows to opposite communication. © Copyright Reserved Autonics Co., Ltd.
  • Page 18 ○ GP/LP-S044, GP-S057 Printer ○ ○ Controller ○ ○ GP/LP-S070 Printer ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070, GP/LP-A104 Printer ○ © Copyright Reserved Autonics Co., Ltd.
  • Page 19 (3) Communication specification Item Specification Baud rate 300, 600, 1200, 3200, 4800, 9600, 19200, 38400, 57600 bps Data length 7, 8 bit Parity None, Odd, Even Stop bit 1, 2 bit Flow control DSR/DTR, XON/XOFF © Copyright Reserved Autonics Co., Ltd.
  • Page 20 1 System Organization © Copyright Reserved Autonics Co., Ltd.

  • Page 21: Communication Configuration By Devices

    Communication Configuration by Devices Autonics Product GP/LP can be communicated with Autonics’s products such as Multi Temperature Controllers (TK/TM/TMH/TZ Series), Temperature/Himidity Transducer (THD-RT Series), Counter/Timer (CT Series), Panel Meter (MT Series), Pulse Meter (MP Series), Display Unit (DS/DA Series), Digital Remote I/O (ARM/ARD Series).

  • Page 22: System Organization

    ※ Only Autonics’ ARD Series can be connected to CAN port. 2.1.3 System Organization Autonics’s TK,TM TMH, TZ, THD-RT, CT, MT, MP, DS/DA, ARM products communicate RS485 as default during cable connection as follows; Also RS232C communication is available by using RS485/232 converter.

  • Page 23: Communication Cable

    For the detailed informations about communication and address setting for each product, please refer to user manual for corresponding produts. Since Autonics controllers are classified as Read/Write devices, so take care during use. Especially using as CH2, please refer to ‘1 System Organization’.

  • Page 24: Available Device

    2 Communication Configuration by Devices 2.1.5 Available Device 2.1.5.1 Please refer to ‘TK communication manual’ for Autonics TK’s available devices (1) Modbus (TK_Mod) Range Type Device Mark Start Bit device area Refer to TK device table Word Word device area...
  • Page 25 2 Communication Configuration by Devices 2.1.5.3 Please refer to ‘TMH communication manual’ for Autonics TMH’s available devices (1) TMH2 Range Type Device Name Start Bit device area 000001 000002 100001 100002 Bit device area 100005 100008 300101 300114 300118 300126...
  • Page 26 300114 Word 300118 300126 400301 400311 Word device area 400401 400458 2.1.5.4 Autonics TZ’s available devces and parameters can be represented asf follows: Only TZ exists for the available device. Range Type Device Name Start Word Word device area Device...
  • Page 27 Read 300124 Input REG start address Read 300125 Input REG quantity Read 2.1.5.6 Please refer to ‘CT communication manual’ for Autonics CT’s available devices (1) Modbus (CT_Mod) Range Type Device Name Start Bit device area Refer to CT device table...
  • Page 28 2 Communication Configuration by Devices 2.1.5.7 MT Series Autonics MT’s available devces and parameters can be represented asf follows: Only MT exists for the available device. (1) In case of MT Series, not ModBus communication type Range Type Device Name...
  • Page 29 Dot setting value Read 300003 Max. signal input Read 300004 Min. signal input Read 2.1.5.8 Autonics MP’s available devces and parameters can be represented asf follows: Only MP exists for the available device. Range Type Device Name Start Word Word device area(32Bit)
  • Page 30 / numeric input / ASCII input / ASCII display of GP Editor, and accurate parameter value and read / write can be performed. 2.1.5.9 DS/DA Please refer to ‘DS/DA instruction manual’ for Autonics Display Unit DS/DA Series’s available devices Range Type...

  • Page 31: Monitorable Device In Gp/Lp

    2.1.6.4 TZ Series Type Mark Device Note Word Data register 2.1.6.5 THD-RT(MOD) (1) Modbus Type Mark Device Note Word Word device area (2) Modbus TYPE A Type Mark Device Note Word Word device area © Copyright Reserved Autonics Co., Ltd.
  • Page 32 2.1.6.9 DS/DA Series Type Mark Device Note Word device area Word Word device area 2.1.6.10 ARM Series Type Mark Device Note Bit device area Bit device area Word device area Word Word device area © Copyright Reserved Autonics Co., Ltd.

  • Page 33: Connection To Autonics Lp Series

    × ○ ○ ○ ○ ○ ○ ○ ○ LP-S070 LP-A070, × × × × × ○ ○ ○ ○ LP-A104 2.2.3 System Organization Autonics LP Series performs RS 232C communication as a default. © Copyright Reserved Autonics Co., Ltd.

  • Page 34: Communication Cable

    2 Communication Configuration by Devices 2.2.4 Communication Cable (1) RS232C  Applied cable: C3M5P14-D9F0-D9F0 (2) RS422  Applied cable: C3M5P15-D9M0-D9M0 © Copyright Reserved Autonics Co., Ltd.

  • Page 35: Available Device

    Word address(Decimal) none Word address(Decimal) none Word address(Decimal) none Word Word address(Decimal) none Word address(Decimal) Word address(Decimal) Word address(Decimal) Word address(Decimal) Word X1 = Bit X10 to X1F , Word UW10 = UB100 to UB10F © Copyright Reserved Autonics Co., Ltd.
  • Page 36 Internal auxiliary register M9999 File register R3999 Special register F300 Link register L255 Word Timer current value [10ms] T127 Timer current value T128 T255 [100ms] Counter current value C255 [16 bit] Data register D9999 © Copyright Reserved Autonics Co., Ltd.

  • Page 37: Monitorable Device In Gp/Lp

    Special relay Status relay Link relay Timer contact Counter contact Input register Output register Internal auxiliary register Special register Word Link register Timer current value Counter current value Data register 16 bit File register © Copyright Reserved Autonics Co., Ltd.
  • Page 38 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MTA-GPLPC_Autonics-V1.0-1907US...
