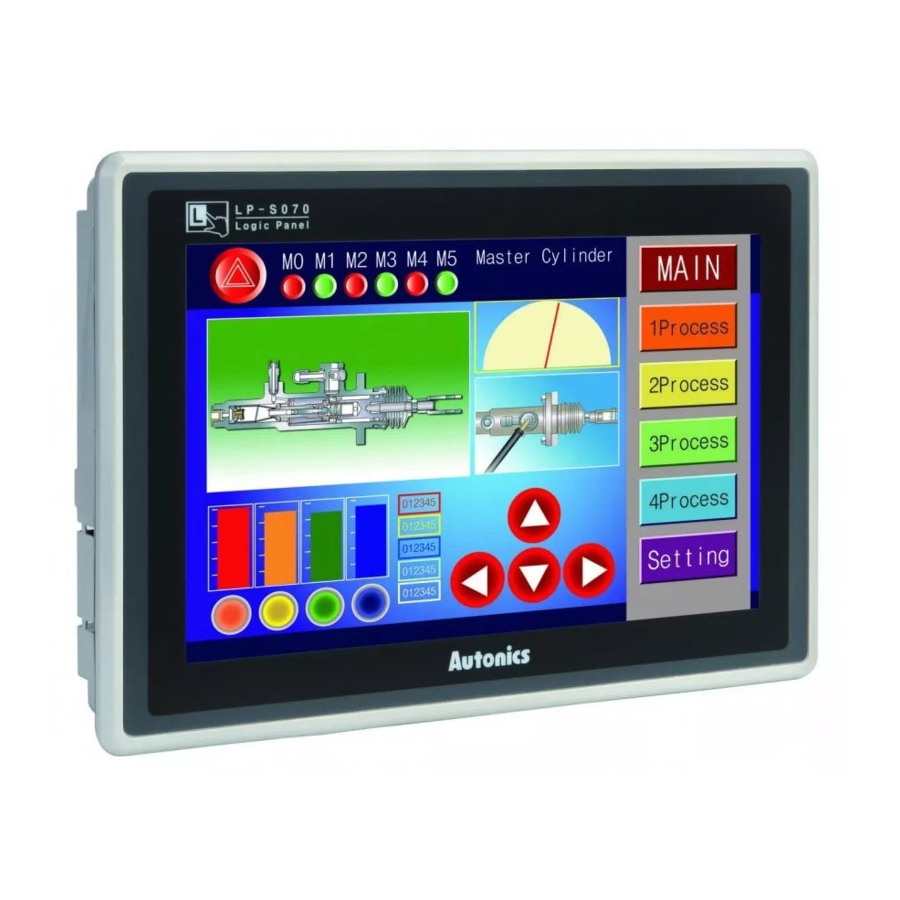

Autonics GP Series User Manual

Autonics GP Series User Manual

Hide thumbs Also See for GP Series:

Advertisement

Quick Links

User Manual
for Communication
HMI
GP/LP Series
(RS Automation(Samsung))
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics GP Series

  • Page 1 Communication GP/LP Series (RS Automation(Samsung)) Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 © Copyright Reserved Autonics Co., Ltd.
  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Considerations section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.
  • Page 4: User Manual Guide

    (www.autonics.com) to download a copy.  The manual’s content may vary depending on changes to the product’s software and other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through our website. ...
  • Page 5: User Manual Symbols

    Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature’s use. Annotation mark. ※1 © Copyright Reserved Autonics Co., Ltd.
  • Page 6: Reference Manual For Each Configuration

    GP-A Series User Manual, LP-A Series User Manual Hardware GP-S070 User Manual, GP-S044/057 User Manual, Manual S Series LP-S070 User Manual, LP-S044 User Manual Check connectable device, connection cable model name and protocol Communication Manual GP/LP Communication Manual © Copyright Reserved Autonics Co., Ltd.
  • Page 7: Table Of Contents

    2.1.1 Connection Support PLC Model ............. 21 2.1.2 Connectable GP/LP Model ..............21 2.1.3 System Organization ................22 2.1.4 Communication Cable ................22 2.1.5 Available Device ..................23 2.1.6 Monitorable Device in GP/LP ..............31 © Copyright Reserved Autonics Co., Ltd.
  • Page 8: Table Of Contents

    Table of Contents viii © Copyright Reserved Autonics Co., Ltd.
  • Page 9: System Organization

    1 System Organization System Organization GP/LP can be connected with various controller, barcode reader and printer via RS232C, RS422, Ethernet, CAN amd USB HOST port. © Copyright Reserved Autonics Co., Ltd.
  • Page 10: 1:1 Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.
  • Page 11: 1:N Communication Of Same Controllers

    The GP/LP observes the connected controllers or relays data between controllers. A GP/LP can communicate with the multiple of controller As. The controller has to be able to set address of each device, and the address should not be duplicated. © Copyright Reserved Autonics Co., Ltd.
  • Page 12 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.
  • Page 13: 1:N Communication Of Different Controllers

    RS232C or RS232C-B port, GP/LP-A104 Link device※1 communication available Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.
  • Page 14: 1:1:N Communication

    Link device multiple communication GP-S057 RS422/RS485 available Single direct communication available ※ 1 RS232C Link device single communication available CH1 or GP/LP-S070 Multiple direct communication available RS422/RS485 ※ 1 Link device multiple communication available © Copyright Reserved Autonics Co., Ltd.
  • Page 15 ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. (2) RS422 communication connection diagram © Copyright Reserved Autonics Co., Ltd.
  • Page 16: N:1:N Communication

    GP/LP-A104 Link device communication available ※1 Ethernet port, CAN port ※2 ※1: Please refer to ‘GP Editor User Manual’ for Link device instruction. ※2: Only Autonics’ ARD Series can be connected to CAN port. © Copyright Reserved Autonics Co., Ltd.
  • Page 17: Barcode Reader, Printer Communication

    Barcode reader ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070 GP/LP-A104 Barcode reader ○ ○ ○ ※RS232C/422 converter allows to opposite communication. © Copyright Reserved Autonics Co., Ltd.
  • Page 18 ○ GP/LP-S044, GP-S057 Printer ○ ○ Controller ○ ○ GP/LP-S070 Printer ○ ○ GP/LP-A Series  Communication port Connected Series device USB Host RS232C RS422 ※ ※ Controller ○ ○ GP/LP-A070, GP/LP-A104 Printer ○ © Copyright Reserved Autonics Co., Ltd.
  • Page 19 (3) Communication specification Item Specification Baud rate 300, 600, 1200, 3200, 4800, 9600, 19200, 38400, 57600 bps Data length 7, 8 bit Parity None, Odd, Even Stop bit 1, 2 bit Flow control DSR/DTR, XON/XOFF © Copyright Reserved Autonics Co., Ltd.
  • Page 20 1 System Organization © Copyright Reserved Autonics Co., Ltd.
  • Page 21: Communication Configuration By Devices

    ○ ○ ○ ○ ○ ○ ○ ○ Loader CPU direct × ○ ○ ○ ○ ○ ○ ○ ○ Loader CPU direct NX70 × ○ ○ ○ ○ ○ ○ ○ ○ Loader © Copyright Reserved Autonics Co., Ltd.
  • Page 22: System Organization

    RS Automation OEMax (Samsung) FARA Series executes RS232C commnication. If PLC has embeded RS422 loader port or you use RS232/422 converter, RS422 communication is also available. 2.1.4 Communication Cable (1) N70  Applied cable: C3M5P06-D9F0-D15M0 (2) N70plus, NX7, NX70  Applied cable: C3M5P07-D9F0-D9M0 © Copyright Reserved Autonics Co., Ltd.
  • Page 23: Available Device

    Bit address (Decimal) Bit address (Decimal) Word address (Decimal) None Word address (Decimal) None Word address (Decimal) None Word address (Decimal) None Word Word address (Decimal) Word address (Decimal) Word address (Decimal) Word address (Decimal) © Copyright Reserved Autonics Co., Ltd.
  • Page 24 Timer setting value [100ms] SV199 Timer setting value [1000ms] SV199 Counter current value [16 bit] EV200 EV255 Counter setting value [16 bit] SV200 SV255 Data register DT2047 File register FL22524 Special register DT9000 DT9255 Link register LD255 © Copyright Reserved Autonics Co., Ltd.
  • Page 25 Be sure that GP/LP does not use distinguisher, it uses virtual distinguisher cutting two digits from the backward of input bit R, M, K, F, L address. Bit R1 = R0.01 , bit M10 = M0.10 , bit K101 = K1.0 © Copyright Reserved Autonics Co., Ltd.
  • Page 26 Data register W2047 Special register SR511 ※1. Depending on CPU type, that range is fluid. In case of CPL9215A, the range is W0 to W2047. In case of CPL9216A, the range is W0 to W4095. © Copyright Reserved Autonics Co., Ltd.
  • Page 27 Be sure that GP/LP does not use distinguisher, it uses virtual distinguisher cutting two digits from the backward of input bit R, M, K, F, L address. Bit R1 = R0.01 , Bit M10 = M0.10 , Bit K101 = K1.0 © Copyright Reserved Autonics Co., Ltd.
  • Page 28 Data register Special register SR511 ※1. Depending on CPU type, that range is fluid. In case of CPL9215A, the range is W0 to W2047. In case of CPL9216A, the range is W0 to W4095. © Copyright Reserved Autonics Co., Ltd.
  • Page 29 Be sure that GP/LP does not use distinguisher, it uses virtual distinguisher cutting two digits from the backward of input bit R, M, K, F, L address. Bit R1 = R0.01 , Bit M10 = M0.10 , Bit K101 = K1.01 © Copyright Reserved Autonics Co., Ltd.
  • Page 30 DT9000 DT9255 Link register LD255 ※1. Depending on CPU type that range is fluid. In case of CPL9215A, the range is W0 to W2047. In case of CPL9216A, the range is W0 to W4095. © Copyright Reserved Autonics Co., Ltd.
  • Page 31: Monitorable Device In Gp/Lp

    Internal auxiliary relay Memory protection relay Special relay Timer/Counter current value Word Timer/Counter setting value Data/File/Special register 16 bit 32 bit type combining designated number Data/File/Special register of device and next number of device Special register © Copyright Reserved Autonics Co., Ltd.
  • Page 32 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice. MTA-GPLPC_RSAutomation(Samaung)-V1.0-1907US...
