3 Initial Commissioning

3.1 Safety Instructions

Attention: It is strictly necessary to read the General Notices contained under Item I at the beginning of
the operating instructions. Any not intended use of the device can lead to damage to this device.

3.2 Checking the Package Content for Completeness

•
SONO-VIEW
•
Terminal Block
•
USB Cable (Type A → Mini B)

3.3 Connection

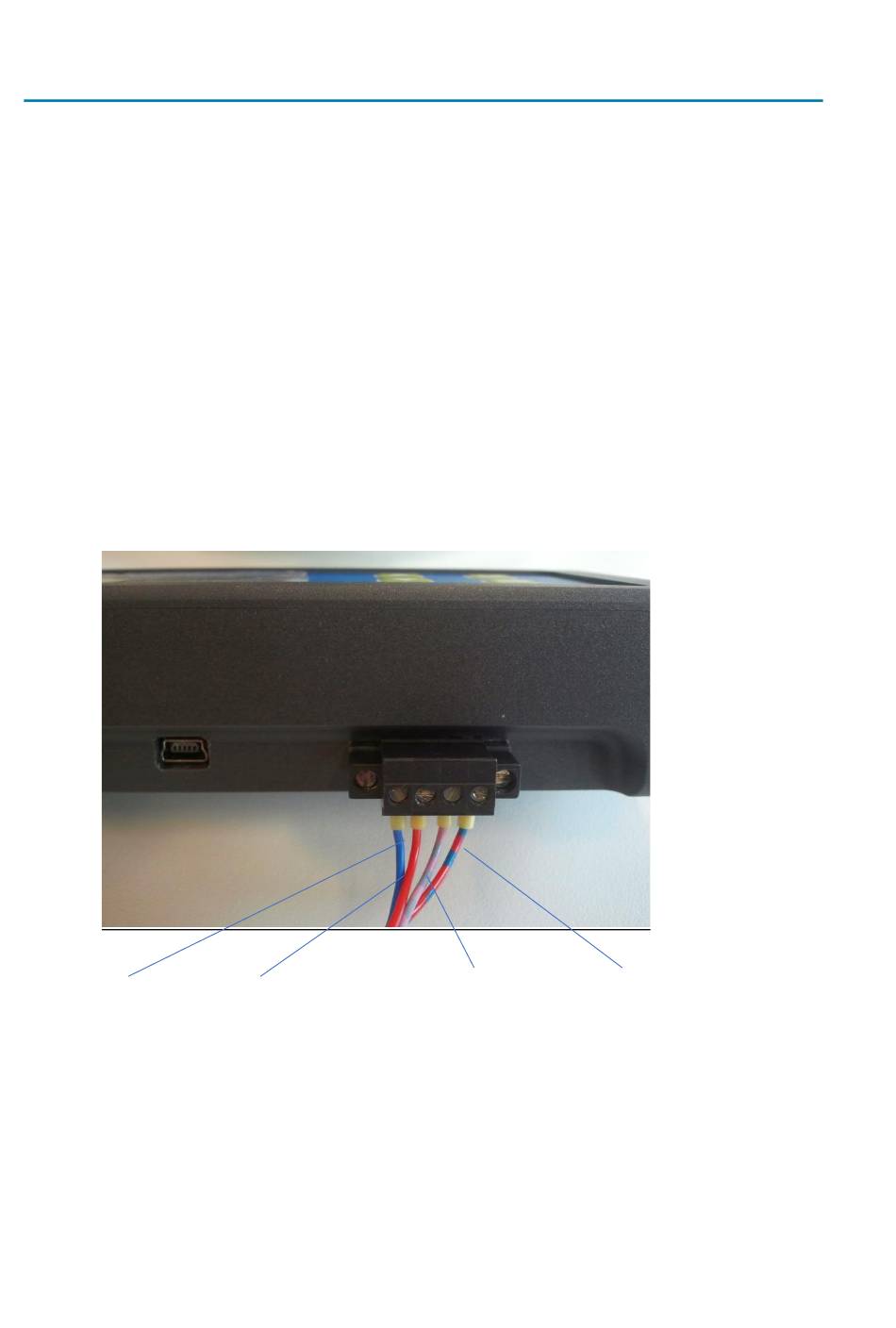

For operation, the SONO-VIEW requires a supply voltage of 7...24V (approx. 80..30mA). A joint ground
wire together with the probes is not required. For the connection with the probes, it is sufficient to merely
connect the two bus lines „RT"and „COM".
0V
NOTE:
The SONO-VIEW is suited for the display and configuration of up to four probes. Should more
than four probes be connected, an error message will be generated, and the device cannot
operate correctly.
6
+7..24V (RT) IMP-Bus (COM) IMP-Bus
