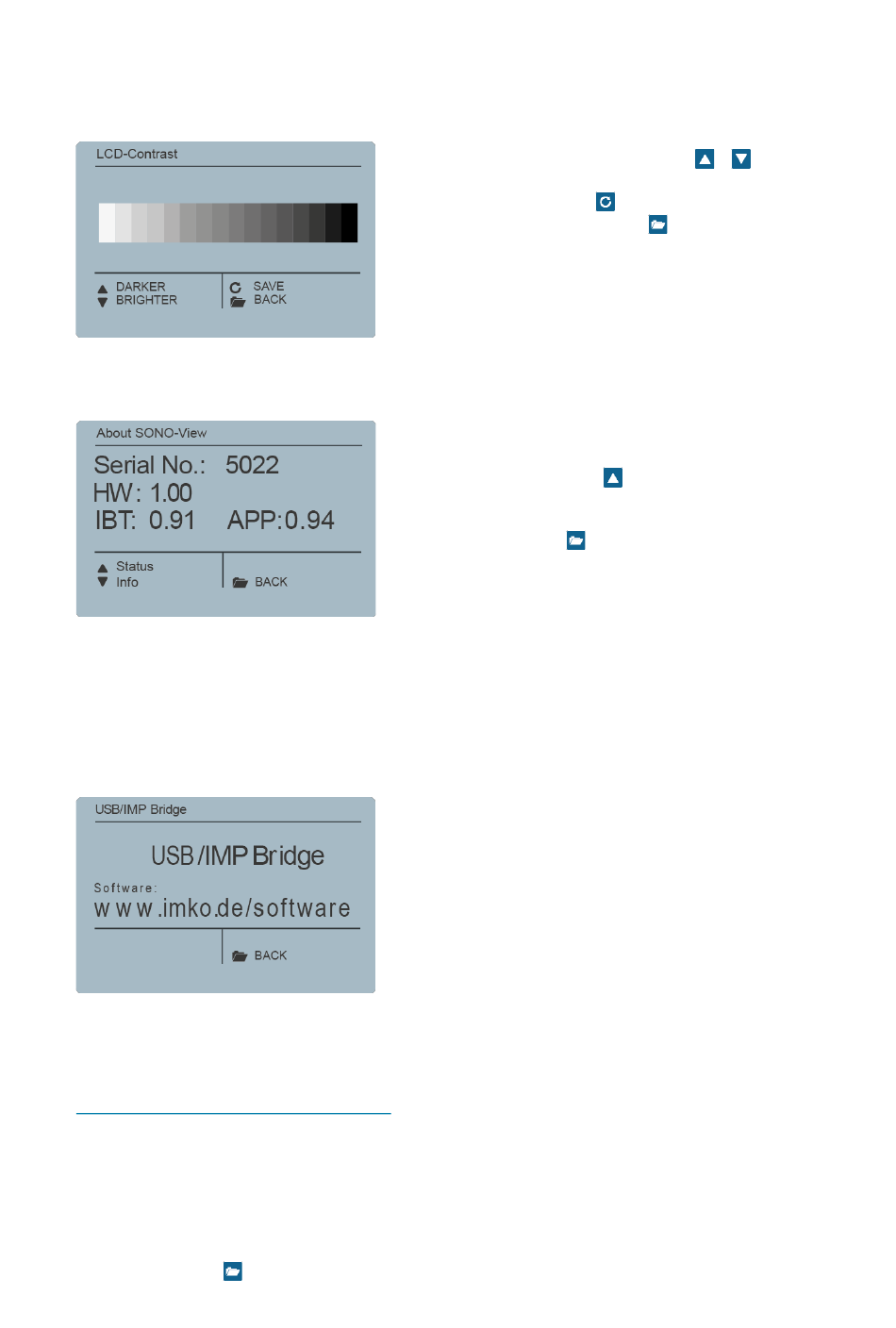

4.3.3 LCD Contrast

A bar containing a grey colour gradation will appear.

4.3.4 Info

4.3.5 USB/IMP-Bridge

As soon as this menu item is called up, the SONO-VIEW changes into a transparent data mode. All data
packets will be now redirected from the USB interface directly on to the IMP-bus and vice versa. This
enables a comfortable configuration of the probes via a connected PC without the necessity of additional
hardware. For this purpose, please download the free software „SonoConfig"as well as the respective
operating instructions available on the IMKO-homepage.
Connect the SONO-VIEW to the PC using the provided USB cable. The SONO-VIEW will connect with
the PC as a virtual serial interface (COM-Port). The respectively required driver is usually automatically
installed by all currently used Windows versions. Should the driver not be automatically installed, please
download the driver under:
http://www.ftdichip.com/Drivers/VCP.htm.
NOTE:
As long as the SONO-VIEW is in the USB-IMP-Bridge modus, no measurement values are queried
by the probe. The probes however continue to measure and issue the measurement value at the
analogue output.
Actuate the button
in order to exit the menu item „USB/IMP-Bridge".
Set the contrast using the buttons
that enables you to recognise all grades. Store the set
value with the button
Contrast", actuate the button
The device will present the serial number, the HW-
version, the IBT version, as well as the firmware version.
By actuating the button
status information such as the currently connected probes
and system voltage values. To exit the menu item „Info",
actuate the button .
/ in a manner
. To exit the menu item „LCD
.
, the device will present further
