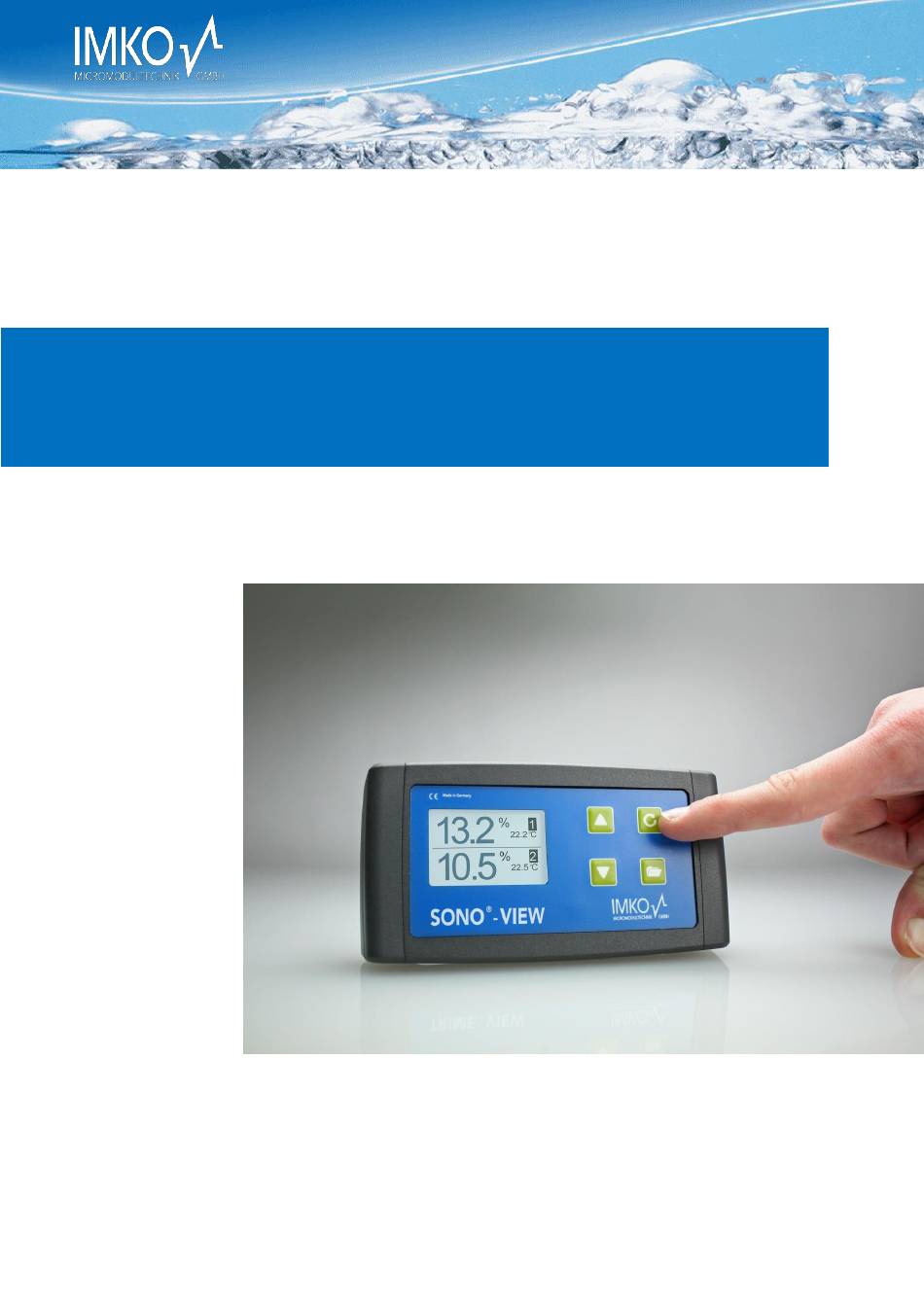

A total of up to 4 SONO probes can be monitored and the respective measurement values presented at the LCD via a serial interface. Thank you very much for your decision to purchase this IMKO product. Should you have any questions in respect to this product, please contact our local distribution partner or IMKO directly.
2017-05-24 Manual SONO-VIEW Version 3_1 Table of Content 1 General Notices ..........................5 Intended Use ..........................5 Control Elements / Connections ....................6 Control Elements ........................6 Connections ..........................6 Initial Commissioning ........................7 Safety Instructions .........................7 Checking the Package Content for Completeness ............7 Connection ..........................7 Exemplary Connections ....................8...
Page 4
Manual SONO-VIEW Version 3_1 2017-05-24 Page 4...
1.1 Intended Use This device was developed to serve as a display and configuration device for various IMKO probes. Only the respectively intended probes may be connected to the device. The connection of any probe which is not intended for the device, can lead to damage or the destruction of this device and/or the connected probe.
Manual SONO-VIEW Version 3_1 2017-05-24 Control Elements / Connections 2.1 Control Elements 2.2 Connections USB (Type-Mini B) -Supply Voltage -USB-IMP-Bridge -Bus-Interface -Firmware Update Page 6...
USB Cable (Type A Mini B) 3.3 Connection For operation, the SONO-VIEW requires a supply voltage of 7...24V (approx. 80..30mA). A joint ground wire together with the probes is not required. For the connection with the probes, it is sufficient to merely connect the two bus lines „RT“and „COM“.
Manual SONO-VIEW Version 3_1 2017-05-24 3.3.1 Exemplary Connections Example 1: Connection of the SONO-VIEW with two SONO probes and one joint voltage supply source. Example 2: Connection of the SONO-VIEW with 2 SONO-probes merely via IMP-bus. SONO-VIEW and the probes dispose of their voltage supply. This may be useful, if the distance between the measuring equipment and the display device is considerable.
After an instant, the serial numbers of all connected probes are listed in the display. In order to maintain the clarity within the administration of the probes, the SONO-VIEW operates on the basis of assigned probe numbers (1...4). These must be allocated to the detected serial numbers in the next step.
In the event that only one probe is connected, the calibrated radar run-time is also presented. If more than one probe is connected to the SONO-VIEW, there is an option to change the display. For this purpose, actuate the buttons .
Language Setting of the language Display Contrast Setting of the display contrast About SONO- Serial number and further information regarding your SONO-VIEW VIEW Info Support information USB-IMP-Bridge Enables the comfortable configuration of your probes via PC Set the desired setting using the buttons .
„About SONO-VIEW“, actuate the button 4.4.5 USB-IMP-Bridge As soon as this menu item is called up, the SONO-VIEW changes into a transparent data mode. All data packets will be now redirected from the USB interface directly on to the IMP- bus and vice versa.
„USB-IMP-Bridge“. Actuate the button 4.5 Probe Settings The SONO-VIEW offers the option to comprehensively configure the connected probes even without PC. Settings such as offset displacements or the selection of a material-specific calibration can be simply adjusted with the buttons The menu “Probe Settings”...
4.5.4 Averaging Mode This menu item enables the activation, respectively the changing of a measurement value establishment in the probe. IMKO moisture probes respectively offers the following options: Mode CS: (cyclic-successive) Without averaging function intended for very short measuring processes in a range limited to seconds (e.g. 5…20 seconds) at which up to 100...
2017-05-24 Manual SONO-VIEW Version 3_1 analogue output. The operating mode CS also serves for the collection of raw values without averaging and filter functions. Mode CA: (cyclic average filter) Standard averaging for relatively fast but continuous measurement processes with filtering and an accuracy of up to 0.1%.
Page 16
Manual SONO-VIEW Version 3_1 2017-05-24 Average Time Filter Upper Limit Offset CF - Cyclic Floating Filter Lower Limit Offset Upper Limit Keep Time Lower Limit Keep Time Moisture Threshold CC - Cyclic Cumulate No Material Delay Notice: Please respectively also read the further information contained in your probe operator manual.
2017-05-24 Manual SONO-VIEW Version 3_1 1.1.1 Material Calibration The "Material Calibration" menu item allows you to set a material-specific calibration stored in the probe. In addition, you have the possibility to carry out your own calibrations in order to be able to measure special materials.
Page 18
Manual SONO-VIEW Version 3_1 2017-05-24 1.1.1.2.1 1-Point Calibration With this material calibration option, a linear equation (f (x) = mx + b) is calculated with the dry density. So it is necessary to have the dry density of the measured material before activating this option.
Page 19
After starting the measurement with the key , the mean value of 10 measured tp values is formed. During this phase, the SONO-View does not respond to any input. After completion of the measurement, the tp mean value is displayed. Press the key...
Page 20
Manual SONO-VIEW Version 3_1 2017-05-24 In the last step, the calibration settings can be saved with "Save" to the previously selected calibration memory location, or can be canceled with "Discard". Note: After performing "Save", the original material calibration is preceded by an "OWN:", indicating that this is a specially prepared material calibration.
Page 21
2017-05-24 Manual SONO-VIEW Version 3_1 Subsequently, the percentage moisture value at the lower point of the material to be measured, must be set with the buttons. Press the button to accept the setting and press the button to move to the previous item.
Page 22
Manual SONO-VIEW Version 3_1 2017-05-24 Use the buttons to select between "Measure" and "Set". The corresponding sub-point is selected with the key and the key can be used to switch to the previous point. Measure: See point 1.1.1.2.1 1-Point Calibration(measure)
2017-05-24 Manual SONO-VIEW Version 3_1 1.1.2 Offset Adjustment For compensation of measurement deviations caused by e.g. density fluctuations in the material or by installation conditions, it is possible to linearly shift the measured value. This menu item is used for this purpose. You can move the measured value between -10 and +10 percentage points.
Manual SONO-VIEW Version 3_1 2017-05-24 Use the buttons to set the desired "Average Mode" and then set the mode as the default with the button . The setting is then stored in the probe. Press the button to exit the "Average Mode" menu item.
2017-05-24 Manual SONO-VIEW Version 3_1 The parameters are activated dynamically with setting the "Average parameter". Use the buttons to navigate between the individual parameters. The lower right area shows the current value of the selected parameter. To change the value, press the The value now appears in the display.
Manual SONO-VIEW Version 3_1 2017-05-24 Attention: In order to exclude the occurrence of a faulty air calibration, the sensor must be dry and free of any material during basic balancing. The notice „Please wait „will be generated in the display. The procedure lasts approximately 30 seconds.
Page 28
