Initial Commissioning

3.1

Safety Instructions

Attention:
It is strictly necessary to read the General Notices contained under Item 1 at the beginning of the operating
instructions. Any not intended use of the device can lead to damage to this device.
3.2

Checking the Package Content for Completeness

•
SONO-VIEW
•
Terminal Block
•
USB Cable (Type A → Mini B)
•
DIN rail
•
DIN rail holder
•
Manual

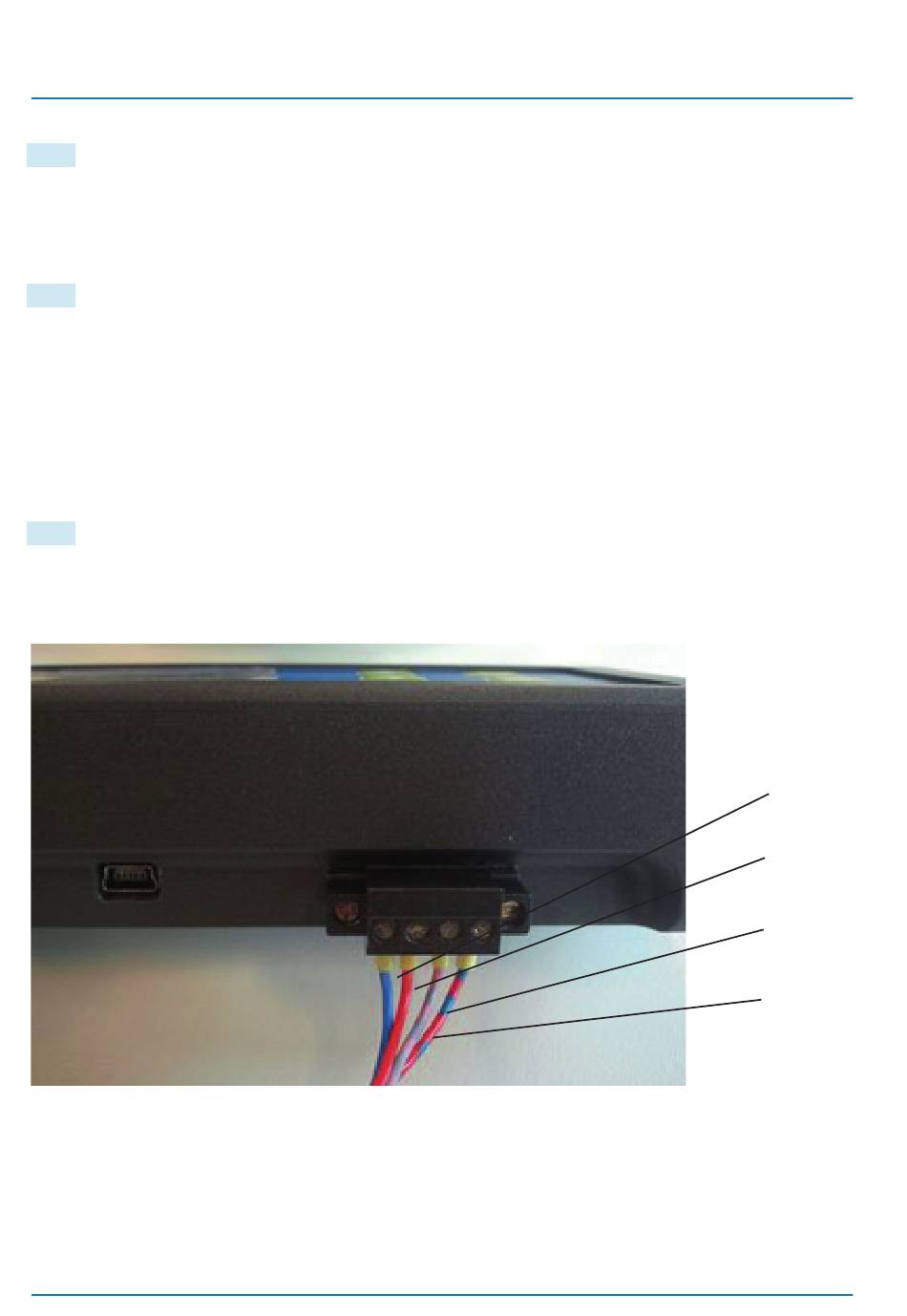

3.3

Connection

For operation, the SONO-VIEW requires a supply voltage of 12...24V (approx. 50..30mA). A joint ground wire
together with the probes is required.
NOTE:
The SONO-VIEW is suited for the display and configuration of up to eight probes. Should more than eight
probes be connected, an error message will be generated, and the device cannot operate correctly.
6
0V
+12..24V
(RT)
IMP-Bus
(COM)
IMP-Bus
