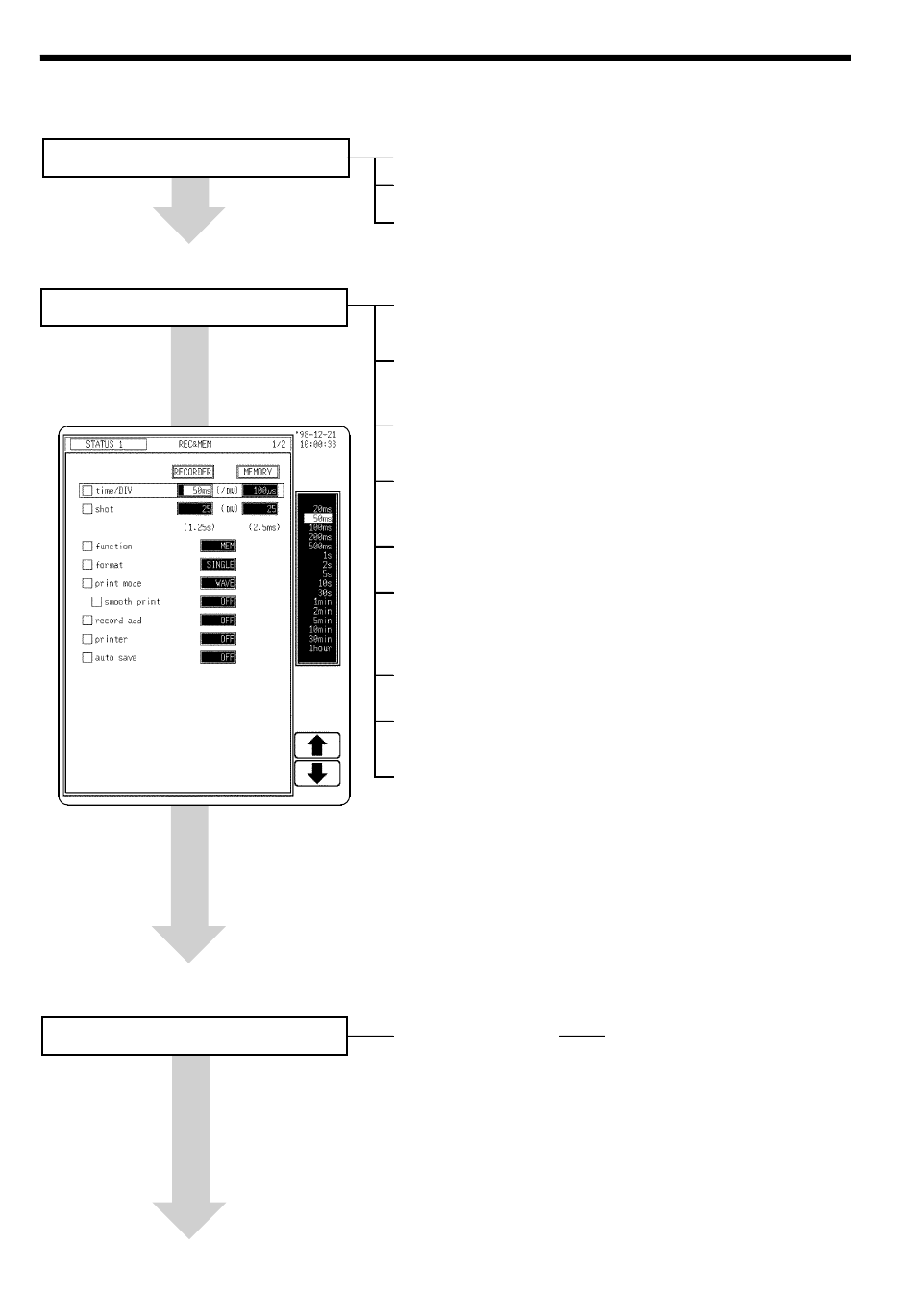

7.2 Operation Sequence (REC&MEM)
Preparation
Basic Settings
Settings on the STATUS1 screen
STATUS
Press the key to display
the STATUS screen.
Advanced Settings
(Use this function, if necessary.)
Settings on the STATUS2 screen
────────────────────────────────────────────────────
7.2 Operation Sequence (REC&MEM)
See Chapter 2
Function
See
Section 7.3
Time axis range
(Recorder/Memory
waveform setting)
Recording length
Display function
Display format
Print mode
(Waveform/
Numeric print)
Additional recording
Print function
Auto save function
Memory segmentation
Installation of the Unit
Turn on the power
Connect the inputs
Select the recorder and memory
function.
Determine the speed with which the
input signal waveform is captured.
Determine the length of the data
sample for a single measurement.
Select the waveform data
(recorder/memory) on the waveform
display screen.
Select the format type for the
waveform display screen.
Select the format, waveform, or
numerical value should be used to
output measured data and
calculation results.
Set whether additional recording is
required.
Select whether or not to print out
simultaneously with screen display.
Select whether or not to save the
waveform automatically after it is
captured.
See Section 15.1
Sequential save function
