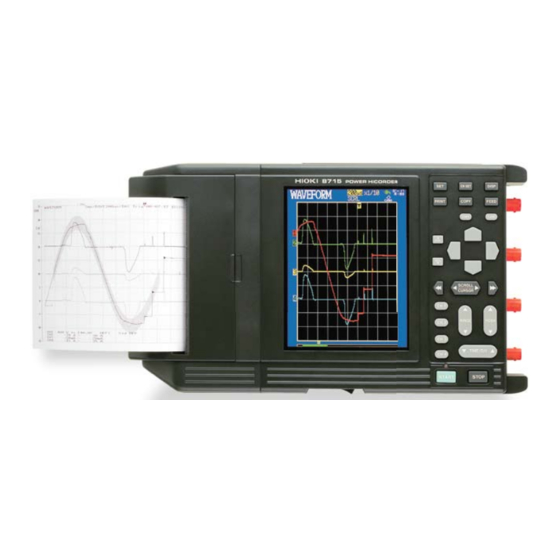

Introducing easy-to-use power monitoring recorders!

Do you ever worry about power failure?

POWER HiCORDER

See what you've been missing !

★ Capture Spikes, Sags, and Surges

★ Monitor and record power anomalies and fluctuations

easily, even unattended

★ Analyze Leakage Currents as well as AC/DC Current up

to 2000 amps

★ True-RMS with Trigger Function

★ 250µsec Transient Waveform Capture

8715

-01

Recorders

Need help?

Do you have a question about the POWER HiCORDER 8715-01 and is the answer not in the manual?

Page 1 Do you ever worry about power failure? 8715 POWER HiCORDER Recorders Introducing easy-to-use power monitoring recorders! See what you’ve been missing ! ★ Capture Spikes, Sags, and Surges ★ Monitor and record power anomalies and fluctuations easily, even unattended ★ Analyze Leakage Currents as well as AC/DC Current up to 2000 amps ★...
Page 2 RMS Trend stored and recorded. Measurement Mode (RMS 5. High quality data printouts on site. recorder & memory). 8. HIOKI clamp-on probes (voltage- output type) can be directly connected. Example To monitor the current waveform on a 220 V power line.
Page 3 - Specifications - Basic Specifications Waveform Measurement Mode (Power Waveform Observation) Waveform Measurement mode 200 and 400µs, 1, 2, 5, 10, and 20ms/division, time axis zoom (Power Waveform Observation) Measurement Mode Time axis RMS Trend Measurement mode ×2 to ×10; 3 settings, compression 1/2 to 1/50; 5 settings (RMS Observation) Sampling period 1/80 of time axis ranges...
Page 4 9447 × 1 9018-50 × 4 9391 × 1 4-channels, with current measurement HIOKI (Shanghai) Sales & Trading Co., Ltd. : DISTRIBUTED BY 1608-1610 Shanghai Times Square Ofﬁ ce, 93 Huai Hai Zhong Road, Shanghai, P.R.China POSTCODE: 200021 TEL +86-21-6391-0090/0092 FAX +86-21-6391-0360 E-mail: info-sh@hioki.com.cn...
