Marlow Console Table
Assembly Instructions
14

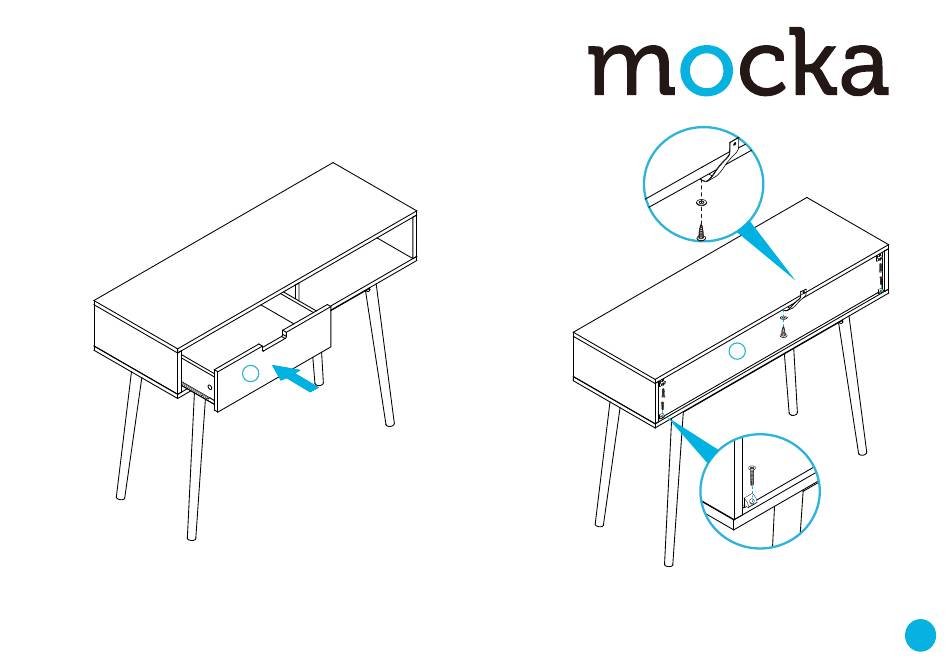

Insert the drawer into the unit as shown ensuring it slides smoothly
and easily along the rails.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
9
15
M
N
M
Attach 4x wedges (M) into the corners of the back of the unit and secure
with 4x screws (N). Tighten with a screwdriver. Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z) and
1x screw (W). Tighten with a screwdriver.
V
Z
W
M
N
V
M
Z
W
6
N
M
8
