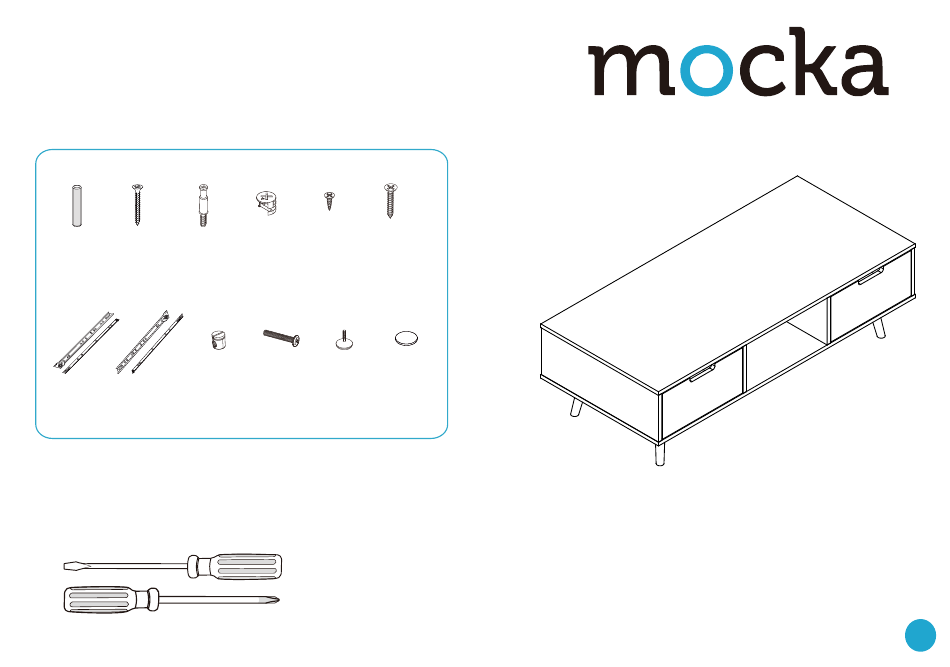

Marlow Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
x16
screw
x28
x28
G
H
L + R slide
nut
rail x4
Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
F
D
E
locking
small
screw
screw
x8
nut x28
x40
I
J
K
bolt
adjuster
felt pad
x4
x4
x1
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
* We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
L
x4
1
Advertisement
Table of Contents
Related Manuals for Mocka Marlow Coffee Table
Summary of Contents for Mocka Marlow Coffee Table
- Page 1 * We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 2x slide rails (G) to panels [3] and 2x slide rails (H) to panels [4] as shown and secure with 12x small screws (E). Tighten with a screwdriver. Repeat this step. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Slide panel [5] down along the grooves between the panels [4], and secure with 12x locking nuts (D). Tighten with a screwdriver. to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach the leg panels [6] and [7] together and secure with 4x with 12x long screws (B). Tighten with a screwdriver. bolts (J) and 4x nuts (I). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Apply 4x felt pads (L) to panels [6] as shown. Attach 1x support 8x screws (F). Tighten with a screwdriver. leg [8] to panel [2] and turn until firm. Insert the adjuster (K) into the support leg [8]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Secure with 4x small screws (E) the side panels [10] and [11] to form the base of the drawer. and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Insert the assembled drawers into the corresponding compartments as Once assembled lift furniture into place, do not drag. Ensure unit is shown. Ensure the drawers slide easily along the rails. balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
