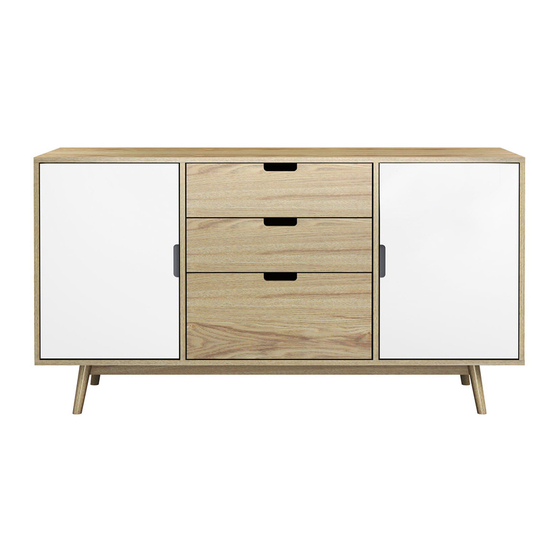

Marlow Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
locking
bolt
small
nut x23
screw x54
x23
K
L
M
slide
small
connector
rails x3
screw x8
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
mocka.co.nz | mocka.com.au
D
E
F
hinge
screw
long
long
x4
x25
screw x8
bolt x4
N
O
P
shelf
stopper
r/washer
plug x8
x2
screw x2

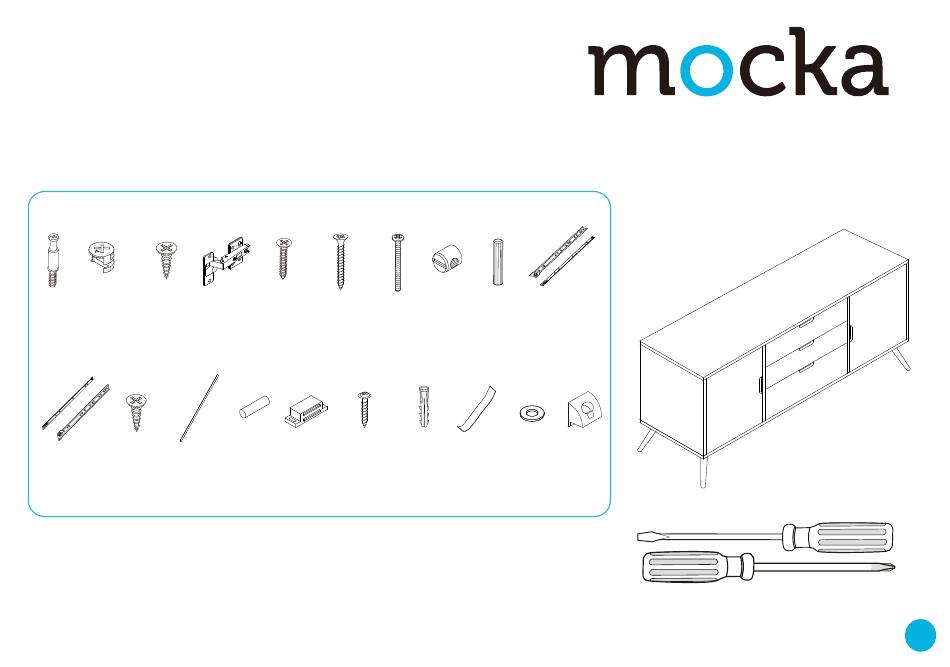

Hardware Supplied
H
G
I
J
nut
dowel
slide
x4
x16
rails x3
Q
R
S
wall
safety
washer
wedge
plug x2
strap x2
x2
*We recommend using a Flathead
screwdriver to tighten all locking nuts
100% before first use.
Please clear any loose wood from the
locking nut holes before inserting the nut
to ensure it locks 100%.
T
x4
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the use
of a power drill on a low-speed setting.
1
Advertisement
Related Manuals for Mocka Marlow Buffet
Summary of Contents for Mocka Marlow Buffet
- Page 1 Marlow Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. locking bolt small hinge screw long long dowel slide nut x23 screw x54 screw x8 bolt x4 rails x3 wall safety slide small...
- Page 2 Marlow Buffet Assembly Instructions Attach 3x slide rails (J) to panel [3] with 9x small screws (C). Attach 3x Attach 2x stoppers (O) to panel [1] and secure with 4x small screws (L). slide rails (K) to panel [4] with 9x small screws (C). Tighten with a Tighten with a screwdriver.
- Page 3 Marlow Buffet Assembly Instructions Attach panels [11] to the ends of panels [12] and secure using 4x long Attach panels [2], [3], [4] and [5] to the bolts in panel [1] using 8x dowels bolts (G) and 4x nuts (H). Tighten with a screwdriver.
- Page 4 Marlow Buffet Assembly Instructions Insert connector (M) to join panels [7]. Slide panels [6] and [7] between the grooves of panels [2], [3], [4] and [5] to form the back of the unit, as shown. mocka.co.nz | mocka.com.au...
- Page 5 Marlow Buffet Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers x 2 Insert 8x dowels (I) into the ends of panels [2], [3], [4] and [5]. Attach Insert 5x bolts (A) into panel [17].Tighten with a screwdriver. panel [10] and secure with 8x screws (E). Tighten with a screwdriver.
- Page 6 Marlow Buffet Assembly Instructions Drawers x 2 Drawers x 2 Attach panel [14],[15] and [22] to front panel [17] using 5x locking Slide panel [16] along the grooves between the side panels [14] nuts (B). Tighten with a screwdriver. and [15] to form the base of the drawer.
- Page 7 Marlow Buffet Assembly Instructions Drawers x 2 Drawers x 2 Attach panels [14], [15] and [13] as shown using 5x screws (E). Attach slide rail (K) and slide rail (J) to the underside of the side panels Tighten with a screwdriver.
- Page 8 Marlow Buffet Assembly Instructions Drawer x 1 Drawer x 1 Insert 5x bolts (A) into panel [21].Tighten with a screwdriver. Attach panel [19],[20] and [22] to front panel [21] using 5x locking nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 9 Marlow Buffet Assembly Instructions Drawer x 1 Drawer x 1 Slide panel [16] along the grooves between the side panels [19] and Attach panels [18], [19] and [20] as shown using 5x screws (E). [20] to form the base of the drawer.
- Page 10 Marlow Buffet Assembly Instructions Drawer x 1 Attach slide rail (K) and slide rail (J) to the underside of the side panels Attach the leg panels [11] and [12] to the base of the cabinet [10] and as shown. Secure with 4x screws (C) and tighten with a screwdriver.
- Page 11 Marlow Buffet Assembly Instructions Insert 8x shelf plugs (N) into the end cavities of the cabinet as shown. Attach door panels [9] to the cabinet using 4x hinges (D) and 24x small Insert the shelf panels [8] and balance on top of the plugs. Now insert screws (C) as shown.
- Page 12 Marlow Buffet Assembly Instructions Wall Strap Attach 4x wedges (T) to the corners of the back panels [6] as shown, and Once assembled lift furniture into place, do not drag. Secure the bottom secure with 4x small screws (L). Tighten with a screwdriver.
