Marlow Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
x8
screw
x28
x6
I
J
H
L + R slide
screw
x8
rail x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
F
D
E
locking
small
screw
screw
x24
nut x28
x40
K
L
M
bolt
nut
felt pad
screw
x4
x4
x4

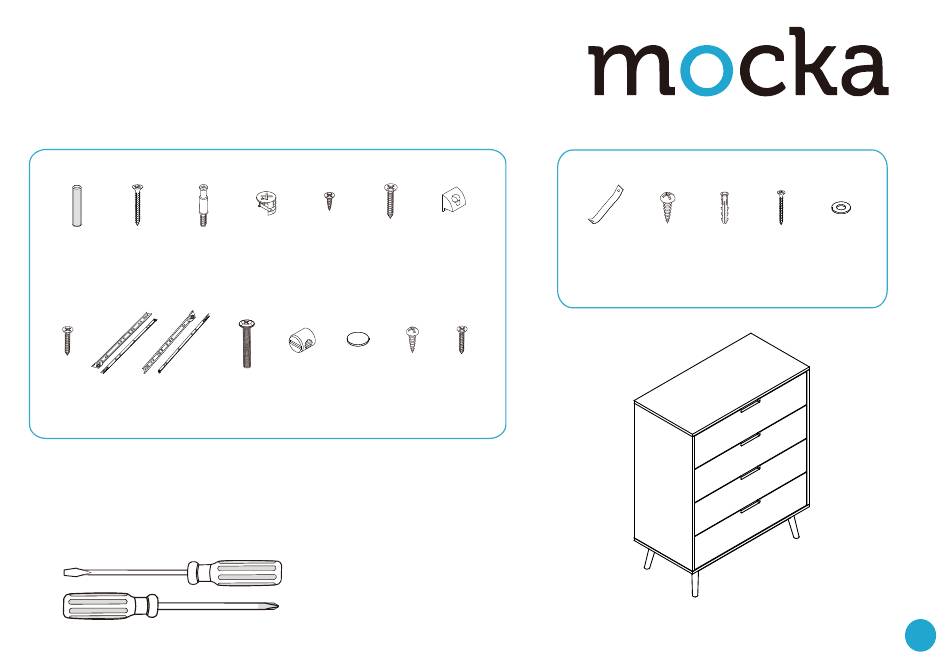

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
* We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
G
wedge
strap x2
x8
N
O
screw
x8
x2
V
W
X
safety
screw
wall
x2
anchor
screw
x2
Wall Strap
Y
Z
wall
washer
x4
x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Marlow Four Drawer
Summary of Contents for Mocka Marlow Four Drawer
- Page 1 * We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 4x slide rails (I) to panel [3] and 4x slide rails (J) to panel [4] as shown, and secure with 24x small screws (E). Insert 4x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panel [4] to panels [5], [6] and [7] and secure with 4x screws (N) panel [7] to panel [3] and secure with 2x locking nuts (D). and 2x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [2] to panels [3] and [4] with 4x dowels (A) and secure to form the back of the unit as shown. with 4x screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [9] and [10] to panel [2] and secure with 6x long screws (B). and 4x nuts (L). Tighten with a screwdriver. Apply 4x felt Tighten with a screwdriver. pads (M) to panels [9] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [1] to the unit with 4x dowels (A) and secure with 4x to form the back of the unit as shown . locking nuts (D) and 2x screws (O). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Insert 5x bolts (C) into panels [11]/[17], and tighten with a screwdriver. Attach panels [12], [13] and [16] to panels [11]/[17] and secure with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Slide panel [14] along the grooves between the panels [12] and [13] Attach panels [12], [13], [15] and [16] as shown using 5x screws (F). to form the base of the drawer. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Insert the assembled drawers into the corresponding compartments as as shown. Secure with 4x small screws (E) and tighten with a screwdriver. shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 2x washers (Z), 2x wall anchors (X) and 2x wall screws (Y). 2x screws (W). Tighten with a screwdriver. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
